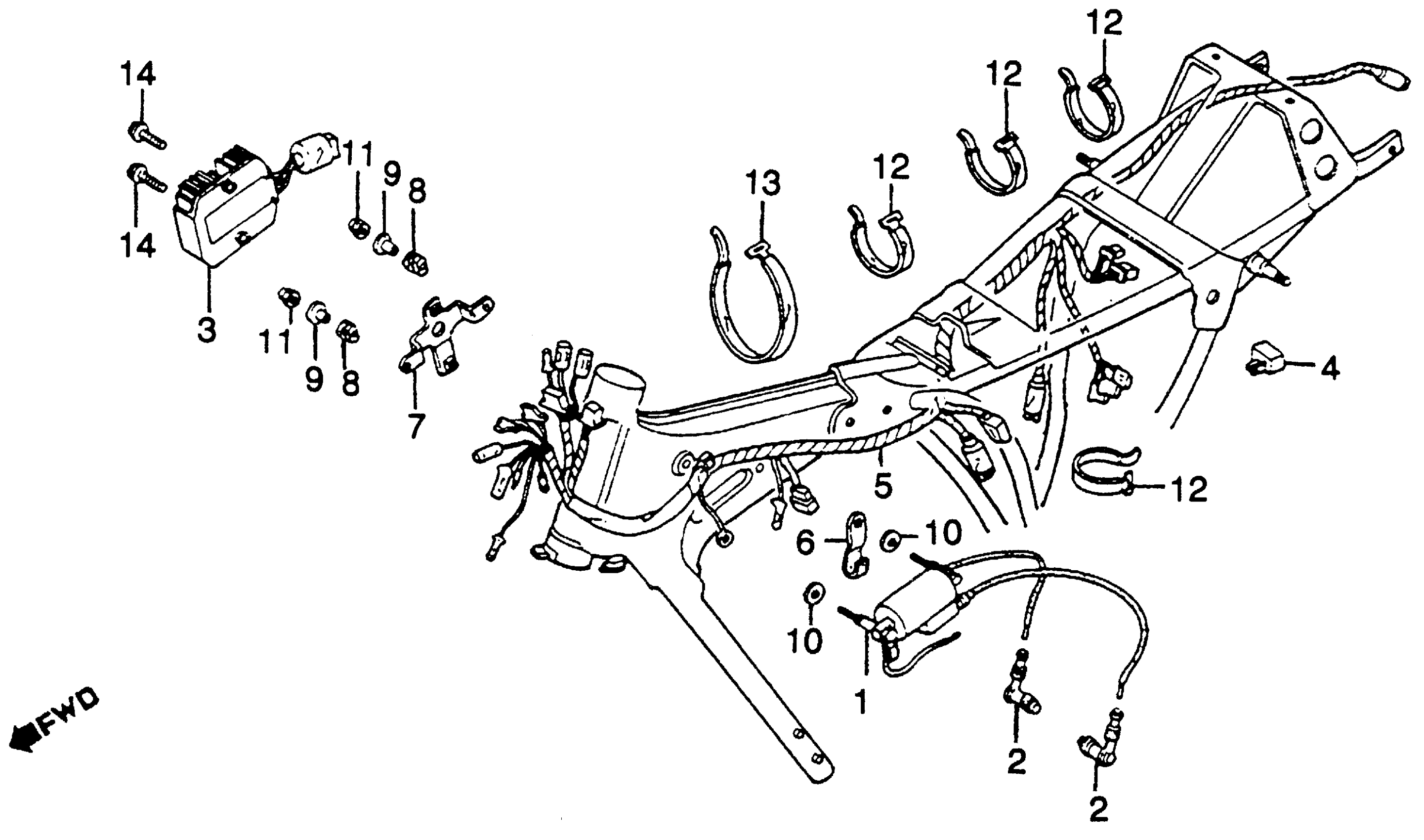

Honda CM250CAC (83) 250 CUSTOM, JPN, VIN# JH2MC061-DK100005 TO JH2MC061-DK100655 WIRE HARNESS + IGNITION COIL Diagram

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-KB4-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KB4-000.

30700-KE2-942

$17.87

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KB4-010.

30700-KE2-942

$17.87

CAP, SPARK PLUG

30700-KE2-942

$17.87

RECTIFIER ASSY., REGULATOR This part replaces 31600-KB4-000.

31600-KC2-405

Unavailable

RECTIFIER ASSY., REGULATOR

31600-KC2-405

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-KB4-000

Unavailable

CLIP B, CABLE HARNESS (NOT AVAILABLE)

32811-413-000

Unavailable

STAY, REGULATOR

50132-KB4-000

Unavailable

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

COLLAR C6.3, SETTING

80109-367-690

$4.94

WASHER, FR. COVER SETTING

90501-124-000

$3.74

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A3, CABLE

95014-61300

$1.97

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49
