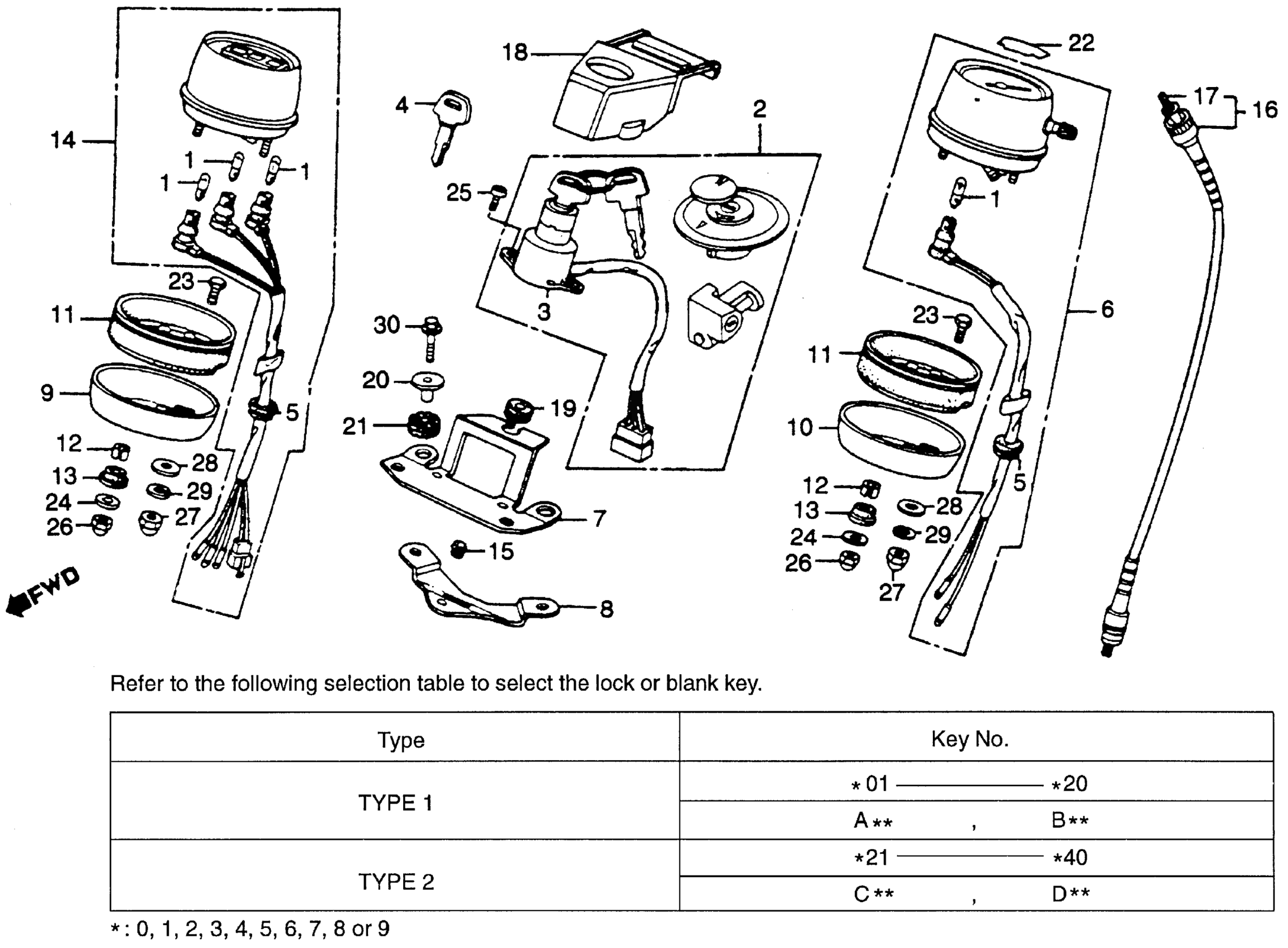

Honda CM250CAC (83) 250 CUSTOM, JPN, VIN# JH2MC061-DK100005 TO JH2MC061-DK100655 SPEEDOMETER + KEY SET Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

LOCK SET

35010-KB4-790

Unavailable

3

SWITCH ASSY., COMBINATION This part replaces 35100-465-770.

35100-465-771

Unavailable

3

SWITCH ASSY., COMBINATION

35100-465-771

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

4

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

5

GROMMET, WIRE (NOT AVAILABLE)

37115-453-000

Unavailable

6

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-KB4-671

Unavailable

7

PLATE, METER SETTING

37211-KB4-008

Unavailable

8

STAY, METER SETTING (NOT AVAILABLE)

37212-KB4-000

Unavailable

9

RING, R. METER SETTING

37212-447-000

$39.25

10

RING, L. METER SETTING

37213-447-000

$38.89

11

RUBBER, METER

37242-323-701

$17.26

12

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

13

RUBBER, METER SETTING

37244-307-670

$2.67

14

INDICATOR ASSY. This part replaces 37650-KB4-671.

37650-KW4-601

Unavailable

14

INDICATOR ASSY. This part replaces 37650-KW4-600.

37650-KW4-601

Unavailable

14

INDICATOR ASSY.

37650-KW4-601

Unavailable

15

PLUG, CHAIN GUARD

40514-333-000

$2.57

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-KB4-000.

44830-MG7-000

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-KF0-000.

44830-MG7-000

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-MG2-000.

44830-MG7-000

Unavailable

16

CABLE ASSY., SPEEDOMETER

44830-MG7-000

Unavailable

17

CABLE, SPEEDOMETER (INNER)

44831-KB4-000

Unavailable

18

COVER, IGNITION This part replaces 53132-KB4-670.

53132-KC2-680

Unavailable

18

COVER, IGNITION

53132-KC2-680

Unavailable

19

GROMMET, IGNITION COVER

53133-KB4-000

$2.26

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

COLLAR, RR. FENDER

61105-428-000

Unavailable

21

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

22

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

23

BOLT, METER SETTING

90159-356-000

$4.58

24

WASHER (6.5X18)

90545-323-700

$1.89

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

NUT, CAP (6MM)

94021-06020

$1.73

27

NUT, CAP (8MM)

94021-08020-0S

$1.82

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, SPRING (8MM)

94111-08000

$1.49

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

30

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
