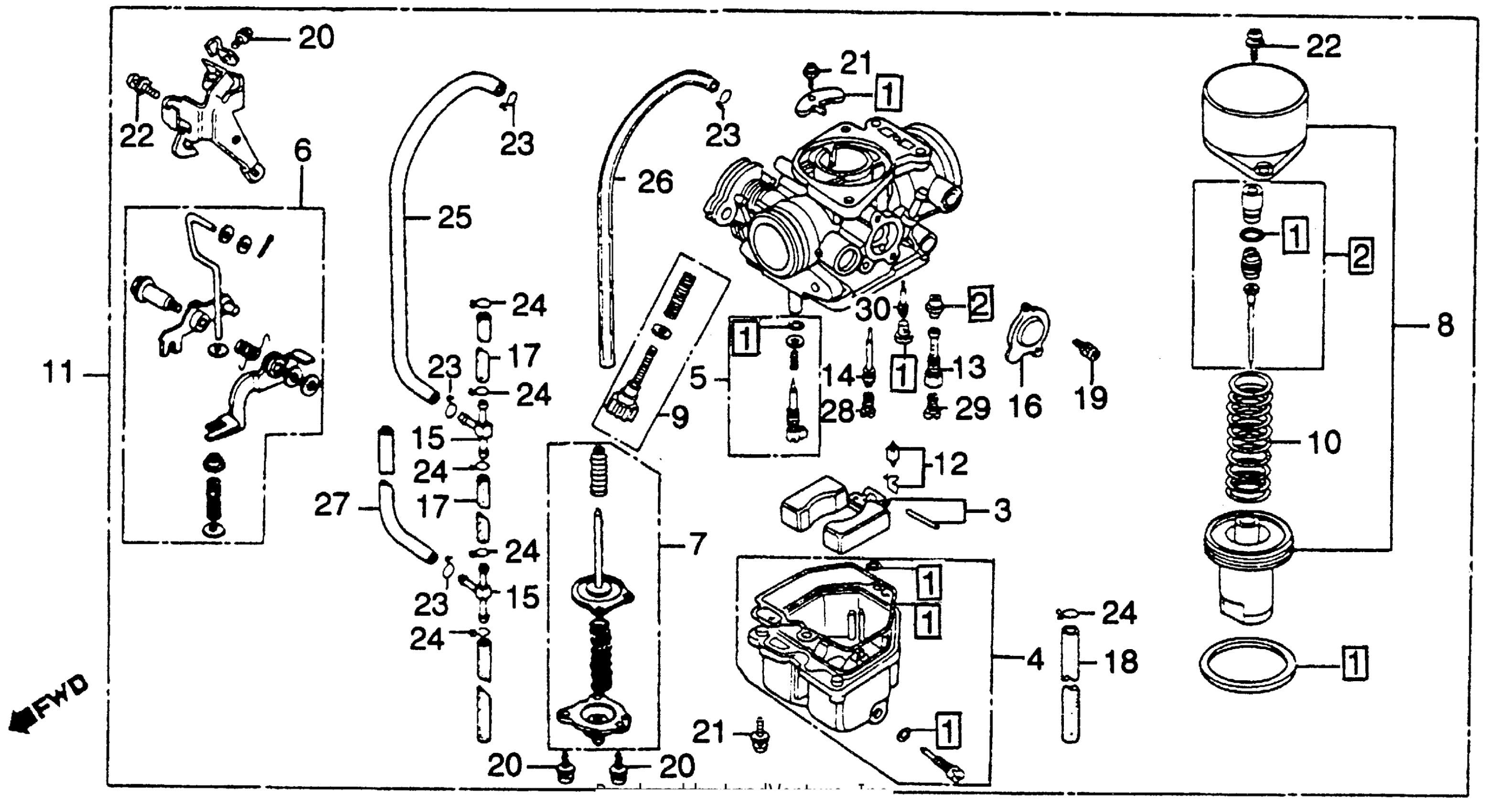

Honda CM250CAC (83) 250 CUSTOM, JPN, VIN# JH2MC061-DK100005 TO JH2MC061-DK100655 CARBURETOR 83 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-KB4-711.

16010-413-405

$57.50

1

GASKET SET This part replaces 16010-KB4-771.

16010-413-405

$57.50

1

GASKET SET

16010-413-405

$57.50

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-KB4-771

Unavailable

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-MC8-671

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-438-671

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-460-771.

16044-469-004

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16044-469-004

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

10

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-443-701

Unavailable

11

CARBURETOR ASSY. This part replaces 16100-KB4-791.

16100-KB4-792

Unavailable

12

VALVE, FLOAT

16155-413-751

$32.50

13

HOLDER, NEEDLE JET

16165-KB4-711

Unavailable

14

NOZZLE, MAIN (NOT AVAILABLE)

16166-KB4-671

Unavailable

15

T-JOINT (NOT AVAILABLE)

16180-KB4-791

Unavailable

16

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

17

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

17

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$3.10

18

TUBE, OVERFLOW (NOT AVAILABLE)

16199-428-771

Unavailable

19

SCREW-WASHER (4X8)

93892-04008-00

$1.49

19

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

20

SCREW-WASHER (4X12)

93892-04012-00

$1.49

20

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

21

SCREW-WASHER (4X16)

93892-04016-00

$1.49

21

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

22

SCREW-WASHER (5X16)

93892-05016-00

$1.49

22

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$1.49

23

CLIP, TUBE (B8)

95002-02080

$1.80

24

CLIP, TUBE (B6.5)

95002-02650

$1.49

25

BULK HOSE, VINYL (4.5X8X1000)

95003-09001-60M

$3.45

27

BULK HOSE, VINYL (4.5X8X1000)

95003-09001-60M

$3.45

28

JET, PRIMARY MAIN (#68)

99101-393-0680

$11.52

29

JET, MAIN (#138) This part replaces 99101-393-1380.

99101-KPE-1380

$12.72

29

JET, MAIN (#138) This part replaces 99102-393-1380.

99101-KPE-1380

$12.72

30

JET, SLOW (#35)

99103-420-0350

$11.26
