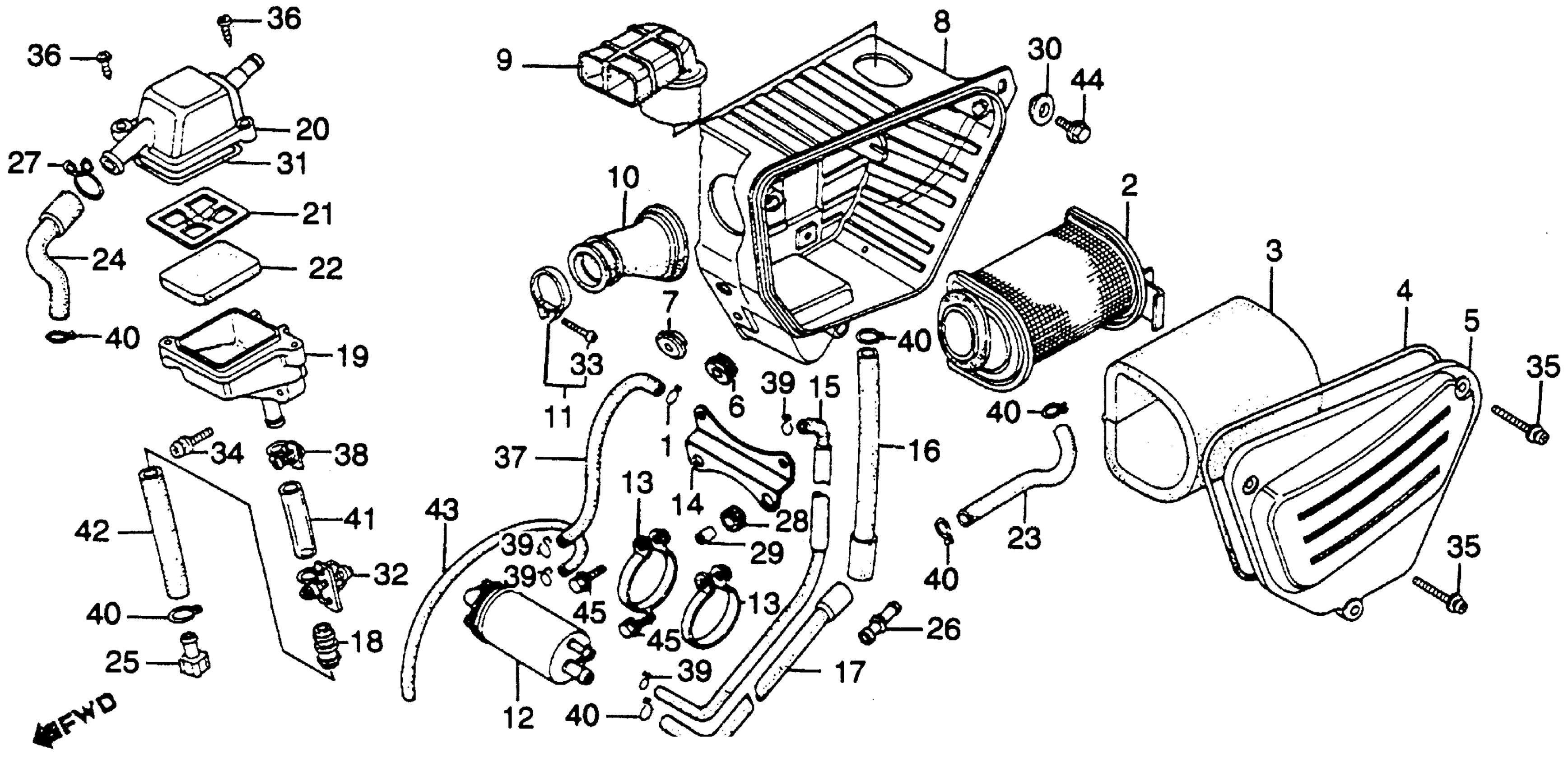

Honda CM250CAC (83) 250 CUSTOM, JPN, VIN# JH2MC061-DK100005 TO JH2MC061-DK100655 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

HOLDER, ELEMENT (NOT AVAILABLE) This part replaces 17210-471-760.

17210-471-761

Unavailable

2

HOLDER, ELEMENT (NOT AVAILABLE)

17210-471-761

Unavailable

3

ELEMENT, AIR CLEANER This part replaces 17213-471-000.

17213-471-010

$13.00

3

ELEMENT, AIR CLEANER

17213-471-010

$13.00

4

SEAL, AIR CLEANER HOUSING COVER

17219-KB4-000

$9.77

5

COVER, AIR CLEANER HOUSING

17220-KBG-000

$54.43

5

COVER, AIR CLEANER HOUSING This part replaces 17220-KB4-000.

17220-KBG-000

$54.43

6

GROMMET, TUBE

17225-KB4-790

Unavailable

7

GROMMET, TUBE

17225-415-300

$4.75

8

HOUSING, AIR CLEANER

17230-KB4-790

Unavailable

9

DUCT, AIR CLEANER

17240-KB4-000

$32.52

10

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-KB4-000

Unavailable

11

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17255-422-000.

95018-60250

$6.25

11

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$6.25

11

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

12

CANISTER ASSY. (50)

17300-KB4-791

Unavailable

13

BAND, CANISTER

17305-KB4-790

Unavailable

14

STAY, CANISTER

17310-KB4-790

Unavailable

15

TUBE, PURGE (NOT AVAILABLE)

17320-KB4-790

Unavailable

16

TUBE, DRAIN

17336-KB4-000

$10.82

17

TUBE (NOT AVAILABLE)

17336-KB4-790

Unavailable

18

JOINT, BREATHER TUBE

17359-419-670

$1.95

19

CHAMBER, BREATHER

17361-471-760

$15.31

20

COVER, BREATHER CHAMBER (NOT AVAILABLE)

17362-471-760

Unavailable

21

PLATE, FILTER SETTING

17363-471-760

Unavailable

22

FILTER, BREATHER CHAMBER

17364-471-760

Unavailable

23

TUBE, BREATHER JOINT

17365-471-760

Unavailable

24

TUBE, BREATHER

17368-KB4-670

Unavailable

25

PLUG, BREATHER TUBE

17370-419-700

$3.74

26

JOINT, BREATHER TUBE (NOT AVAILABLE)

17402-415-000

Unavailable

27

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

28

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

29

COLLAR, RR. FENDER

84705-310-000

$1.72

30

WASHER (6X20)

90512-300-000

$3.08

31

SEAL, BREATHER CHAMBER

91305-KB4-670

$5.33

32

CLIP, TUBE (NOT AVAILABLE)

91462-393-780

Unavailable

33

SCREW, PAN (4X25)

93500-04025-0G

$1.49

34

SCREW-WASHER (6X28)

93891-06028-07

$1.49

35

SCREW-WASHER (6X35)

93891-06035-07

$1.49

36

SCREW, TAPPING (5X20)

93901-35480

$1.49

37

BULK HOSE, FUEL (3.5X3000) (3.5X350)

95001-35003-60M

$20.85

38

CLIP, TUBE (A12)

95002-01120

$2.75

39

CLIP, TUBE (B8)

95002-02080

$1.80

40

CLIP, TUBE (B12.5)

95002-02130

$1.49

41

BULK HOSE, VINYL (8X12X8000) (8X12X60)

95003-23008-60M

Unavailable

42

BULK HOSE, VACUUM (8X1000) (8X160)

95005-80001-20M

$23.91

43

BULK HOSE, VACUUM (8X1000) (8X600)

95005-80001-20M

$23.91

44

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

44

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

45

BOLT, FLANGE (6X18) This part replaces 95700-06018-07.

95701-06018-07

$1.55

45

BOLT, FLANGE (6X18)

95701-06018-07

$1.55
