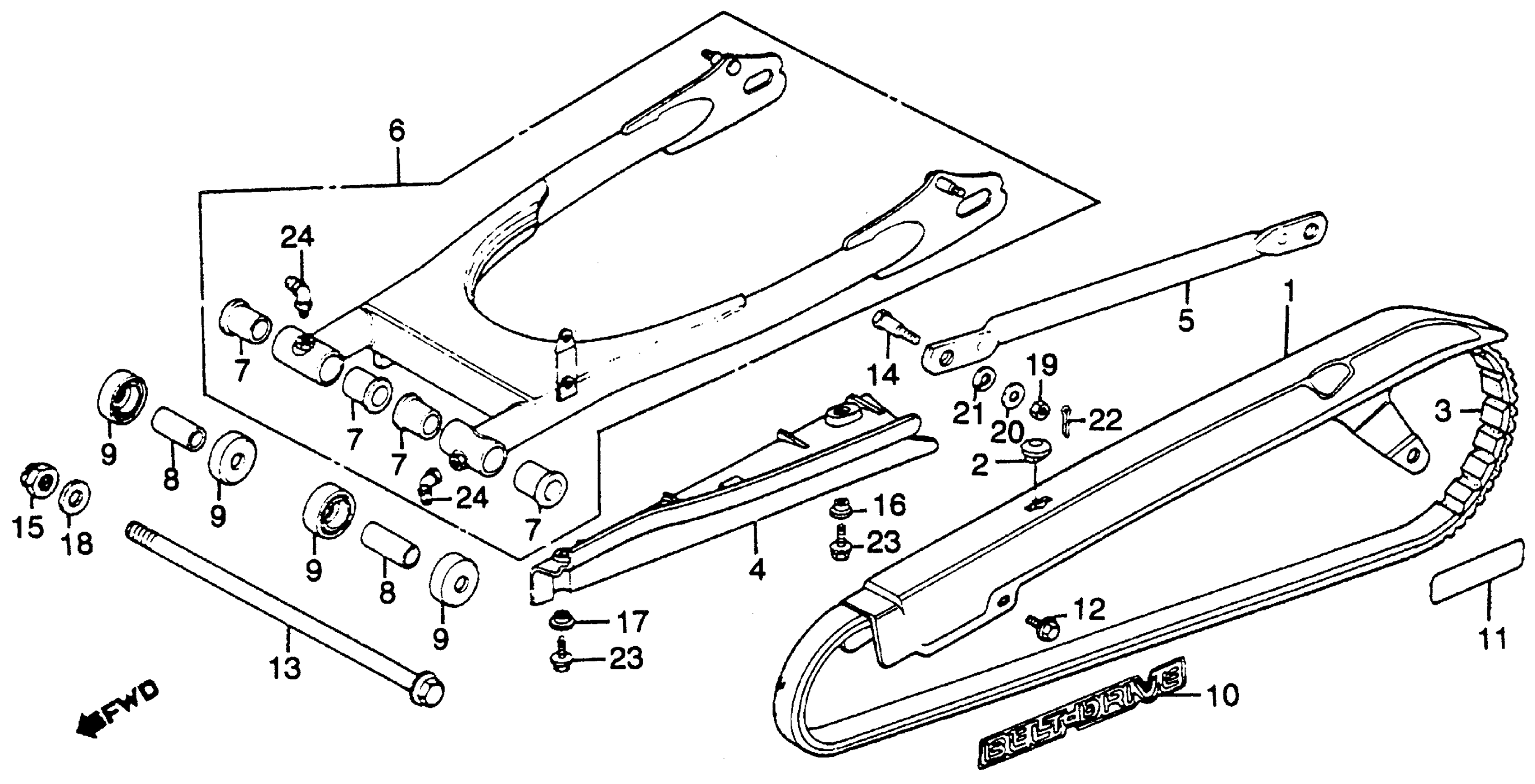

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 SWINGARM + CHAIN CASE 83 Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-KB4-000

Unavailable

1

CASE, DRIVE CHAIN This part replaces 40510-KB4-770.

40510-KB4-000

Unavailable

2

PLUG, CHAIN CASE

40511-KB4-770

Unavailable

3

BELT, DRIVE

40530-KB4-773

Unavailable

4

PROTECTOR, DRIVE BELT

40610-KB4-770

Unavailable

5

ARM, RR. BRAKE STOPPER

43431-KB4-000

Unavailable

6

SWINGARM ASSY., RR.

52000-KB4-770

Unavailable

7

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$19.38

7

BUSH, SWINGARM

52109-KC1-003

$19.38

8

COLLAR, R. SWINGARM This part replaces 52141-356-000.

52141-356-010

$86.90

8

COLLAR, R. SWINGARM

52141-356-010

$86.90

9

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

10

EMBLEM, CHAIN CASE (NOT AVAILABLE)

87125-KB4-770

Unavailable

11

MARK, DRIVE BELT CAUTION

87509-KB4-770

Unavailable

12

BOLT-WASHER (6X6)

90118-383-000

Unavailable

13

BOLT, RR. SWINGARM PIVOT

90121-KB4-000

$42.84

14

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

15

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

15

NUT, AXLE (14MM)

90305-197-013

$6.14

16

WASHER, RR. COVER

90506-425-000

$2.89

17

WASHER A, RR. FENDER

90513-460-840

Unavailable

18

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49

22

PIN, COTTER (2.0X15)

94201-20150

$1.49

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

24

FITTING, GREASE (B.76S)

96201-80000

$2.56
