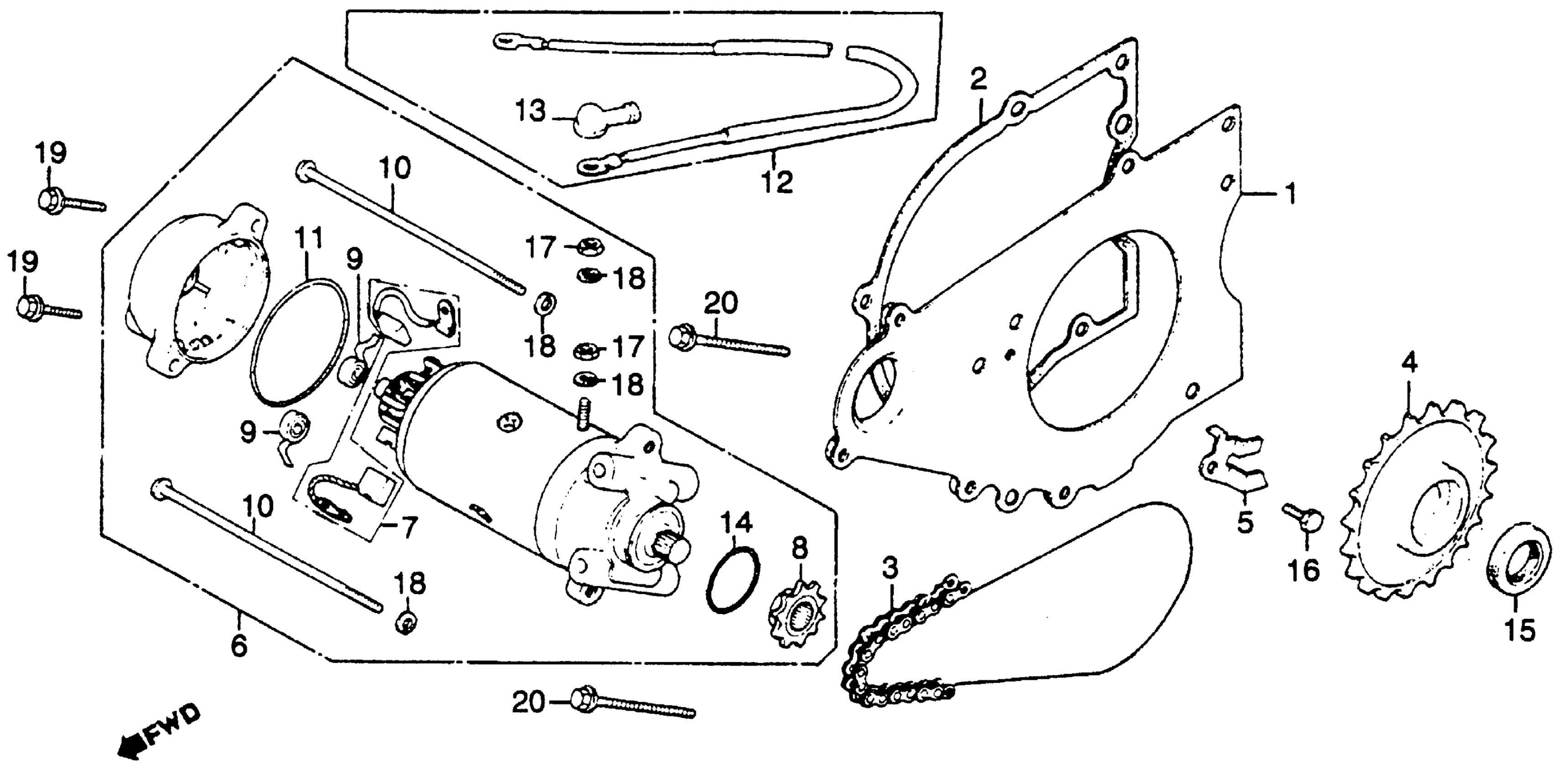

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 STARTER MOTOR Diagram

#

Description
Price

1

SPACER, L. SIDE

11371-KB4-670

$95.03

2

GASKET, L. This part replaces 11394-KBG-771.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-000.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-306.

11394-KBG-773

$13.29

3

CHAIN, STARTING (56L) This part replaces 28101-KB4-670.

28101-KB4-671

$38.46

3

CHAIN, STARTER

28101-KB4-671

$38.46

4

SPROCKET, STARTING (38T) This part replaces 28110-KB4-670.

28110-KB4-671

$103.64

4

SPROCKET, STARTER (38T)

28110-KB4-671

$103.64

5

PLATE, STARTING SPROCKET SETTING

28117-402-000

$2.99

6

STARTER MOTOR ASSY. This part replaces 31200-KB4-700.

31200-KR3-405

Unavailable

7

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

8

SPROCKET, STARTER MOTOR

31202-216-154

$50.41

9

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

9

SPRING, BRUSH

31204-230-174

$4.64

10

BOLT, STARTER COVER (NOT AVAILABLE)

31205-402-008

Unavailable

11

O-RING (60X1.4)

31206-402-008

Unavailable

12

CABLE, STARTER MOTOR

32410-KB4-000

Unavailable

13

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

13

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

14

O-RING, PINION CAP

53438-611-000

$5.80

15

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

15

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-005.

91205-965-003

$5.80

15

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

16

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92000-06010-1W.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92100-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

17

NUT, HEX. (6MM)

94002-06000-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

19

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

20

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

20

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
