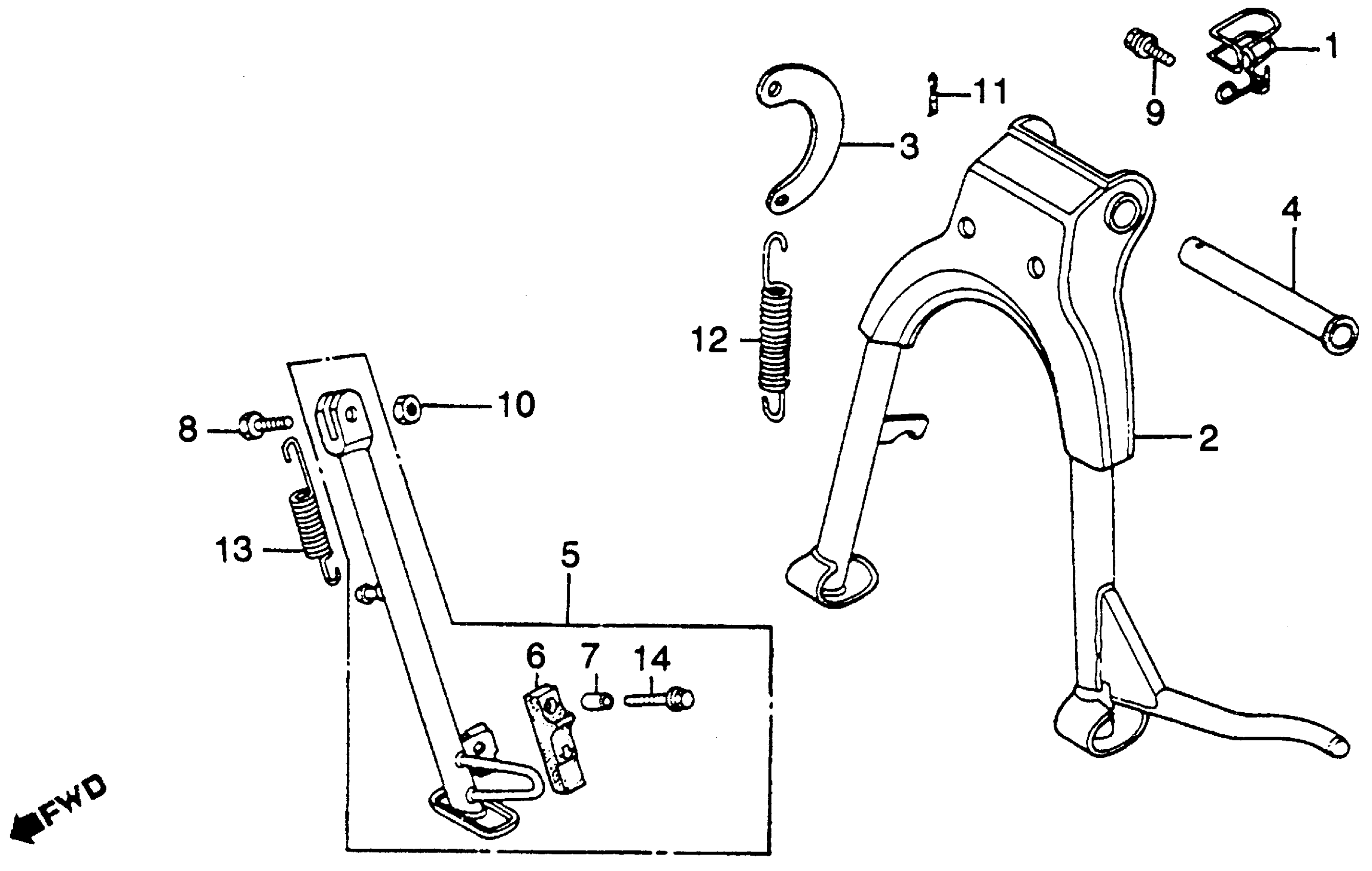

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 STAND Diagram

CLAMP, TUBE

50150-KB4-670

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-KB4-000

Unavailable

PLATE, MAIN STAND SPRING

50523-KB4-000

$7.70

SHAFT, MAIN STAND PIVOT This part replaces 50526-KB4-000.

50526-KC1-920

$17.31

SHAFT, MAIN STAND PIVOT

50526-KC1-920

$17.31

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KB4-670

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

BOLT-WASHER (6X12) This part replaces 93412-06012-08.

93402-06012-08

$1.62

BOLT-WASHER (6X12) This part replaces 93482-06012-08.

93402-06012-08

$1.62

NUT, HEX. (10MM)

94031-10000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

SPRING D, SIDE STAND

95014-72402

$2.92

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
