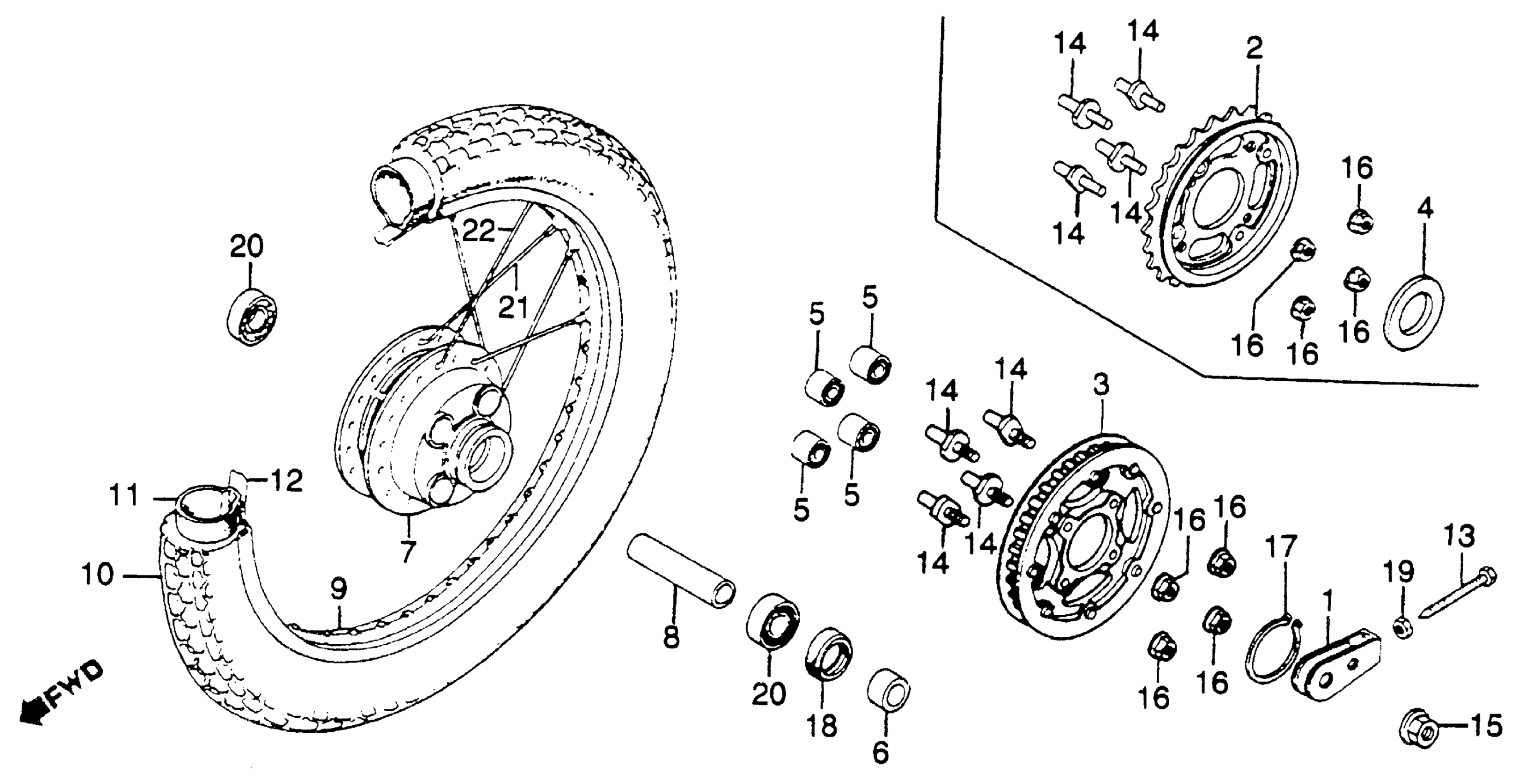

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-399-750

$9.99

3

PULLEY ASSY., DRIVEN (41T) (NOT AVAILABLE)

41200-KB4-770

Unavailable

5

BUSH, RR. WHEEL DAMPER This part replaces 41241-KB4-000.

41241-KB4-003

Unavailable

5

BUSH, RR. WHEEL DAMPER

41241-KB4-003

Unavailable

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42305-KB4-000

Unavailable

7

HUB, RR. WHEEL

42601-KB4-000

Unavailable

8

COLLAR, RR. WHEEL DISTANCE

42620-KB4-000

$16.62

9

RIM, RR. WHEEL

42701-447-671

Unavailable

10

TIRE, RR. (110/90-16) (DUNLOP) (NOT AVAILABLE)

42711-KB4-671

Unavailable

10

TIRE, RR. (110/90S16) (YOKOHAMA) (NOT AVAILABLE)

42711-KB4-672

Unavailable

10

TIRE, RR. (110/90-16S) (BS) (NOT AVAILABLE)

42711-KB4-673

Unavailable

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 08400-44700.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-673.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-771.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-772.

42712-KW3-004

$41.08

12

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

12

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

12

FLAP, FR. TIRE (BS) This part replaces 42713-447-672.

44713-118-003

$7.20

12

FLAP, FR. TIRE (BS) This part replaces 42713-447-673.

44713-118-003

$7.20

13

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

14

BOLT, DRIVEN SPROCKET FIXING

90128-KB4-770

Unavailable

15

NUT, U (14MM)

90305-GE8-003

$3.86

15

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

16

NUT, FLANGE (10MM)

90308-382-670

$4.07

17

CIRCLIP (58MM)

90664-216-000

$5.55

18

OIL SEAL (26X42X7)

91252-230-003

$10.56

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

20

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

21

SPOKE SET B (9X137)

97285-52114-P0

Unavailable

22

SPOKE SET B (9X136.5)

97631-52113-P0

Unavailable
