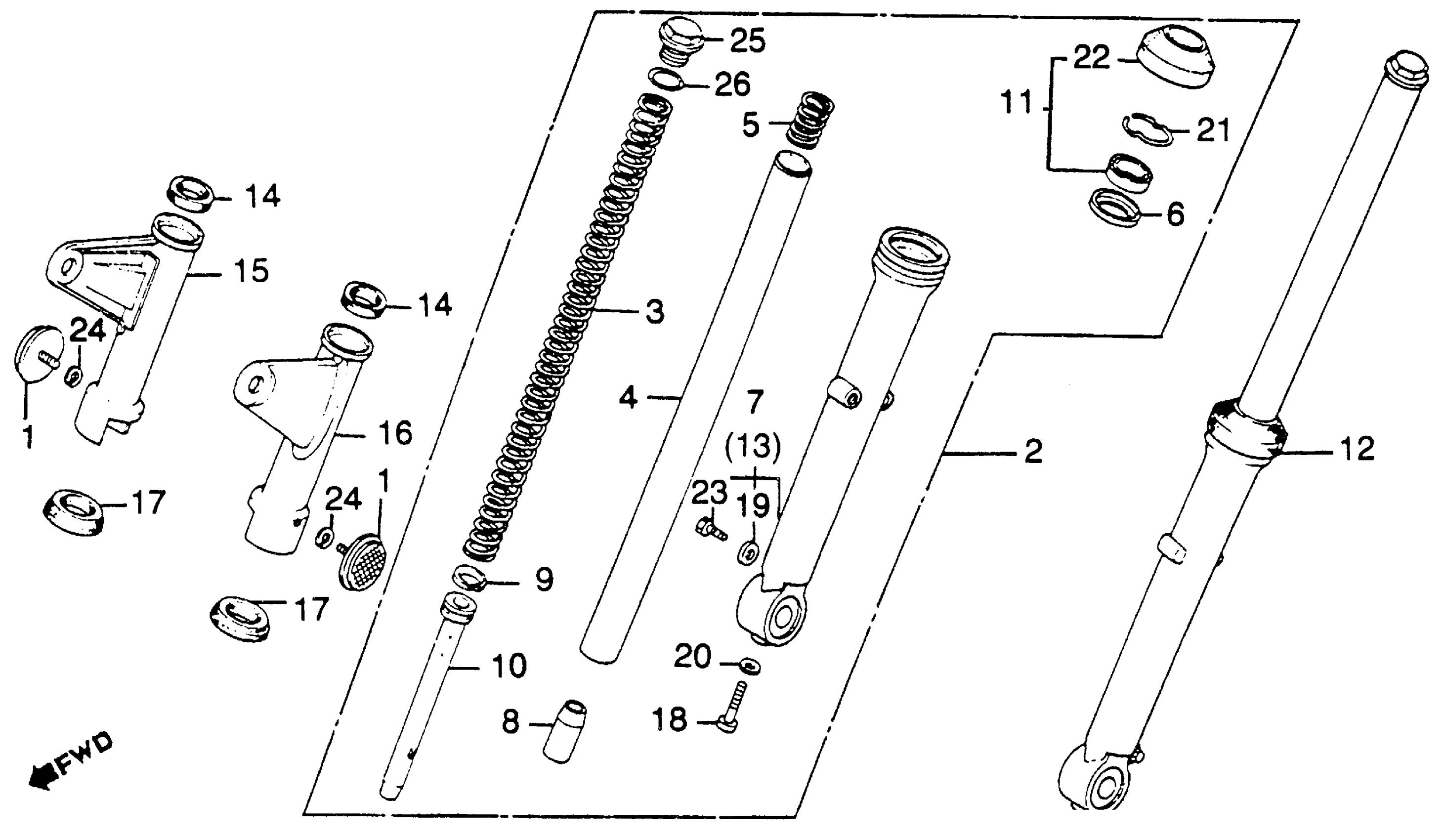

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 FRONT FORK Diagram

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

FORK ASSY., R. FR. This part replaces 51400-KB4-003.

51400-KB4-013

Unavailable

FORK ASSY., R. FR.

51400-KB4-013

Unavailable

SPRING, FR. FORK

51401-KB4-003

Unavailable

PIPE, FR. FORK

51410-KB4-003

Unavailable

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

RING, BACK-UP

51412-446-003

Unavailable

CASE, R. (LOWER) (NOT AVAILABLE)

51421-KB4-003

Unavailable

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

PIECE, OIL LOCKING

51432-447-731

$27.42

RING, PISTON

51437-373-781

Unavailable

PIPE, SEAT (NOT AVAILABLE)

51470-KB4-003

Unavailable

SEAL SET, FR. FORK

51490-446-305

Unavailable

FORK ASSY., L. FR. This part replaces 51500-KB4-003.

51500-KB4-013

Unavailable

FORK ASSY., L. FR.

51500-KB4-013

Unavailable

CASE, L. (LOWER)

51521-KB4-003

Unavailable

RUBBER, FR. FORK COVER (UPPER) (NOT AVAILABLE)

51601-KB4-000

Unavailable

COVER, R. FR. FORK (NOT AVAILABLE)

51602-KB4-000

Unavailable

COVER, L. FR. FORK

51606-KB4-000

Unavailable

RUBBER, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51622-KB4-000

Unavailable

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

RING, OIL SEAL STOP

90601-354-000

$5.13

DUST SEAL (SHOWA)

91254-436-003

$16.75

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BOLT D1, FORK

94605-27101

$8.00

O-RING (23X2.8)

94608-50000

$1.49
