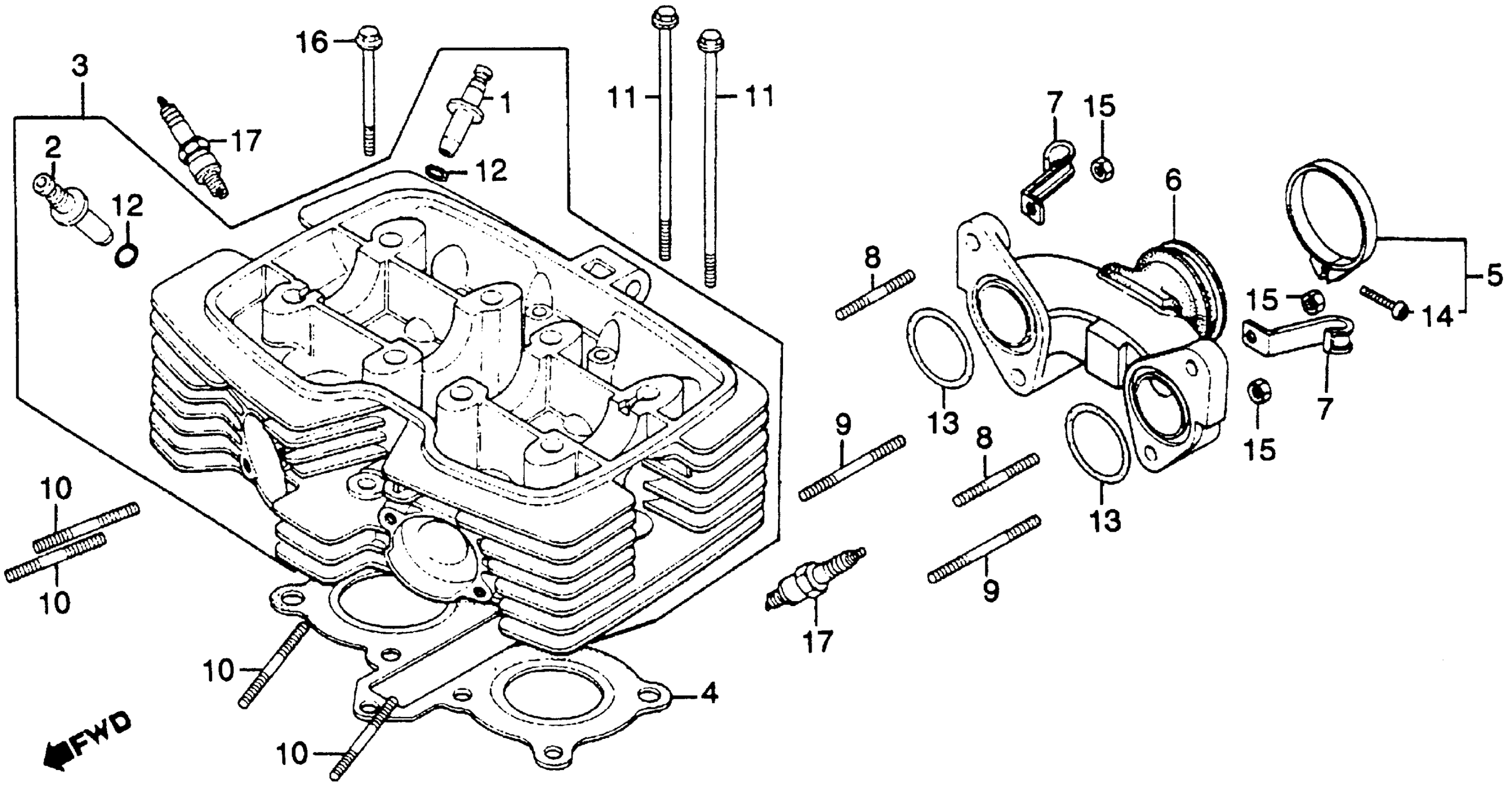

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

2

GUIDE, VALVE

12023-465-405

$18.90

3

CYLINDER HEAD (NOT AVAILABLE)

12200-KB4-700

Unavailable

4

GASKET, CYLINDER HEAD

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KB4-670.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KB4-671.

12251-KB4-315

Unavailable

5

BAND, INSULATOR

16219-ME9-000

$10.37

5

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$10.37

6

MANIFOLD, IN. (NOT AVAILABLE)

17111-KB4-770

Unavailable

7

CLIP, IGNITION WIRE (NOT AVAILABLE)

32907-402-000

Unavailable

8

BOLT, STUD (6X32)

90033-399-000

$2.07

9

BOLT, STUD (6X60)

90034-KB4-670

Unavailable

10

BOLT, STUD (6X33)

90034-KR3-000

$2.92

10

BOLT, STUD (6X33) This part replaces 90034-399-000.

90034-KR3-000

$2.92

11

BOLT, FLANGE (6X145)

90048-KB4-670

$8.92

12

O-RING (10X1.6)

91301-200-000

$3.01

13

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

13

O-RING (26X2.7)

91301-805-000

$3.98

14

SCREW, PAN (5X20)

93500-05020-0G

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

16

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

17

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.62

17

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

17

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.62

17

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

17

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.62

17

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
