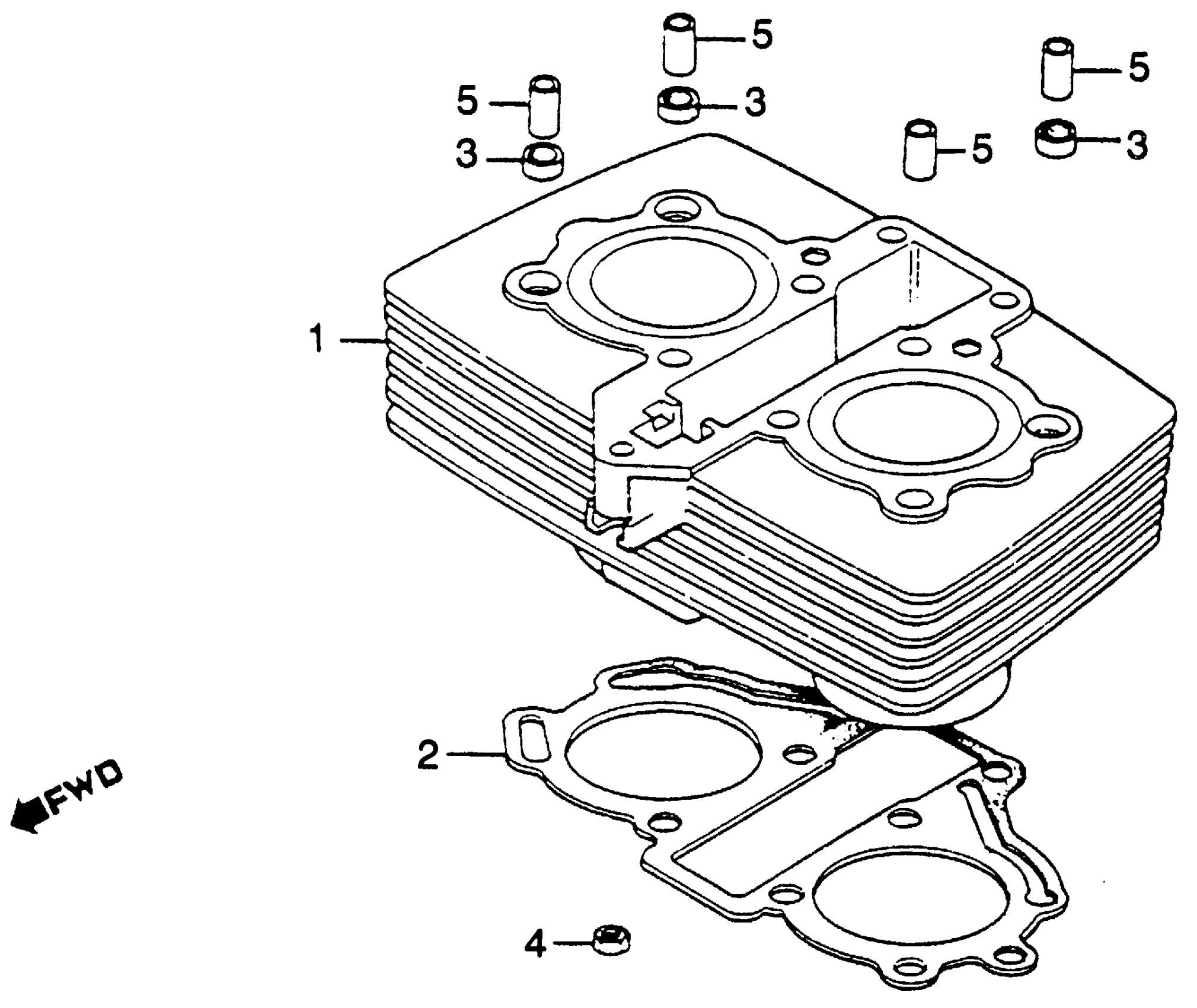

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-KB4-700

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KBG-770.

12191-KBG-772

$15.89

2

GASKET, CYLINDER This part replaces 12191-KB4-306.

12191-KBG-772

$15.89

2

GASKET, CYLINDER This part replaces 12191-KB4-670.

12191-KBG-772

$15.89

2

GASKET, CYLINDER This part replaces 12191-KC2-760.

12191-KBG-772

$15.89

3

GASKET, CYLINDER STUD

12261-105-690

$7.96

4

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

4

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

4

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

4

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

4

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

4

NUT, HEX. (6MM)

94001-06200-0S

$1.49

4

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

5

PIN A, DOWEL (10X16)

94301-10160

$2.28
