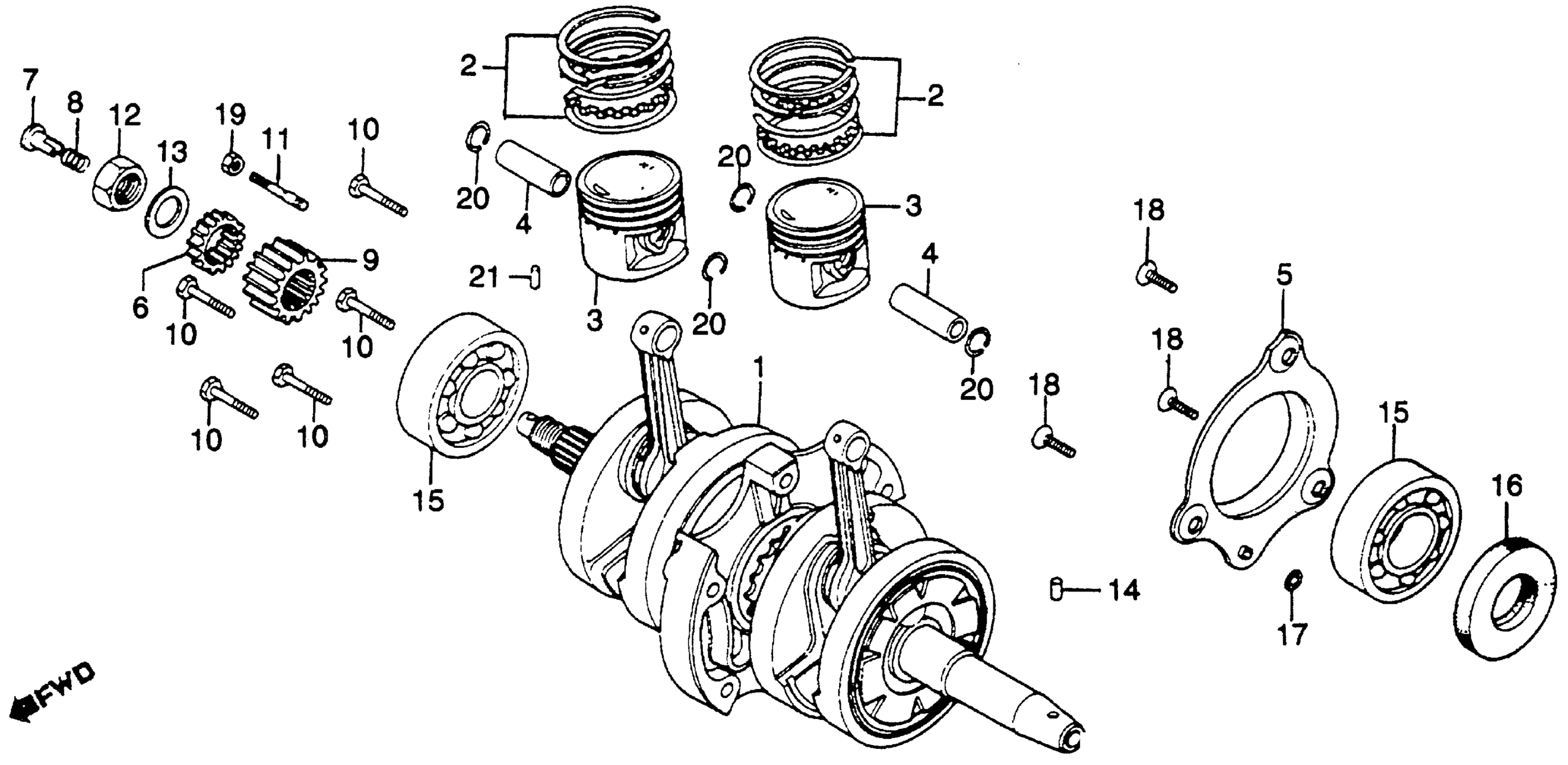

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-KB4-670.

13000-KR3-603

$828.66

1

CRANKSHAFT This part replaces 13000-KR3-000.

13000-KR3-603

$828.66

1

CRANKSHAFT This part replaces 13000-KR3-010.

13000-KR3-603

$828.66

1

CRANKSHAFT This part replaces 13000-KR3-600.

13000-KR3-603

$828.66

1

CRANKSHAFT This part replaces 13000-KR3-601.

13000-KR3-603

$828.66

1

CRANKSHAFT This part replaces 13000-KR3-602.

13000-KR3-603

$828.66

1

CRANKSHAFT

13000-KR3-603

$828.66

2

RING SET, PISTON This part replaces 130A1-KB4-000.

13011-KB4-305

$40.71

2

RING SET, PISTON

13011-KB4-305

$40.71

2

RING SET, PISTON This part replaces 13011-KB4-670.

13011-KB4-305

$40.71

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KB4-305

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13014-KB4-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13015-KB4-305

Unavailable

3

PISTON This part replaces 13101-KB4-670.

13101-KR3-306

Unavailable

3

PISTON

13101-KR3-306

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-KB4-305.

13102-KR3-305

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-KR3-305

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-KB4-305.

13103-KR3-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-KR3-305

Unavailable

3

PISTON (OS 0.75) | (Optional). This part replaces 13104-KB4-305.

13104-KR3-305

Unavailable

3

PISTON (0.75) | (Optional).

13104-KR3-305

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-KB4-305.

13105-KR3-305

Unavailable

3

PISTON (1.00) | (Optional).

13105-KR3-305

Unavailable

4

PIN, PISTON

13111-384-000

$19.77

5

PLATE, OIL THROUGH

13385-KB4-670

$32.30

6

GEAR B, OIL PUMP DRIVE (20T)

15335-KB4-670

$53.02

7

THROUGH, OIL

15441-149-000

$10.12

8

SPRING, OIL THROUGH

15447-149-000

$2.92

9

GEAR, PRIMARY DRIVE (19T) This part replaces 23121-464-000.

23121-464-010

$69.31

9

GEAR, PRIMARY DRIVE (19T)

23121-464-010

$69.31

10

BOLT, HEX. (8X35) (NOT AVAILABLE)

90001-KB4-670

Unavailable

11

BOLT, STUD (7X32)

90035-399-000

$2.92

12

NUT, HUB (16MM)

90202-567-000

$4.07

13

WASHER, LOCK

90401-399-000

$5.13

14

PIN, DOWEL (4X4.4)

90703-399-000

$4.36

15

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-KB4-670.

91001-071-003

$46.05

15

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-KB4-671.

91001-071-003

$46.05

15

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

16

OIL SEAL (35X52X7)

91201-402-015

$13.79

17

O-RING (6X3)

91319-323-000

$2.84

18

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

18

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

CLIP, PISTON PIN (16MM)

94601-16000

$1.49

21

ROLLER (2X13.8)

96220-20138

$1.49
