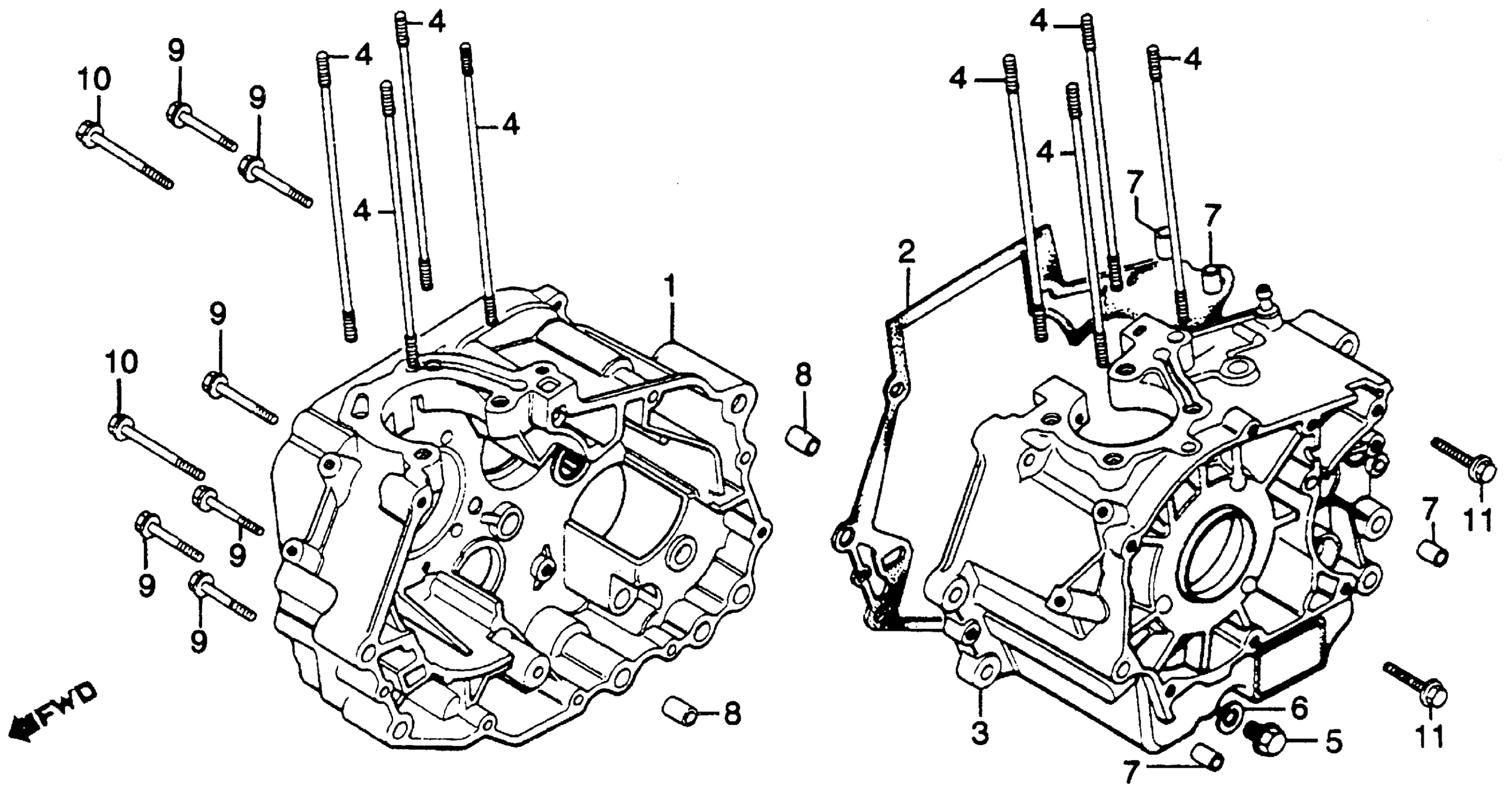

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-KB4-770.

11100-KR3-306

Unavailable

GASKET, CRANKCASE This part replaces 11191-KBG-771.

11191-KBG-773

$23.41

GASKET, CRANKCASE This part replaces 11191-KB4-670.

11191-KBG-773

$23.41

GASKET, CRANKCASE This part replaces 11191-399-306.

11191-KBG-773

$23.41

CRANKCASE, L.

11200-KB4-700

Unavailable

BOLT, CYLINDER STUD

90031-KB4-670

$13.19

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
