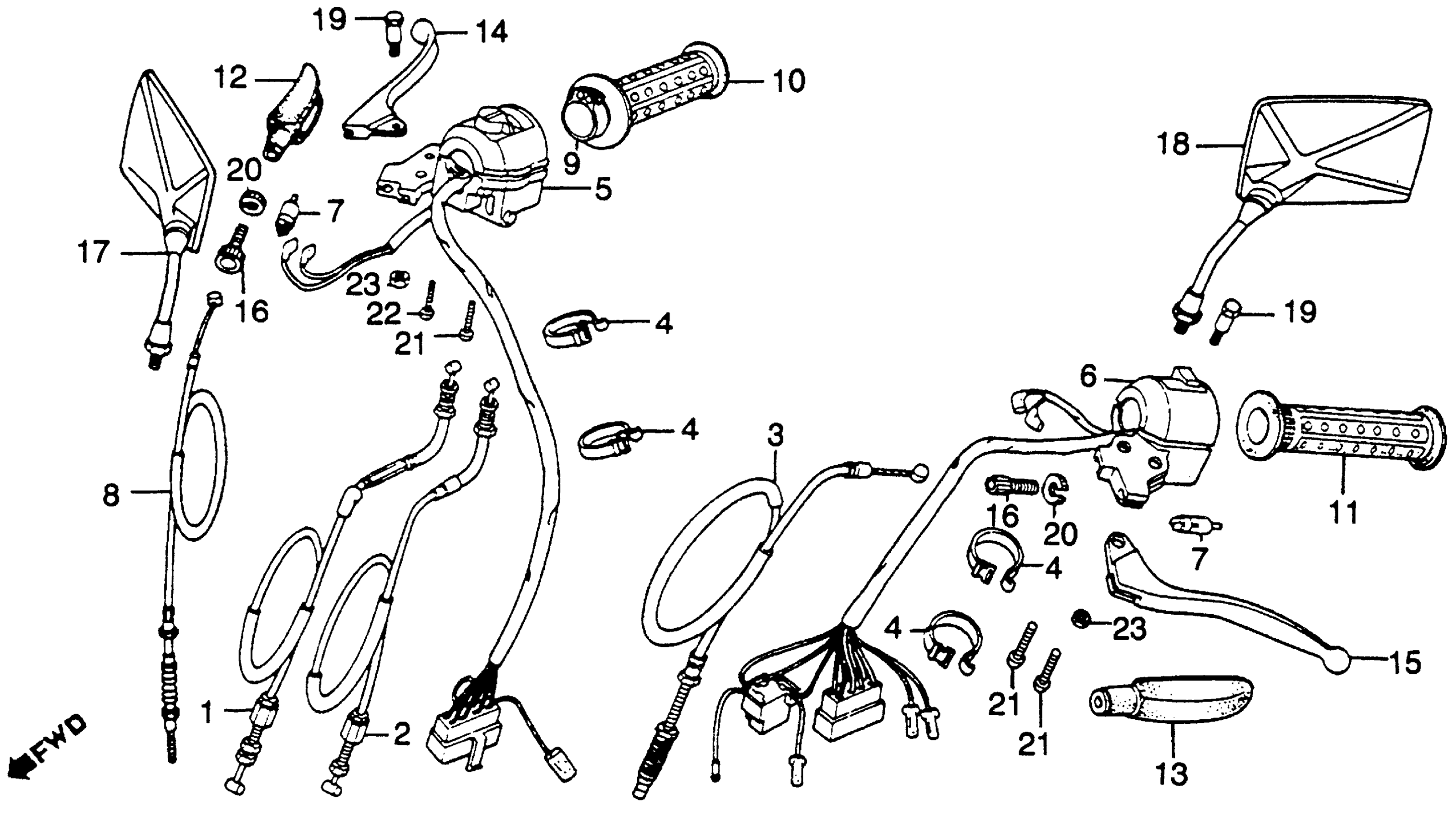

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-KB4-000

Unavailable

2

CABLE B, THROTTLE (NOT AVAILABLE)

17920-KB4-000

Unavailable

3

CABLE, CLUTCH

22870-KB4-000

$34.75

4

BAND B1, CABLE

32161-404-000

$2.16

5

SWITCH ASSY., STARTER STOP (NOT AVAILABLE) This part replaces 35130-KB4-670.

35130-KB4-671

Unavailable

5

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-KB4-671

Unavailable

6

SW,ASSY WINKER This part replaces 35200-KB4-670.

35200-KB4-405

Unavailable

6

SW,ASSY WINKER This part replaces 35200-KB4-671.

35200-KB4-405

Unavailable

7

SWITCH, FR. LEVER

35330-413-003

$20.11

8

CABLE, FR. BRAKE This part replaces 45450-KB4-000.

45450-424-701

$26.11

8

CABLE, FR. BRAKE

45450-424-701

$26.11

9

PIPE, THROTTLE GRIP This part replaces 53141-300-000.

53141-300-010

$19.22

9

PIPE, THROTTLE GRIP

53141-300-010

$19.22

10

GRIP, R. HANDLEBAR

53165-419-670

Unavailable

11

GRIP, L. HANDLEBAR

53166-419-670

Unavailable

12

COVER, R. HANDLEBAR LEVER

53171-402-700

$9.76

13

COVER, L. HANDLEBAR LEVER

53172-402-700

$6.87

14

LEVER, R. HANDLEBAR

53175-399-700

$31.31

15

LEVER, L. HANDLEBAR

53178-399-700

$25.71

16

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

17

MIRROR, R.

88110-KB4-003

Unavailable

18

MIRROR, L.

88120-KB4-003

Unavailable

19

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.68

20

NUT, FIXING

90321-315-670

$6.97

20

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

21

SCREW, PAN (5X25)

93500-05025-0A

$1.19

22

SCREW, PAN (5X35)

93500-05035-0A

$1.01

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM)

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.21
