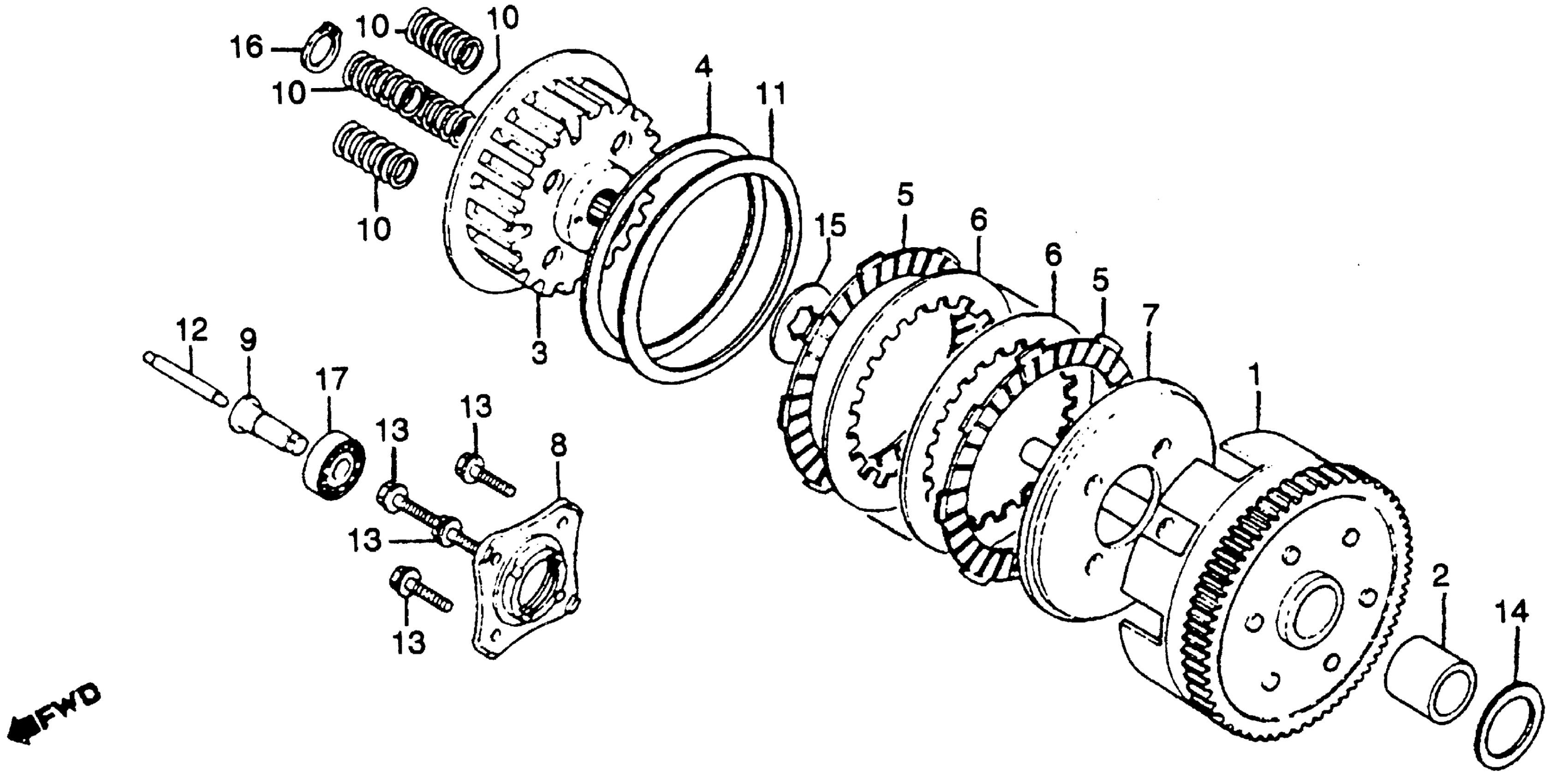

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-KB4-670

$277.41

2

GUIDE, CLUTCH (OUTER)

22116-KB4-671

$24.97

3

CENTER, CLUTCH (NOT AVAILABLE)

22121-KB4-670

Unavailable

4

SEAT, JUDDER SPRING

22125-KB4-670

$10.33

5

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

5

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$17.44

5

DISK, CLUTCH FRICTION

22201-166-000

$17.44

6

PLATE, CLUTCH

22311-KN4-680

$6.31

6

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

7

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$30.91

7

PLATE, CLUTCH PRESSURE

22350-107-010

$30.91

8

PLATE, CLUTCH LIFTER

22361-437-000

$14.82

9

PIN, CLUTCH LIFTER GUIDE

22366-KB4-670

Unavailable

10

SPRING, CLUTCH This part replaces 22401-KB4-670.

22401-KT0-000

$5.10

10

SPRING, CLUTCH

22401-KT0-000

$5.10

11

SPRING, JUDDER

22402-KB4-670

$30.75

12

ROD, CLUTCH LIFTER

22850-355-000

Unavailable

13

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

14

WASHER, THRUST (20MM)

90459-KB4-670

$4.19

15

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

16

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

17

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

17

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
