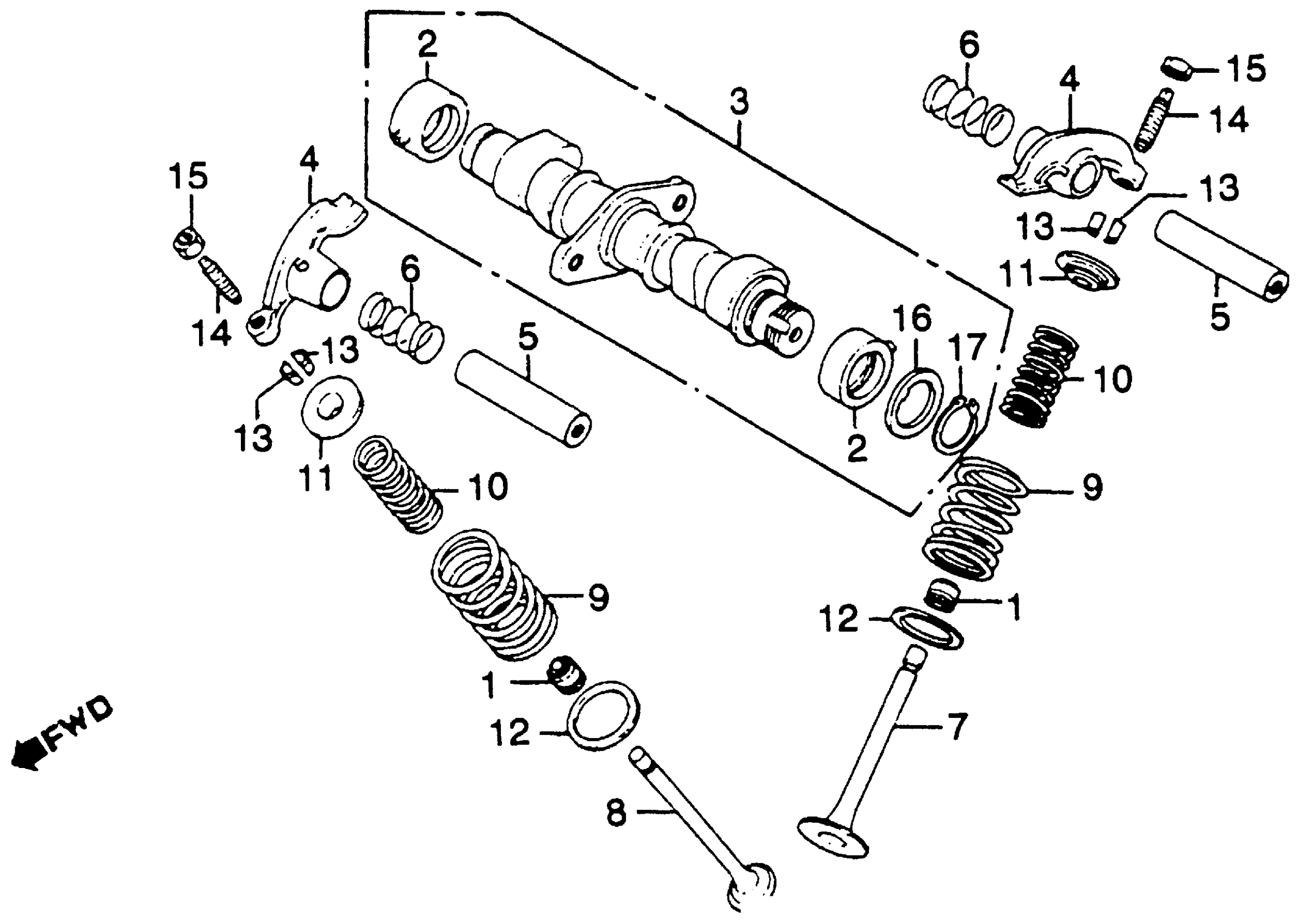

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM

12209-657-000

Unavailable

BUSH, CAMSHAFT

12234-399-010

$34.50

CAMSHAFT (NOT AVAILABLE)

14100-KB4-670

Unavailable

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$38.17

ARM, VALVE ROCKER

14431-116-010

$38.17

SHAFT, VALVE ROCKER ARM

14451-399-000

$14.19

SPRING, ROCKER ARM SIDE

14461-KC2-680

$3.91

SPRING, ROCKER ARM SIDE This part replaces 14461-399-000.

14461-KC2-680

$3.91

VALVE, IN.

14711-399-000

Unavailable

VALVE, EX.

14721-176-000

$71.51

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-KB4-670

Unavailable

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-399-005

$8.25

RETAINER, VALVE SPRING

14771-107-020

$7.63

SEAT, VALVE SPRING (OUTER)

14775-107-000

$3.90

COTTER, VALVE (SANKO)

14781-107-003

$2.47

SCREW, TAPPET ADJ.

90012-333-000

$2.66

NUT, TAPPET ADJ.

90206-001-000

$1.60

WASHER (20MM)

90402-399-000

$3.69

CIRCLIP (OUTER) (20MM)

94510-20000

$1.31
