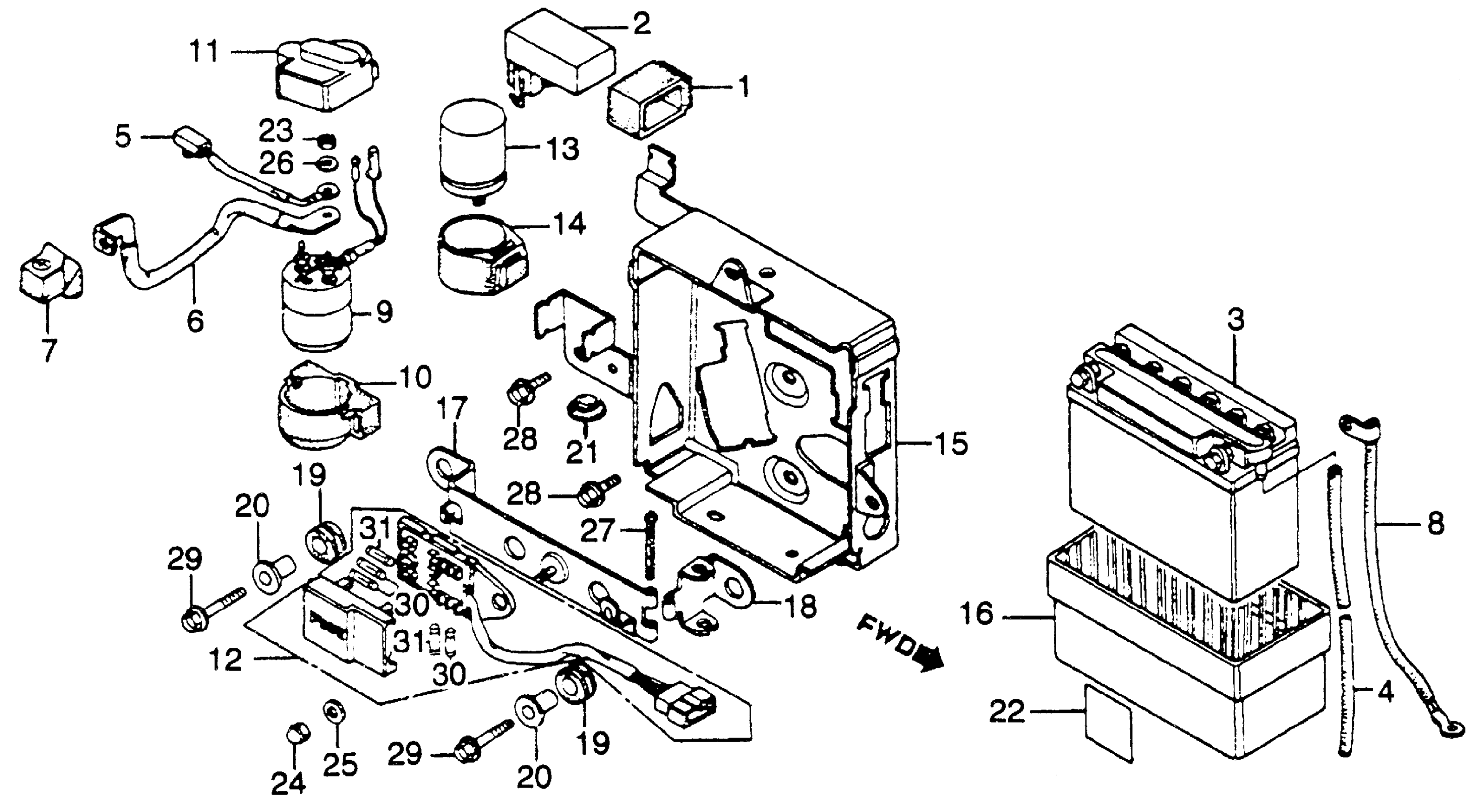

Honda CM250CA (83) 250 CUSTOM, JPN, VIN# JH2MC060-DK100009 TO JH2MC060-DK106422 BATTERY + C.D.I. UNIT Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KB4-008

Unavailable

3

BATTERY (YB9-B) This part replaces 31500-KB4-671.

31500-KB4-673AH

Unavailable

3

BATTERY (YB9-B) This part replaces 31500-KB4-672.

31500-KB4-673AH

Unavailable

3

BATTERY (YB9-B) This part replaces 31500-KB4-673.

31500-KB4-673AH

Unavailable

3

BATTERY (YB9-B) This part replaces 31500-KB4-674.

31500-KB4-673AH

Unavailable

4

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-KB4-670

Unavailable

5

SUB-WIRE B (NOT AVAILABLE)

32112-KB4-000

Unavailable

6

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-KB4-000

Unavailable

7

COVER, BATTERY TERMINAL

32412-471-000

Unavailable

8

CABLE, BATTERY GROUND

32602-KB4-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-431-007

Unavailable

10

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

11

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-KB4-000

Unavailable

12

BOX ASSY., FUSE (NOT AVAILABLE)

38200-KB4-005

Unavailable

13

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

13

RELAY, TURN SIGNAL This part replaces 38301-415-671.

38300-MG2-008

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-KB4-000.

38306-KB4-010

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY

38306-KB4-010

Unavailable

15

TRAY, BATTERY

50325-KB4-000

Unavailable

16

RUBBER, BATTERY (NOT AVAILABLE)

50326-471-000

Unavailable

17

BAND, BATTERY (NOT AVAILABLE)

50327-KB4-000

Unavailable

18

HINGE, BAND (NOT AVAILABLE)

50328-KB4-000

Unavailable

19

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

COLLAR, RR. FENDER

61105-428-000

Unavailable

21

RUBBER, BATTERY BOX

83618-323-000

$2.47

22

LABEL, BATTERY CAUTION

87506-KB4-670

Unavailable

23

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

23

NUT, HEX. (6MM)

94002-06080-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

24

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

24

NUT, CAP (6MM)

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94102-06000.

94101-06800

$1.49

26

WASHER, SPRING (6MM)

94111-06800

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, COTTER (3.0X45)

94201-30450

$1.49

28

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

28

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

29

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

29

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

30

FUSE B (7A)

98200-20700

$1.49

31

FUSE B (15A)

98200-21500

$1.49
