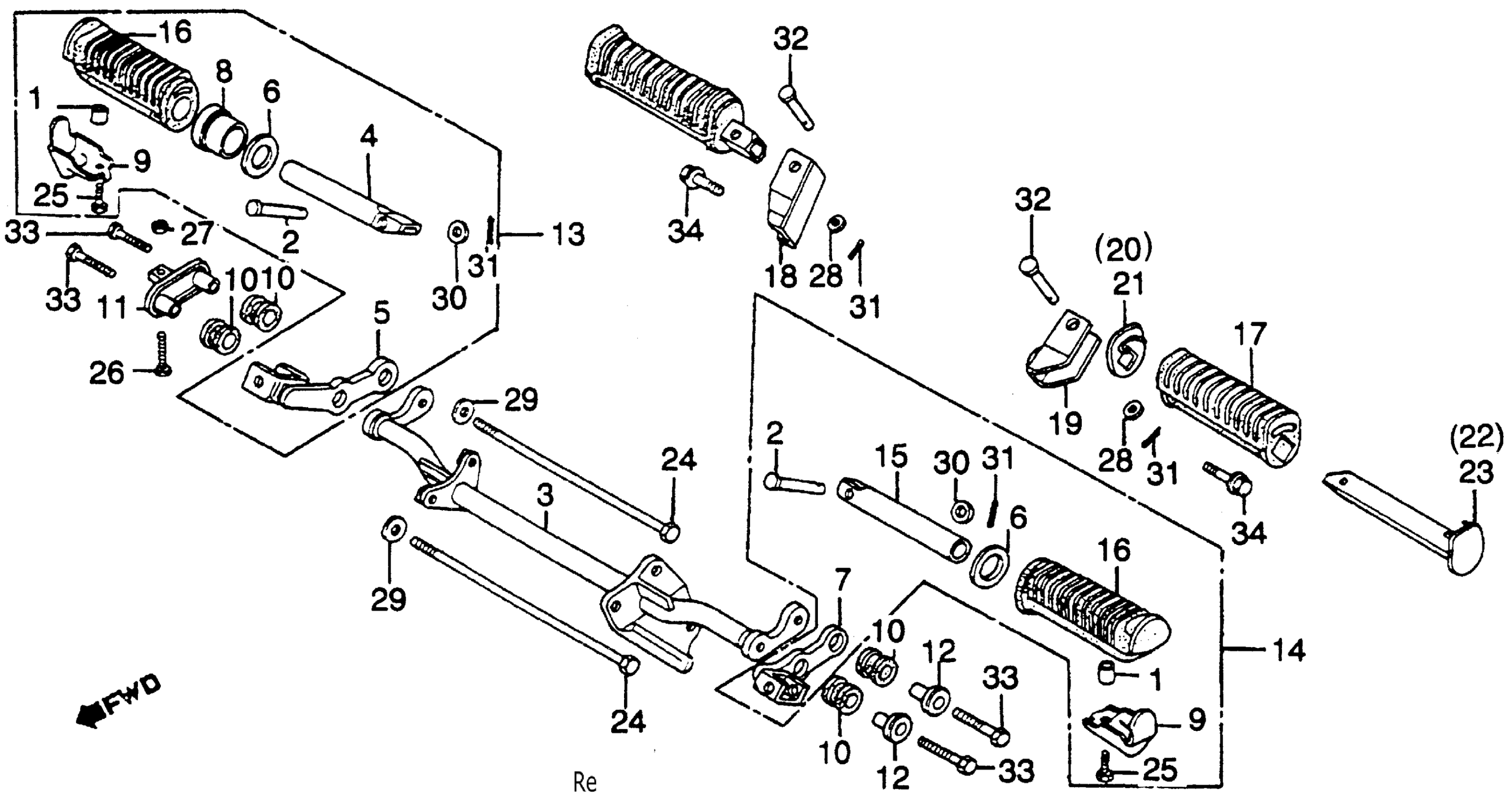

Honda CM250CA (82) 250 CUSTOM, JPN, VIN# JH2MC060-CK000067 TO JH2MC060-CK017891 STEP Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

PIN, STEP JOINT

50603-KB4-000

$4.84

3

BAR, STEP (NOT AVAILABLE)

50610-KB4-000

Unavailable

4

BAR, R. FOOTPEG

50612-413-000

Unavailable

5

BRACKET, R. STEP (NOT AVAILABLE)

50614-KB4-000

Unavailable

6

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

7

BRACKET, L. STEP (NOT AVAILABLE)

50615-KB4-000

Unavailable

9

STOPPER, STEP RUBBER

50619-425-010

Unavailable

10

RUBBER B, STEP MOUNTING

50623-473-000

$2.31

11

COLLAR B, STEP (NOT AVAILABLE)

50624-KB4-000

Unavailable

12

COLLAR A, STEP (NOT AVAILABLE)

50625-KB4-000

Unavailable

13

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-KB4-000

Unavailable

14

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-KB4-000

Unavailable

15

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

16

RUBBER, FOOTPEG

50661-425-670

$13.34

17

RUBBER, PILLION STEP (COO) This part replaces 50710-461-770.

50710-461-305

$12.78

18

BRACKET, R. PILLION STEP (NOT AVAILABLE)

50711-KB4-000

Unavailable

19

BRACKET, L. PILLION STEP

50712-KB4-000

Unavailable

20

WASHER, R. PILLION FOOTPEG

50712-438-730

$5.56

21

WASHER, L. PILLION FOOTPEG

50713-438-730

$5.56

22

BAR, R. PILLION STEP

50715-461-770

$37.33

23

BAR, L. PILLION STEP

50718-461-770

$37.33

24

BOLT, HEX. (8X132)

90085-292-000

$7.16

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X32) This part replaces 92020-06032.

92030-06032

Unavailable

26

BOLT, HEX. (6X32) This part replaces 92020-06032-0A.

92030-06032

Unavailable

26

BOLT, HEX. (6X32)

92030-06032

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, PLAIN (8MM)

94102-08000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

PIN A, PILLION STEP

95015-81000

$2.21

33

BOLT, FLANGE (8X28) This part replaces 95700-08028-07.

95701-08028-07

$1.49

33

BOLT, FLANGE (8X28)

95701-08028-07

$1.49

34

BOLT, FLANGE (10X28) This part replaces 95700-10028-00.

95701-10028-00

$1.49

34

BOLT, FLANGE (10X28)

95701-10028-00

$1.49
