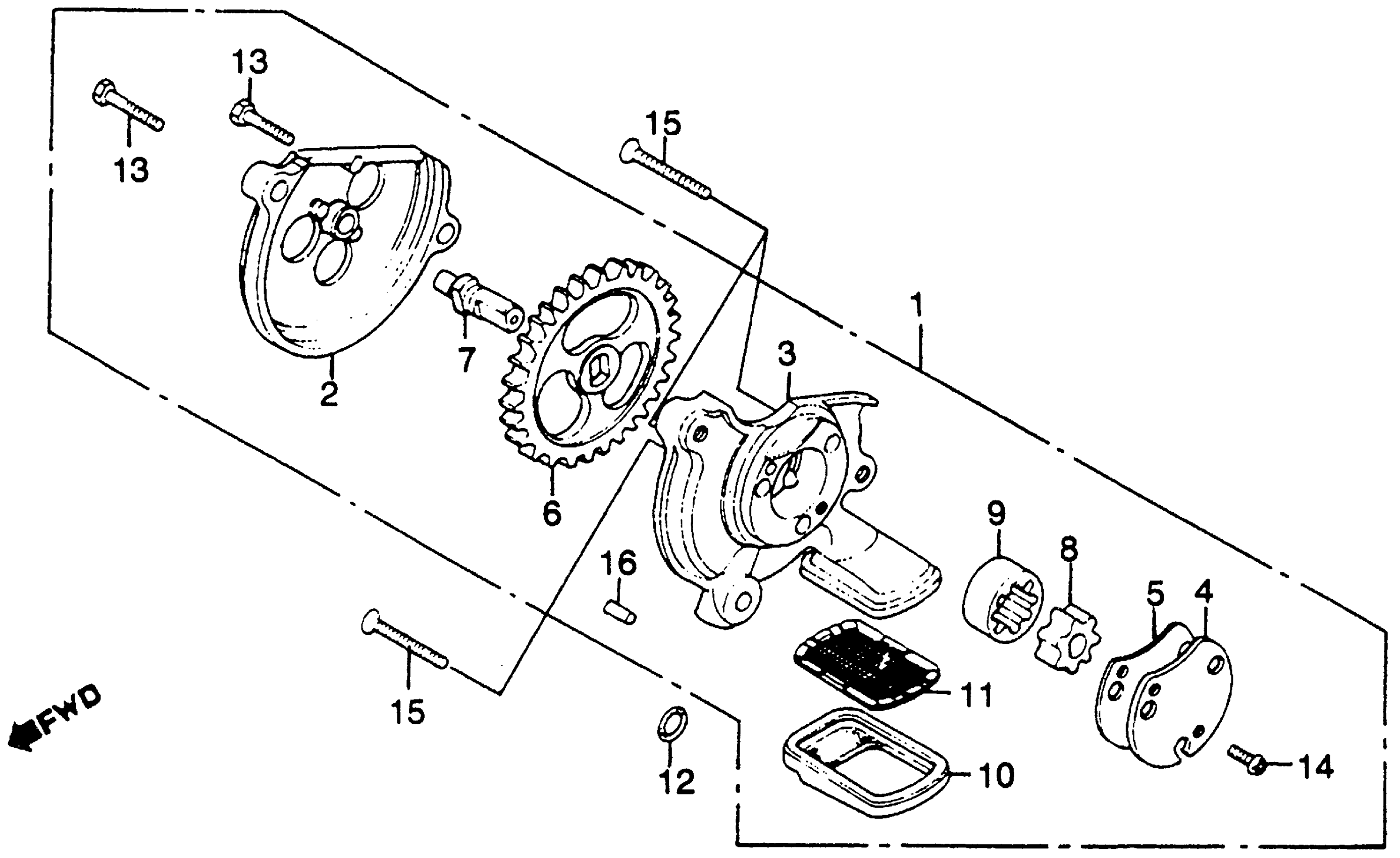

Honda CM250CA (82) 250 CUSTOM, JPN, VIN# JH2MC060-CK000067 TO JH2MC060-CK017891 OIL PUMP Diagram

PUMP ASSY., OIL This part replaces 15100-KB4-670.

15100-KB4-671

$160.03

PUMP ASSY., OIL

15100-KB4-671

$160.03

COVER, OIL PUMP GEAR (NOT AVAILABLE)

15106-402-000

Unavailable

BODY, OIL PUMP (NOT AVAILABLE)

15111-KB4-670

Unavailable

PLATE, OIL PUMP (YAMADA) (NOT AVAILABLE)

15121-399-000

Unavailable

GASKET, OIL PUMP (YAMADA) (NOT AVAILABLE)

15126-399-000

Unavailable

GEAR A, OIL PUMP DRIVE (40T)

15131-KB4-670

$70.90

SHAFT, OIL PUMP (NOT AVAILABLE)

15136-383-000

Unavailable

ROTOR, OIL PUMP (INNER)

15331-881-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15332-881-000

Unavailable

HOLDER, SCREEN

15421-399-000

$9.52

SCREEN, OIL FILTER

15422-399-000

$8.18

O-RING (6X3)

91319-323-000

$2.84

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

SCREW, PAN (5X10)

93500-05010-0A

$1.49

SCREW, FLAT (6X32) This part replaces 93600-06032.

93600-06032-0A

$1.49

SCREW, FLAT (6X32)

93600-06032-0A

$1.49

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
