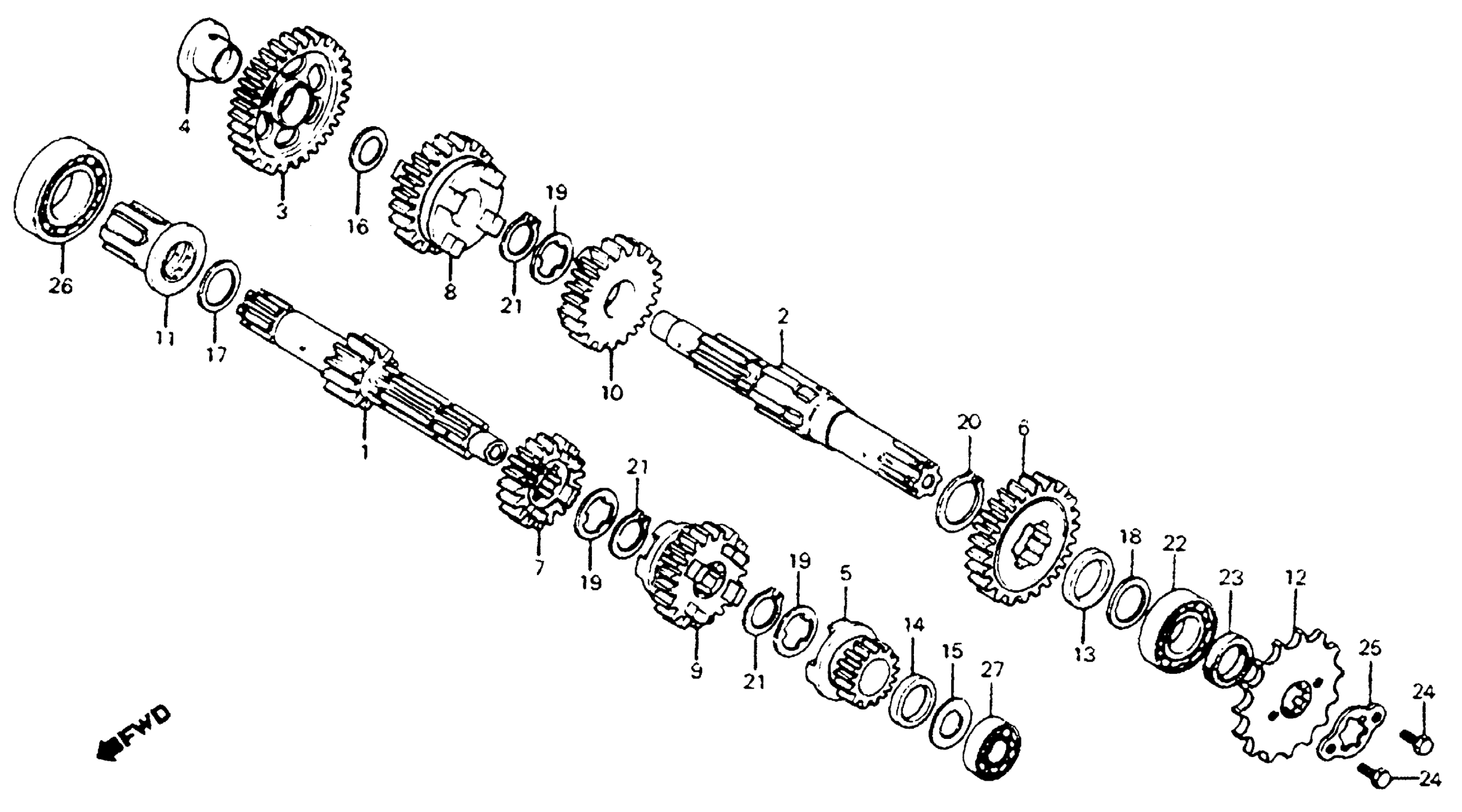

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-464-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-464-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (37T)

23426-464-000

Unavailable

4

BUSH, COUNTERSHAFT LOW GEAR

23427-464-000

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-397-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23451-402-700

Unavailable

7

GEAR, MAINSHAFT THIRD (22T)

23461-464-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23471-464-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (22T)

23481-464-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (22T) (NOT AVAILABLE)

23491-464-000

Unavailable

11

COLLAR, MAINSHAFT LOW GEAR SIDE (NOT AVAILABLE)

23520-464-000

Unavailable

12

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

12

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

12

SPROCKET, DRIVE (15T) This part replaces 23801-330-000.

23801-KC6-000

Unavailable

13

COLLAR A, GEAR (NOT AVAILABLE)

23911-397-000

Unavailable

14

COLLAR B, GEAR (NOT AVAILABLE)

23912-397-000

Unavailable

15

WASHER, THRUST (15MM)

90451-107-000

$1.49

16

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

17

WASHER A, THRUST (20MM)

90453-107-000

$2.25

18

WASHER, THRUST (20MM)

90454-107-000

$1.80

19

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

20

CIRCLIP (25MM)

90601-107-000

$3.74

21

SET-RING (20MM)

90605-200-000

$2.92

22

BEARING, RADIAL BALL (6204U) (TOYO)

91001-464-003

$23.15

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

23

OIL SEAL (20X34X7)

91201-030-015

Unavailable

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

23

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

24

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

24

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

25

PLATE B, FIXING

95014-92100

$1.49

26

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

26

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

27

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

27

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
