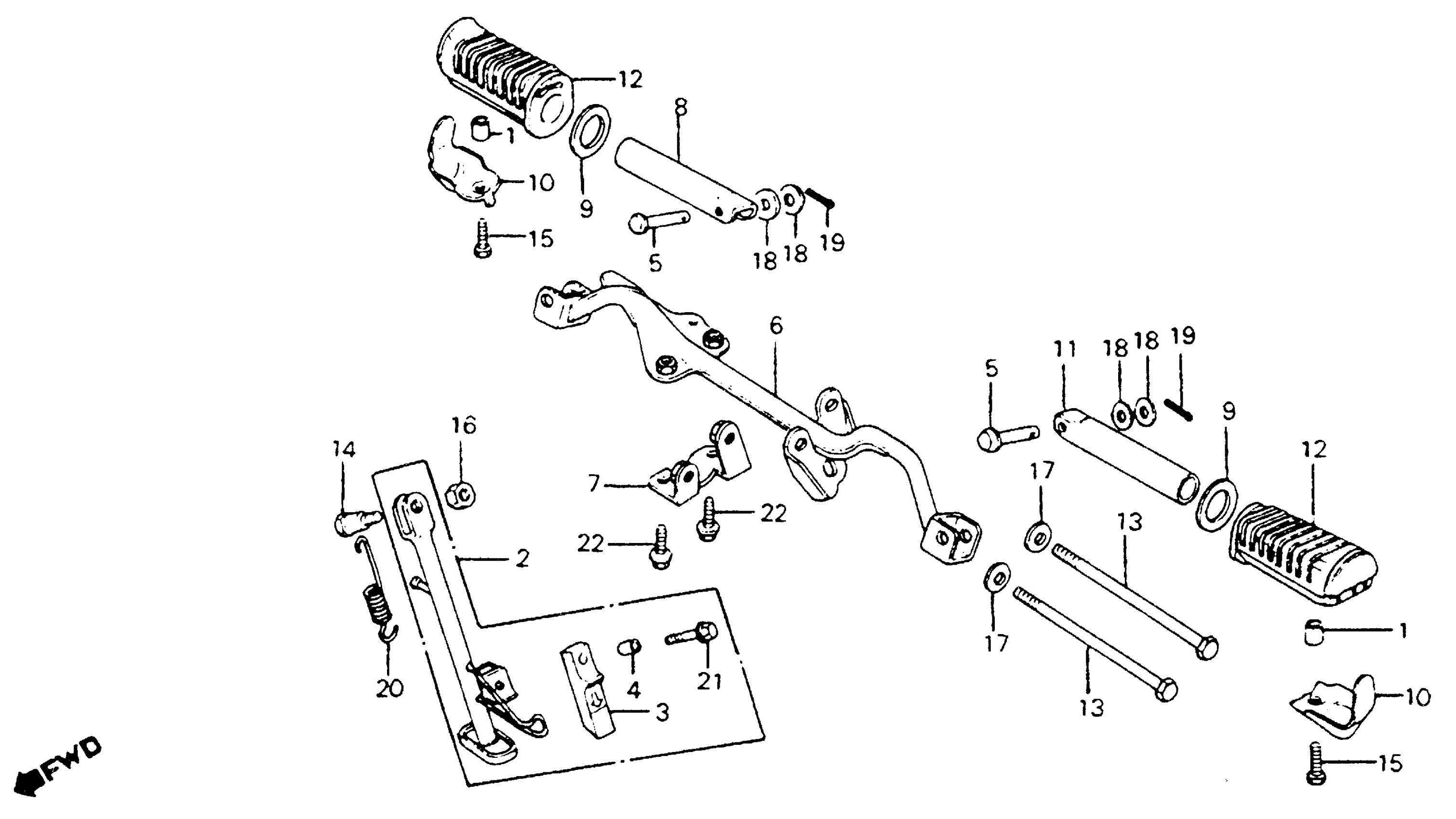

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 STEP + SIDE STAND Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

BAR, SIDE STAND (NOT AVAILABLE)

50540-465-670

Unavailable

3

RUBBER, STAND

50548-356-700

$9.63

4

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.50

5

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.06

5

PIN, STEP BAR JOINT

50603-033-010

$3.06

6

BAR, STEP (NOT AVAILABLE)

50610-424-700

Unavailable

7

STAY, STEP HANGER *NH1* (BLACK) (NOT AVAILABLE)

50612-402-000ZA

Unavailable

8

BAR, R. FOOTPEG

50612-413-000

Unavailable

9

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

10

STOPPER, STEP RUBBER

50619-425-010

Unavailable

11

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

12

RUBBER, FOOTPEG

50661-425-670

$12.26

13

BOLT, HEX. (8X132)

90085-292-000

$6.62

14

BOLT, SIDE STAND PIVOT

90108-223-000

$4.89

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.47

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.47

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.47

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.47

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.47

16

NUT, HEX. (10MM)

94031-10000

$0.82

17

WASHER, PLAIN (8MM)

94101-08000

Unavailable

18

WASHER, PLAIN (8MM)

94102-08000

$0.87

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

19

PIN, COTTER (1.6X25)

94201-16250

$1.01

20

SPRING D, SIDE STAND

95014-72402

$2.80

21

BOLT, FLANGE (6X28)

95700-06028-00

$1.81

21

BOLT, FLANGE (6X28)

95701-06028-00

$1.81

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.87

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.87
