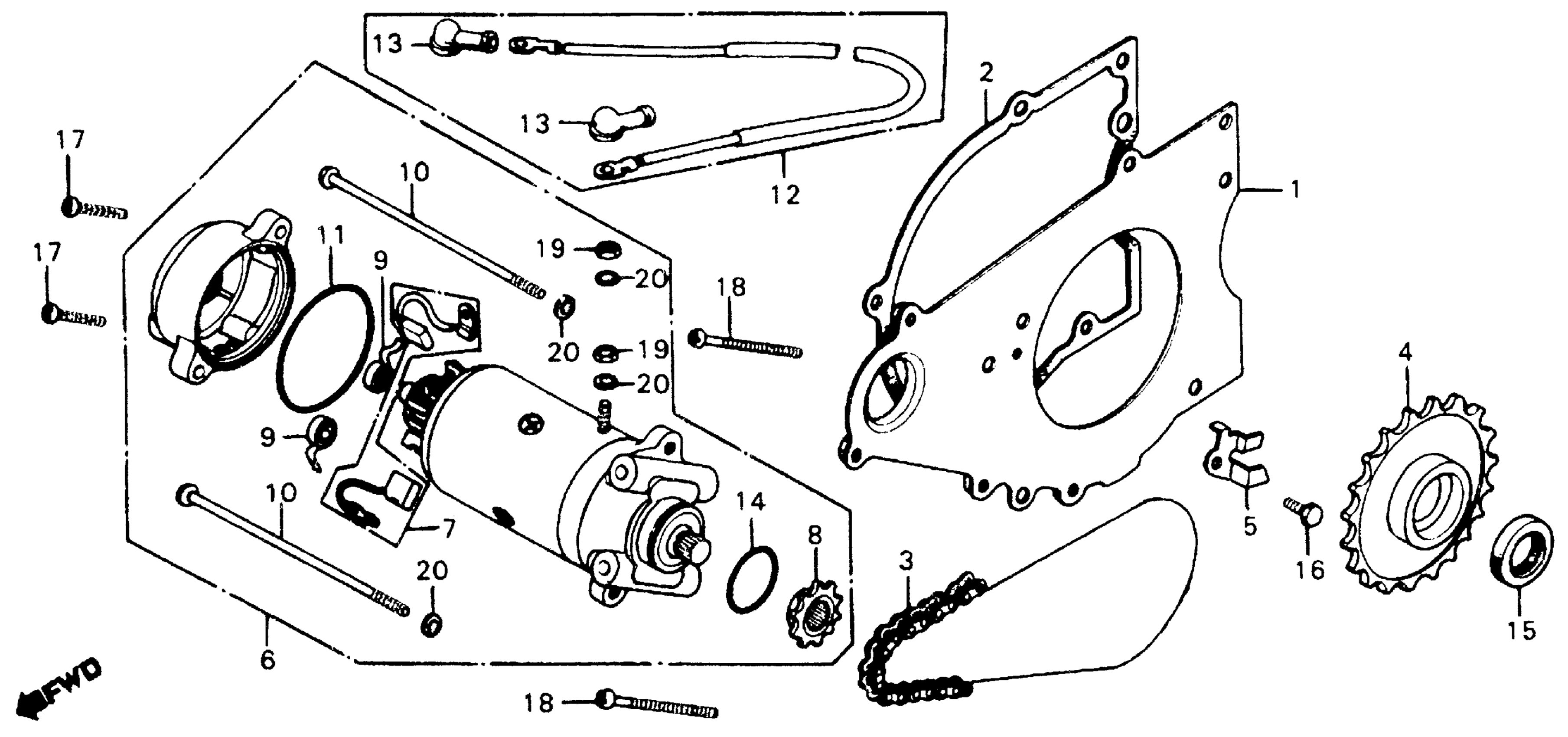

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 STARTING MOTOR Diagram

#

Description
Price

1

SPACER, L. SIDE (NOT AVAILABLE)

11371-402-000

Unavailable

2

GASKET, L. This part replaces 11394-KBG-771.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-000.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-306.

11394-KBG-773

$13.29

3

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

4

SPROCKET, STARTING (35T)

28110-402-000

Unavailable

5

PLATE, STARTING SPROCKET SETTING

28117-402-000

$2.99

6

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-465-671

Unavailable

7

BRUSH SET (MITSUBA) This part replaces 31201-216-154.

31201-230-174

Unavailable

7

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

8

SPROCKET, STARTER MOTOR

31202-216-154

$50.41

9

SPRING, BRUSH

31204-230-174

$4.64

10

BOLT, STARTER COVER (NOT AVAILABLE)

31205-402-008

Unavailable

11

O-RING (60X1.4)

31206-402-008

Unavailable

12

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-304-000

Unavailable

13

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

13

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

14

O-RING, PINION CAP

53438-611-000

$5.80

15

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

15

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-005.

91205-965-003

$5.80

15

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

16

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92000-06010-1W.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92100-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

17

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

18

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

18

SCREW, PAN (6X65)

93500-06065-0A

$1.53

19

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49
