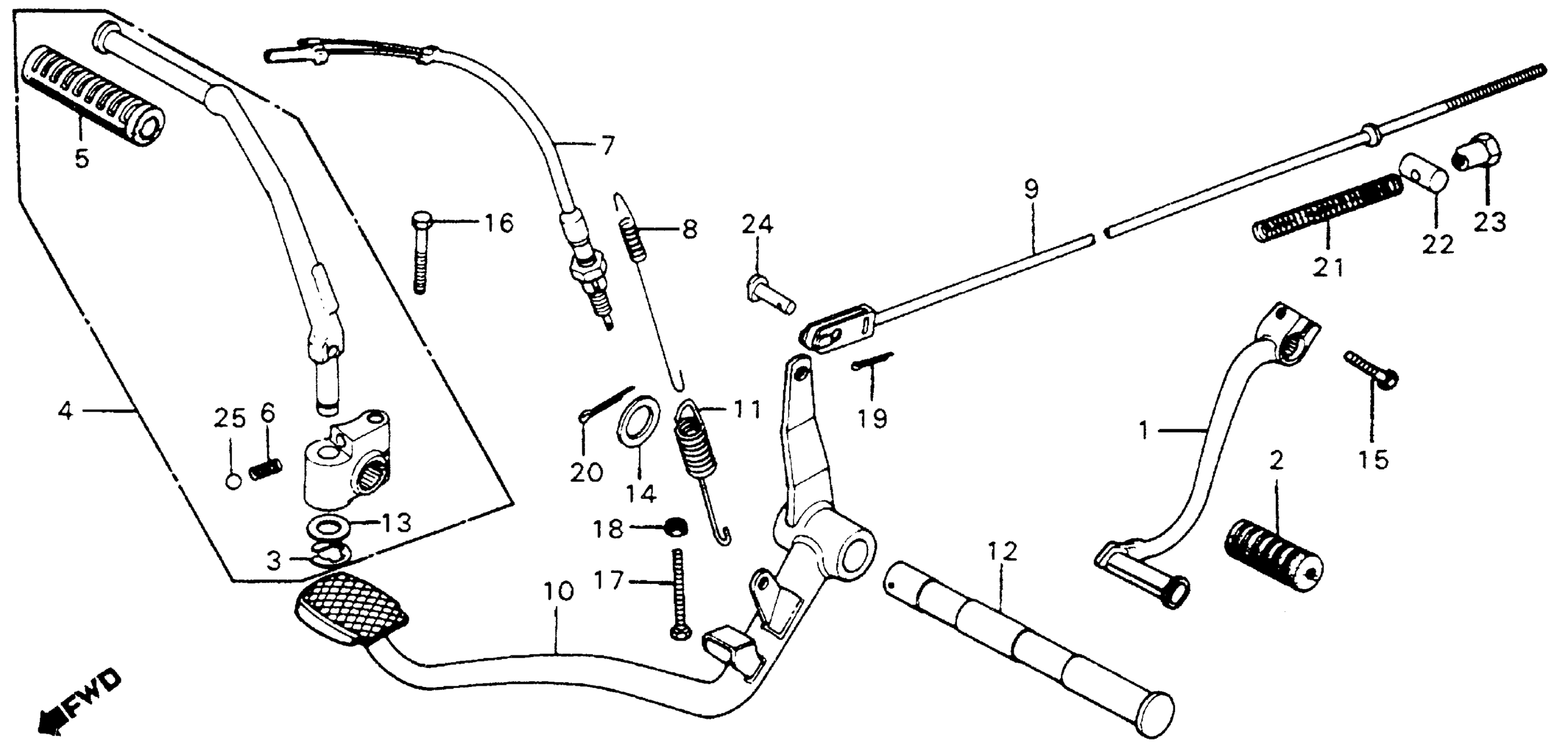

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-424-700.

24700-424-701

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-424-701

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

CLIP, KICK STARTER ARM

28293-333-000

$2.67

4

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-465-770

Unavailable

5

RUBBER, KICK STARTER

28311-342-000

$6.71

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-149-003.

35350-KJ9-405

$16.97

8

SPRING, STOP SWITCH

35357-107-010

Unavailable

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-419-000

Unavailable

10

PEDAL, BRAKE (NOT AVAILABLE)

46500-419-000

Unavailable

11

SPRING, BRAKE PEDAL

46514-107-010

$5.99

12

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

13

WASHER (13X20)

90505-116-670

$2.92

14

WASHER (17.5MM)

90512-303-000

$1.77

15

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

15

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

16

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

17

BOLT, HEX. (6x35) This part replaces 92033-06035.

92135-06035

Unavailable

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

PIN, COTTER (1.6X12)

94201-16120

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

SPRING A, BRAKE ROD

95014-73100

$1.49

21

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

22

JOINT, BRAKE ARM

95015-32001

$1.49

23

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

24

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

25

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
