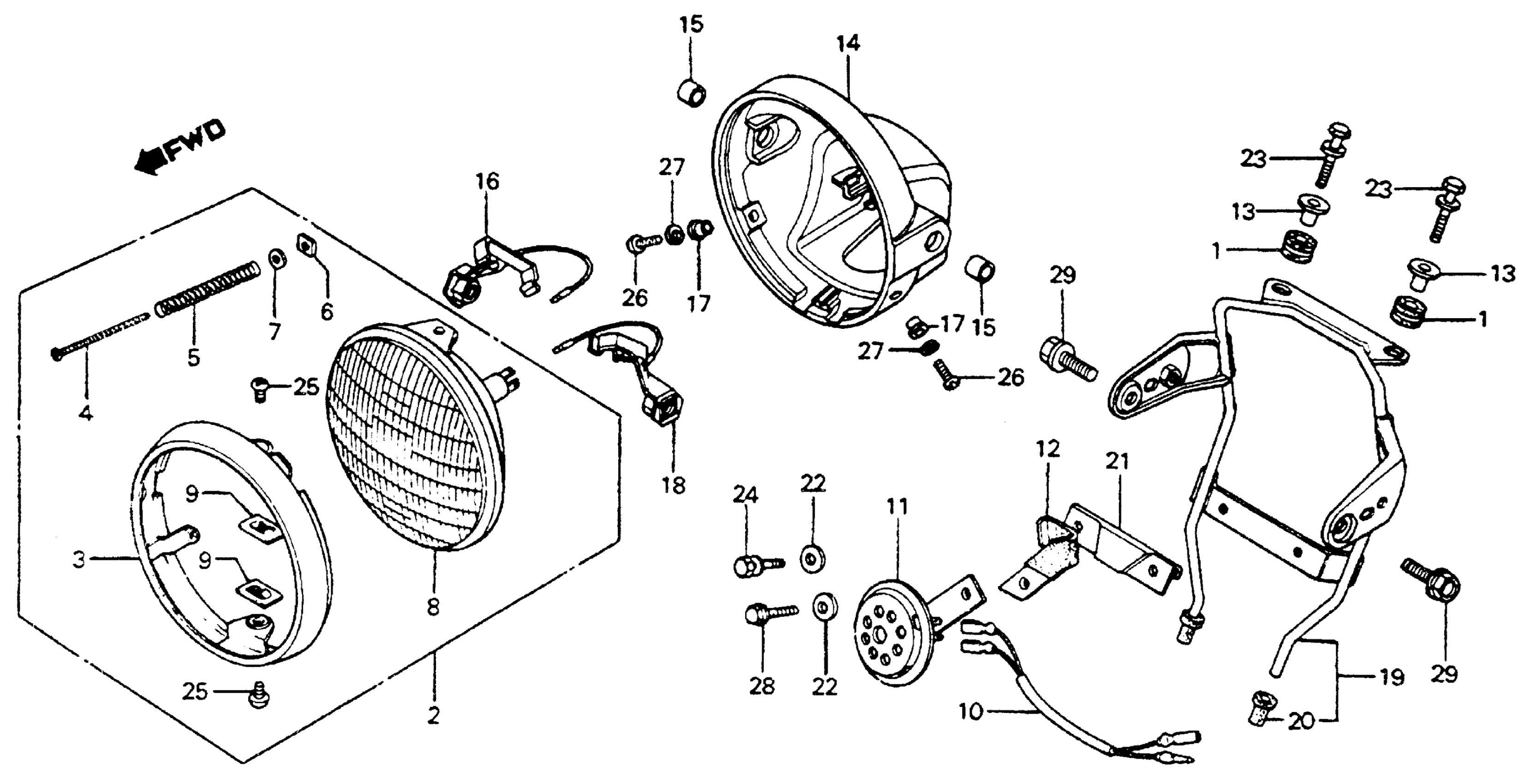

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 HEADLIGHT 81-82 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-413-671

Unavailable

3

RIM, HEADLIGHT

33101-413-671

Unavailable

4

SCREW, BEAM ADJUSTING (4MM)

33103-333-000

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-333-000

$2.20

6

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

7

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

8

HEADLIGHT UNIT (12V 50/35W)

33120-333-670

$78.71

9

NUT, UNIT HOLDER

33128-200-033

Unavailable

10

SUB-WIRE, HORN (NOT AVAILABLE)

38105-115-000

Unavailable

11

HORN (NOT AVAILABLE)

38110-465-771

Unavailable

12

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45467-419-000

Unavailable

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

13

COLLAR, RR. FENDER

61105-428-000

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK)

61301-413-000ZA

$92.44

15

COLLAR, HEADLIGHT CASE

61302-413-000

Unavailable

16

HOLDER, R. CONNECTOR (NOT AVAILABLE)

61303-413-013

Unavailable

17

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

18

HOLDER, L. CONNECTOR (NOT AVAILABLE)

61304-413-013

Unavailable

19

BRACKET, HEADLIGHT CASE This part replaces 61311-465-770.

61311-465-771

Unavailable

19

BRACKET, HEADLIGHT CASE

61311-465-771

Unavailable

20

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

21

COVER, HORN STAY (NOT AVAILABLE)

61312-399-000

Unavailable

22

WASHER (6MM) (NOT AVAILABLE)

90506-634-000

Unavailable

23

BOLT-WASHER (6X28)

93401-06028-00

$1.49

23

BOLT-WASHER (6X28) This part replaces 93481-06028-00.

93401-06028-00

$1.49

24

BOLT-WASHER (8X12)

93481-08012-00

Unavailable

25

SCREW, PAN (5X8)

93500-05008-0H

$1.49

26

SCREW, PAN (5X16)

93500-05016-0B

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (12X25) This part replaces 95700-12025-00.

95701-12025-00

$2.05

29

BOLT, FLANGE (12X25)

95701-12025-00

$2.05
