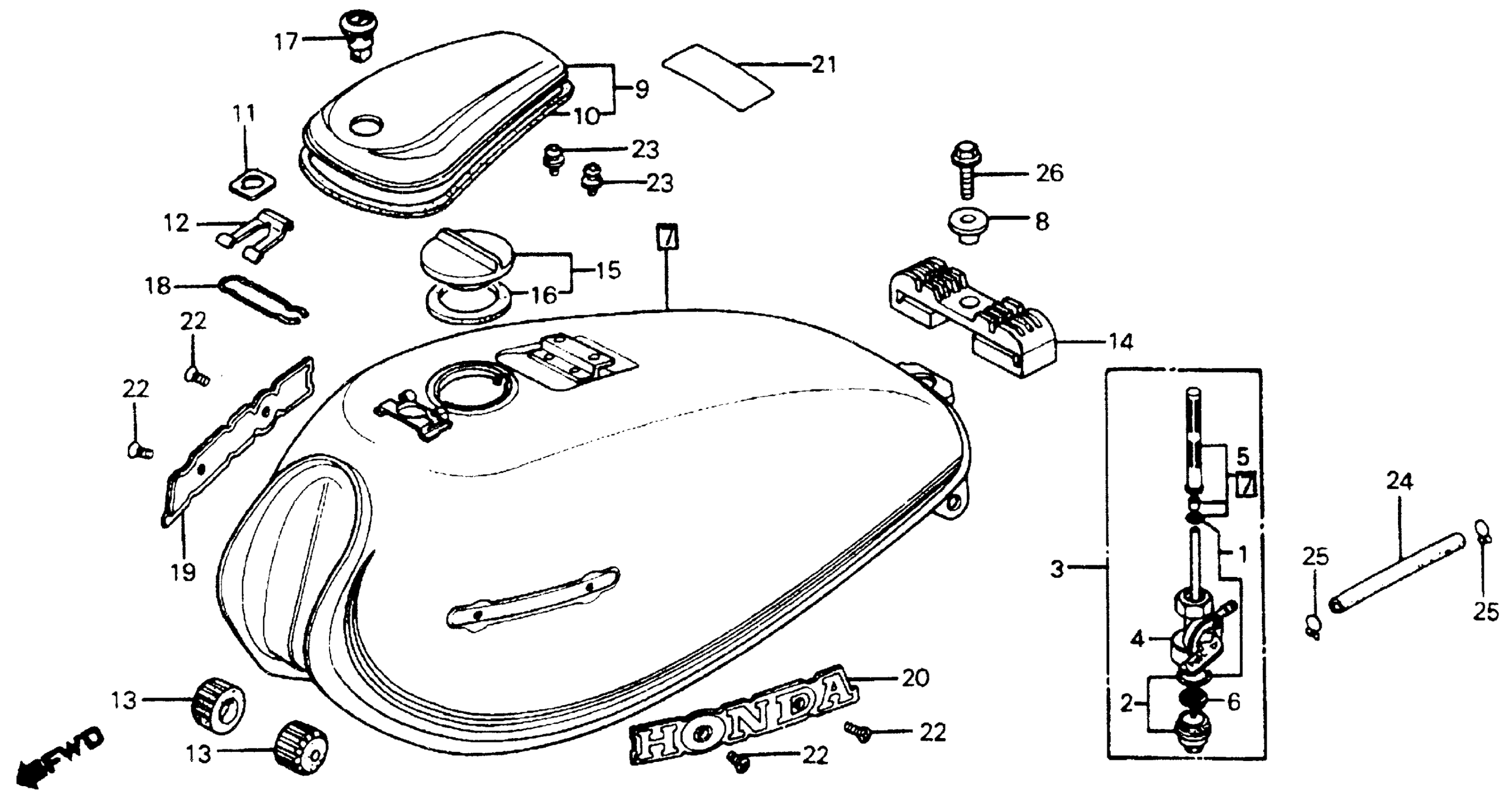

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 FUEL TANK 82 Diagram

#

Description
Price

1

O-RING (NOT AVAILABLE)

16080-195-701

Unavailable

2

CUP, FUEL STRAINER This part replaces 16081-195-701.

16967-GA6-671

$23.28

2

CUP, FUEL STRAINER

16967-GA6-671

$23.28

3

PETCOCK ASSY. This part replaces 16950-195-701.

16950-195-702

$91.67

3

PETCOCK ASSY.

16950-195-702

$91.67

4

BODY, PETCOCK (NOT AVAILABLE)

16951-195-701

Unavailable

5

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

5

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

5

SCREEN SET, FUEL STRAINER This part replaces 16952-195-701.

16952-GB2-721

Unavailable

6

FILTER, CUP

16959-471-831

$9.35

7

TANK SET, FUEL *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

175A1-465-830ZA

Unavailable

8

COLLAR, FUEL TANK MOUNT

17508-357-000

Unavailable

9

LID, FUEL FILLER *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

17511-419-770ZN

Unavailable

10

GASKET, FUEL TANK LID (NOT AVAILABLE)

17518-424-700

Unavailable

11

SPACER, FUEL TANK LID (NOT AVAILABLE)

17525-413-870

Unavailable

12

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

13

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

13

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

14

RUBBER, RR. FUEL TANK

17613-419-000

Unavailable

15

CAP, FUEL FILLER (NOT AVAILABLE)

17620-465-771

Unavailable

16

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

16

GASKET This part replaces 17632-469-000.

17632-176-772

$11.02

17

LOCK, FILLER LID (TYPE1) (NOT AVAILABLE)

37220-414-781

Unavailable

18

SPRING, LOCK SET

37221-390-000

Unavailable

19

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-419-000

Unavailable

20

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-419-000

Unavailable

21

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

22

SCREW, OVAL (3X6)

93700-03006-0G

$1.49

23

SCREW-WASHER (4X6)

93892-04006-00

$1.49

24

BULK HOSE, FUEL (4.5X3000) (4.5X120)

95001-45003-60M

$36.67

25

CLIP, TUBE (B8)

95002-02080

$1.80

26

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
