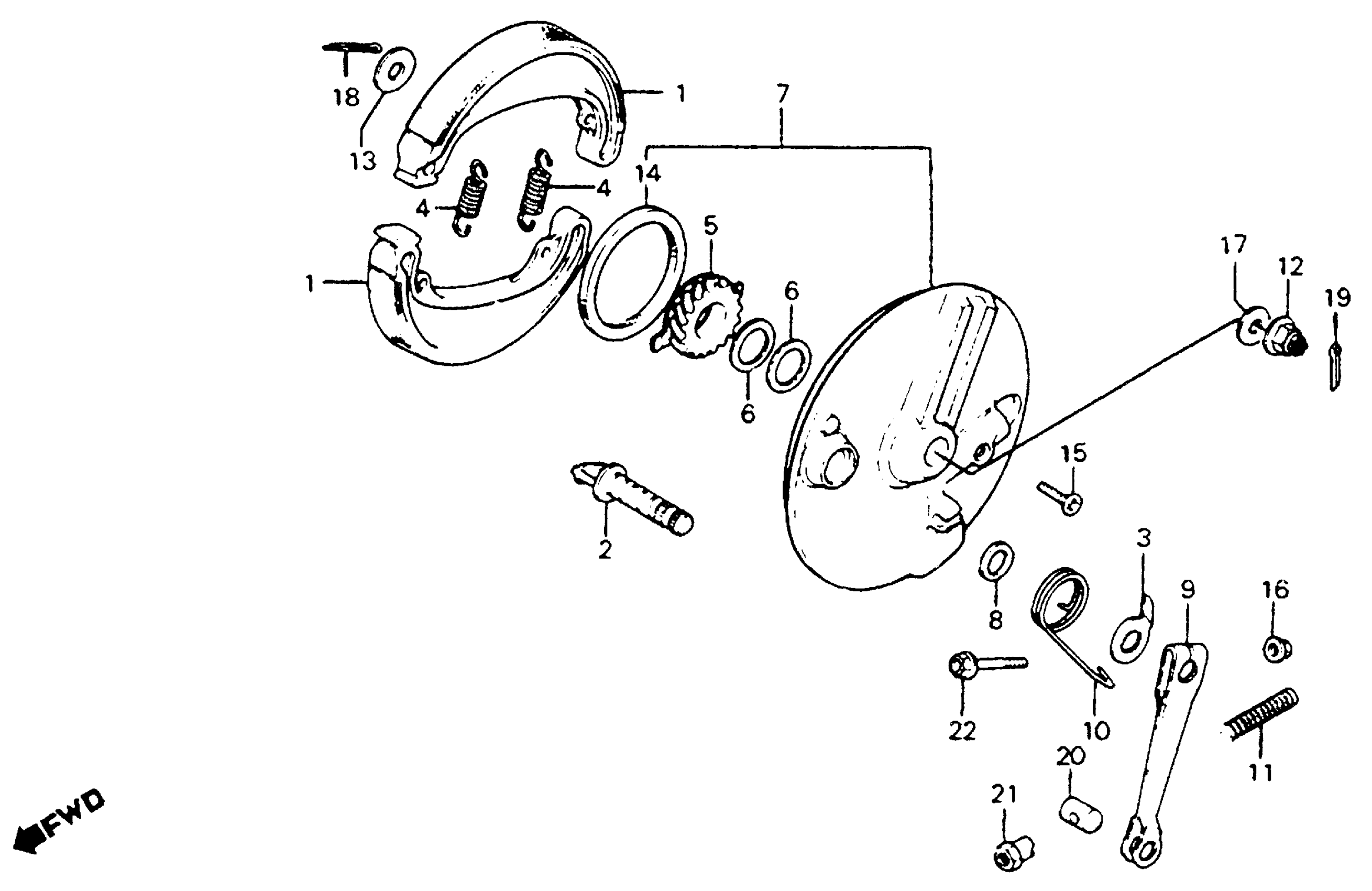

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$37.97

NI

SHOE SET, BRAKE

06450-KC2-680

$37.97

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$37.97

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$37.97

1

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$37.97

2

CAM, RR. BRAKE

43141-ME4-000

Unavailable

2

CAM, RR. BRAKE This part replaces 43141-399-010.

43141-ME4-000

Unavailable

3

INDICATOR, RR. BRAKE

43145-399-000

Unavailable

4

SPRING, RR. BRAKE SHOE

43151-329-000

$2.62

5

GEAR, SPEEDOMETER (YAMADA) (NOT AVAILABLE)

44804-402-003

Unavailable

6

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.13

7

SUB-PANEL, FR. BRAKE (NOT AVAILABLE)

45010-402-700

Unavailable

8

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

9

ARM, FR. BRAKE

45410-402-000

Unavailable

9

ARM, FR. BRAKE (NOT AVAILABLE)

45410-473-000

Unavailable

10

SPRING, FR. BRAKE ARM RETURN

45435-121-010

$5.13

11

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.19

12

NUT, AXLE (14MM)

90305-401-680

$10.47

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

14

OIL SEAL (54X66X7)

91251-230-003

$11.23

15

SCREW, OVAL (5X16)

93700-05016-0A

$0.90

16

NUT, FLANGE (6MM)

94050-06000

$0.59

17

WASHER, FLAT (14MM)

94102-14000

$0.59

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

18

PIN, COTTER (2.0X22)

94201-20220

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

18

PIN, COTTER (2.0X35)

94201-20350

$0.94

18

PIN, COTTER (2.0X22)

94201-29220

$0.94

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

19

PIN, COTTER (3.0X45)

94201-30450

$0.94

20

JOINT, BRAKE ARM

95015-32001

$0.86

21

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

22

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.71

22

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
