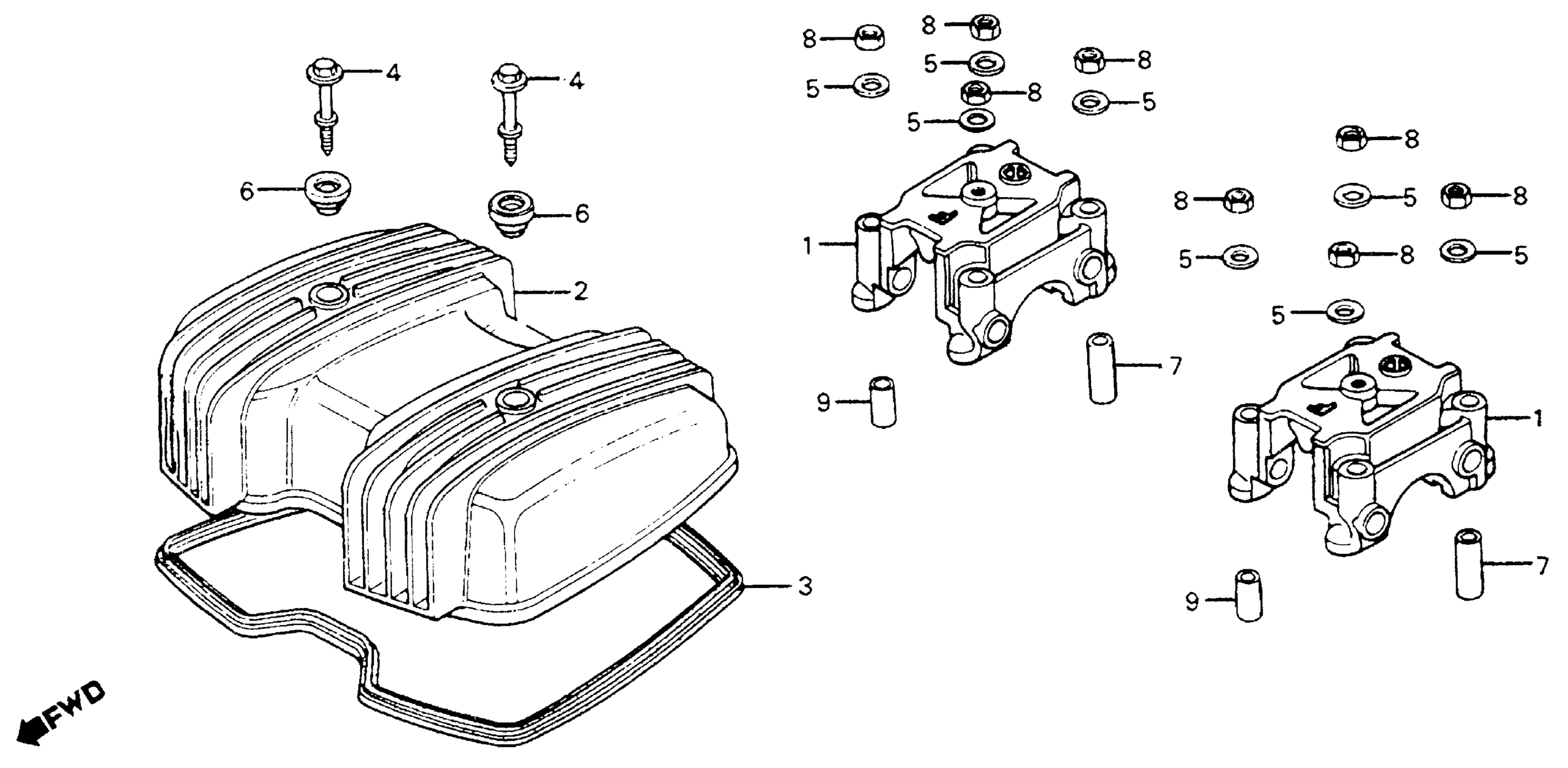

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 CYLINDER HEAD COVER Diagram

#

Description
Price

1

HOLDER, CAMSHAFT This part replaces 12231-399-000.

12231-399-010

$104.78

1

HOLDER, CAMSHAFT

12231-399-010

$104.78

2

COVER, CYLINDER HEAD

12311-399-000

Unavailable

3

GASKET, CYLINDER HEAD COVER

12391-399-000

Unavailable

4

BOLT, SPECIAL (NOT AVAILABLE)

90036-399-003

Unavailable

5

WASHER (8MM)

90483-028-000

$1.40

6

RUBBER, SETTING

90541-371-000

$4.78

7

PIN, DOWEL (10X28)

90701-399-000

$2.99

8

NUT, HEX. (8MM)

94001-08000-0S

$1.31

9

PIN A, DOWEL (10X16)

94301-10160

$2.80
