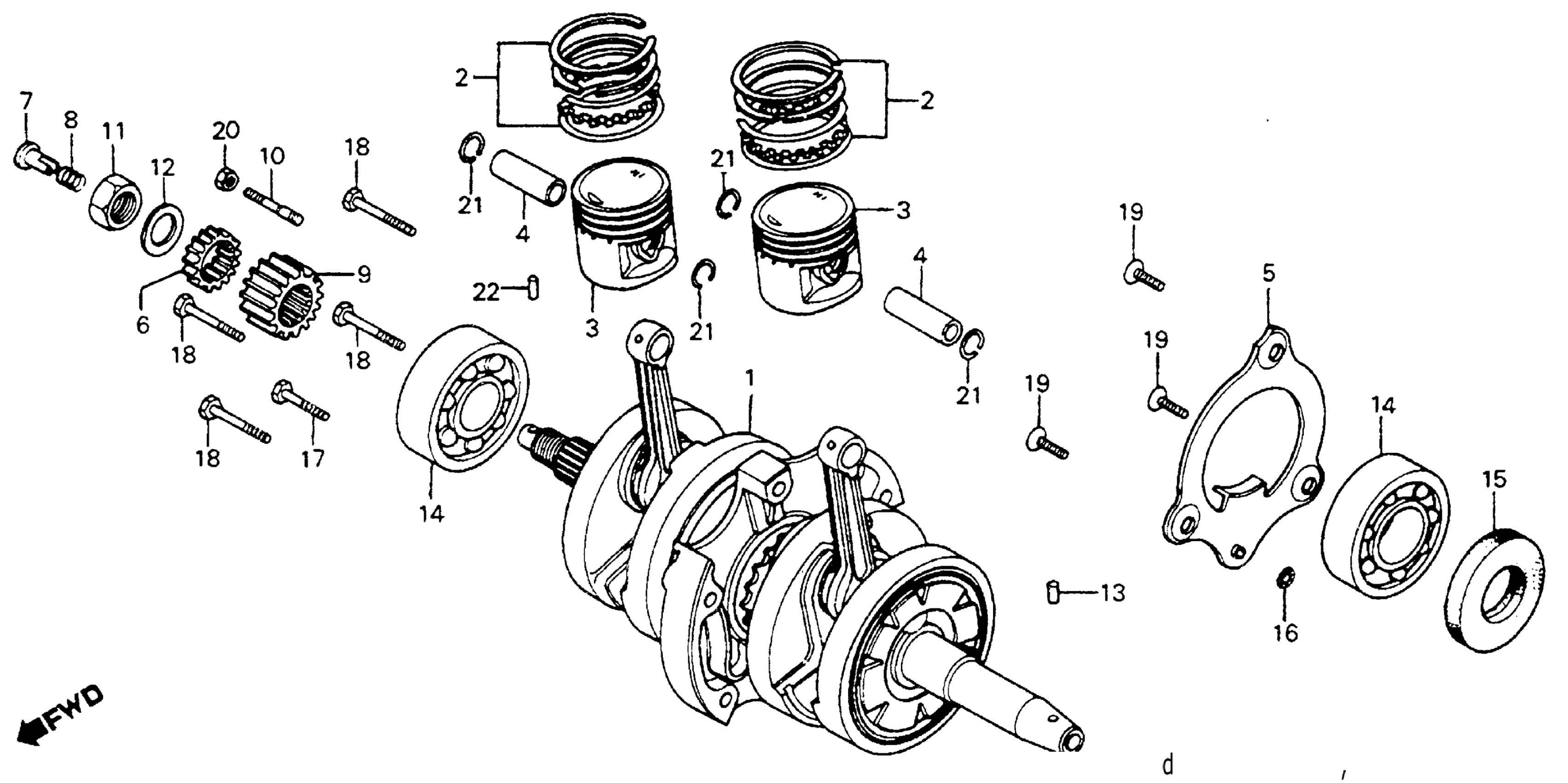

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-464-010.

13000-464-030

Unavailable

1

CRANKSHAFT This part replaces 13000-464-020.

13000-464-030

Unavailable

1

CRANKSHAFT

13000-464-030

Unavailable

2

RING SET, PISTON

13011-KB4-305

$40.71

2

RING SET, PISTON This part replaces 13011-418-003.

13011-KB4-305

$40.71

2

RING SET, PISTON This part replaces 13011-436-000.

13011-KB4-305

$40.71

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13012-418-003.

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13013-418-003.

13013-KB4-305

Unavailable

3

PISTON (STD)

13101-464-003

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-464-000

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-464-000

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

PLATE, OIL THROUGH (NOT AVAILABLE)

13385-399-000

Unavailable

6

GEAR B, OIL PUMP DRIVE (19T) (NOT AVAILABLE)

15335-399-000

Unavailable

7

THROUGH, OIL

15441-149-000

$10.12

8

SPRING, OIL THROUGH

15447-149-000

$2.92

9

GEAR, PRIMARY DRIVE (19T) This part replaces 23121-464-000.

23121-464-010

$69.31

9

GEAR, PRIMARY DRIVE (19T)

23121-464-010

$69.31

10

BOLT, STUD (7X32)

90035-399-000

$2.92

11

NUT, HUB (16MM)

90202-567-000

$4.07

12

WASHER, LOCK

90401-399-000

$5.13

13

PIN, DOWEL (4X4.4)

90703-399-000

$4.36

14

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

14

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-402-700.

91001-071-003

$46.05

15

OIL SEAL (35X52X7) (NOK) This part replaces 91201-402-005.

91201-402-015

$13.79

15

OIL SEAL (35X52X7)

91201-402-015

$13.79

16

O-RING (6X3)

91319-323-000

$2.84

17

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

17

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

17

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

18

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

18

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

18

BOLT, HEX. (6X32) This part replaces 92100-06032.

92101-06032-0A

$1.64

18

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

19

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

19

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

22

ROLLER (2X13.8)

96220-20138

$1.49
