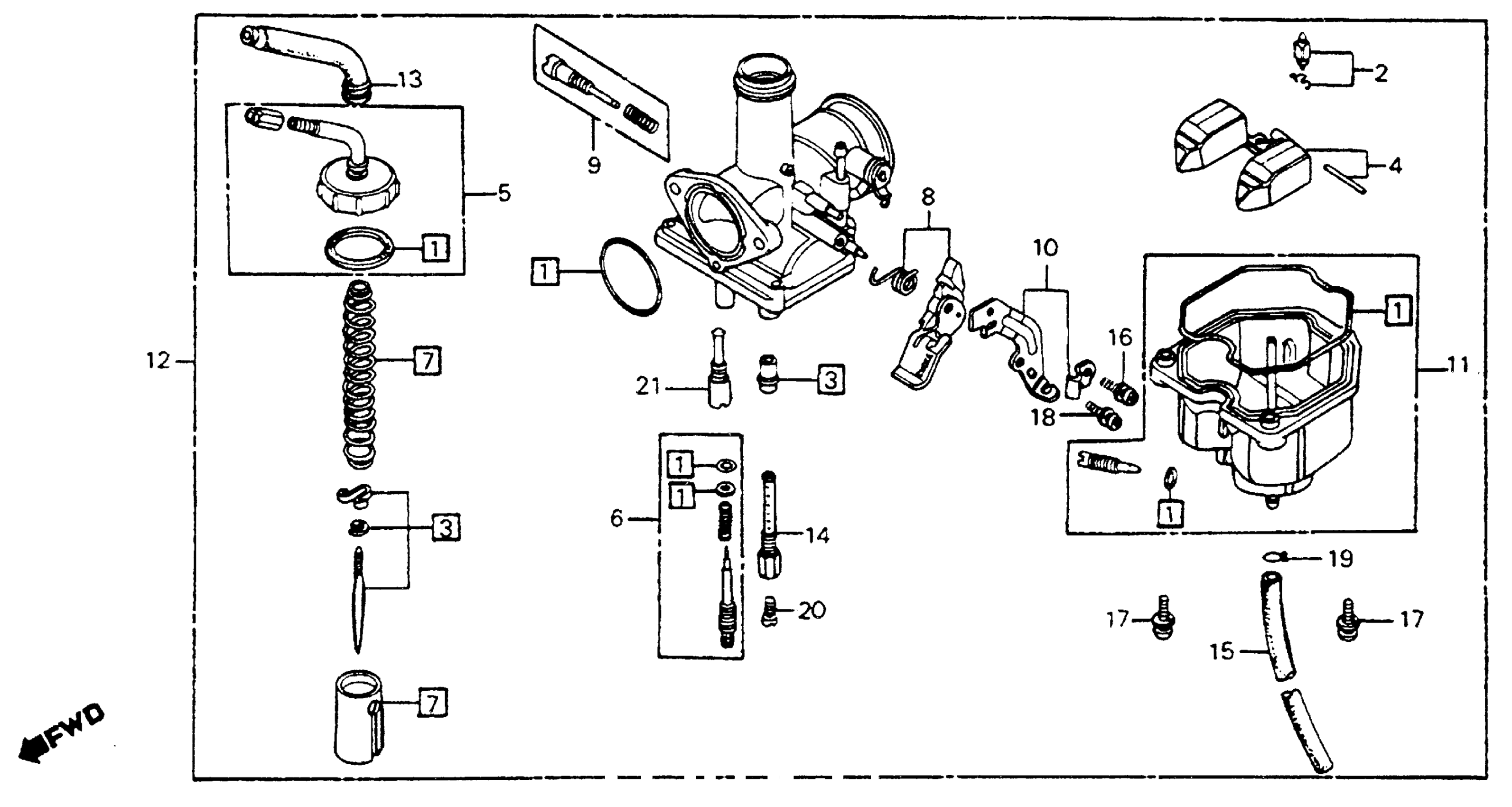

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$21.05

1

GASKET SET

16010-439-305

$21.05

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-465-004

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET This part replaces 16014-418-004.

16014-943-801

Unavailable

5

TOP SET This part replaces 16014-418-014.

16014-943-801

Unavailable

5

TOP SET

16014-464-004

Unavailable

5

TOP SET This part replaces 16014-943-003.

16014-943-801

Unavailable

5

TOP SET

16014-943-801

Unavailable

6

SCREW SET A

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-383-871.

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-465-004

Unavailable

8

LEVER SET, CHOKE

16025-427-004

$29.95

9

SCREW SET B

16028-402-701

Unavailable

10

PLATE SET, STAY

16035-427-004

Unavailable

11

CHAMBER SET, FLOAT | Use up to Engine SN PD23A A This part replaces 16045-399-004.

16045-399-014

Unavailable

11

CHAMBER SET, FLOAT | Use up to Engine SN PD23A A

16045-399-014

Unavailable

11

CHAMBER SET, FLOAT | Use from Engine SN PD23A B

16045-399-014

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 2200089 This part replaces 16100-465-004.

16100-465-014

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-465-014

Unavailable

13

CAP, RUBBER

16118-418-004

Unavailable

14

HOLDER, NEEDLE JET This part replaces 16165-428-671.

16165-428-841

Unavailable

14

HOLDER, NEEDLE JET

16165-428-841

Unavailable

15

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

16

SCREW-WASHER (4X10)

93892-04010-08

$1.49

17

SCREW-WASHER (4X16)

93892-04016-08

$1.49

18

SCREW-WASHER (5X12)

93892-05012-08

$1.49

19

CLIP, TUBE (B6.5)

95002-02650

$1.49

20

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

20

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

21

JET, SLOW (#42) | Use from Engine SN PD23A B

99103-427-0420

Unavailable
