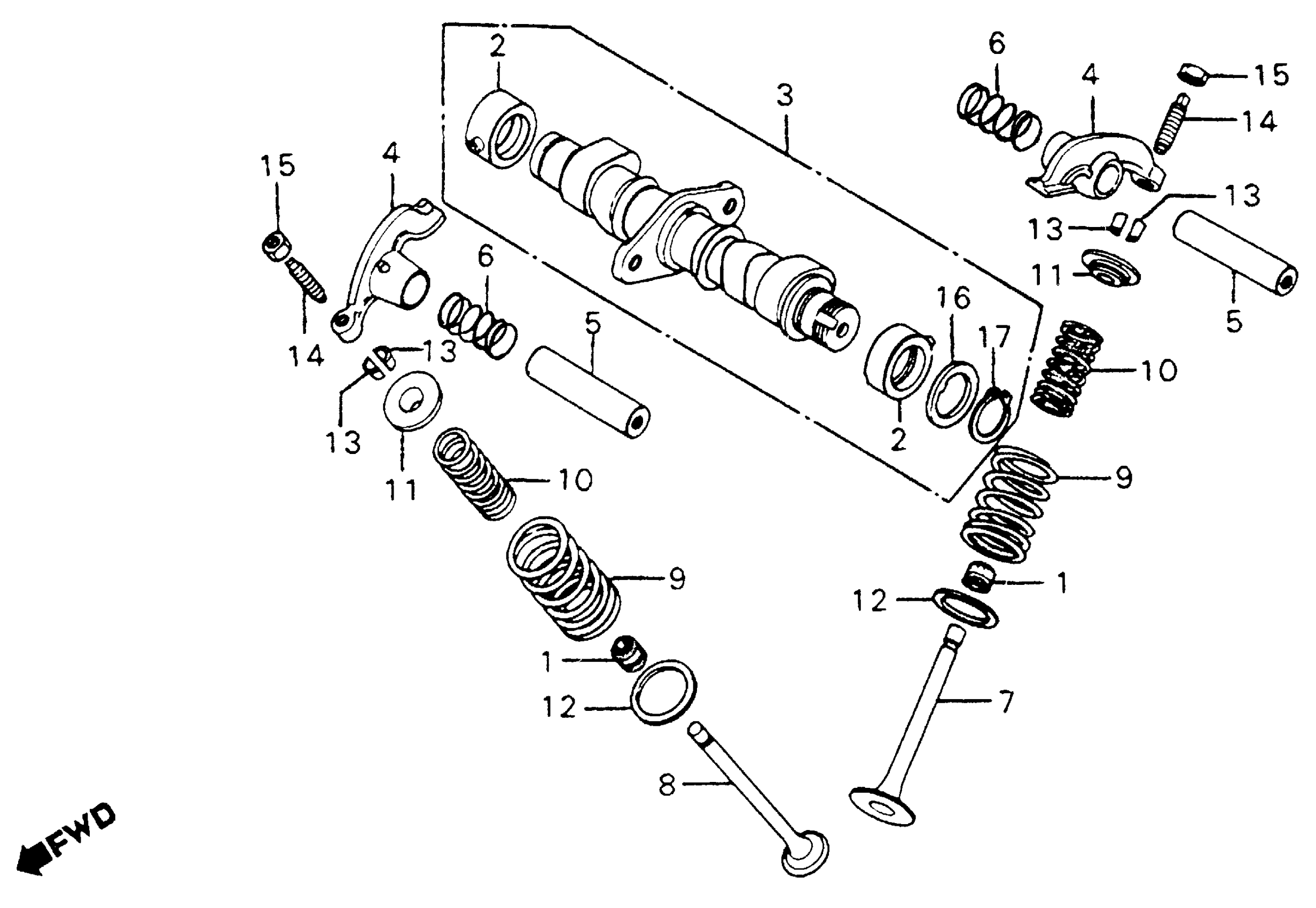

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM

12209-657-000

Unavailable

BUSH, CAMSHAFT

12234-399-010

$37.34

CAMSHAFT SET (NOT AVAILABLE)

14100-464-305

Unavailable

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$41.58

ARM, VALVE ROCKER

14431-116-010

$41.58

SHAFT, VALVE ROCKER ARM

14451-399-000

$15.36

SPRING, ROCKER ARM SIDE

14461-KC2-680

$3.85

SPRING, ROCKER ARM SIDE This part replaces 14461-399-000.

14461-KC2-680

$3.85

VALVE, IN.

14711-399-000

Unavailable

VALVE, EX. This part replaces 14721-116-000.

14721-176-000

$77.90

VALVE, EX.

14721-176-000

$77.90

SPRING, VALVE (OUTER) (NIPPON HATSUJO) (NOT AVAILABLE)

14751-399-005

Unavailable

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-399-005

$8.93

RETAINER, VALVE SPRING

14771-107-020

$7.99

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

COTTER, VALVE (SANKO)

14781-107-003

$2.55

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

SCREW, TAPPET ADJ.

90012-333-000

$2.75

NUT, TAPPET ADJ.

90206-001-000

$1.66

WASHER (20MM)

90402-399-000

$4.00

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49
