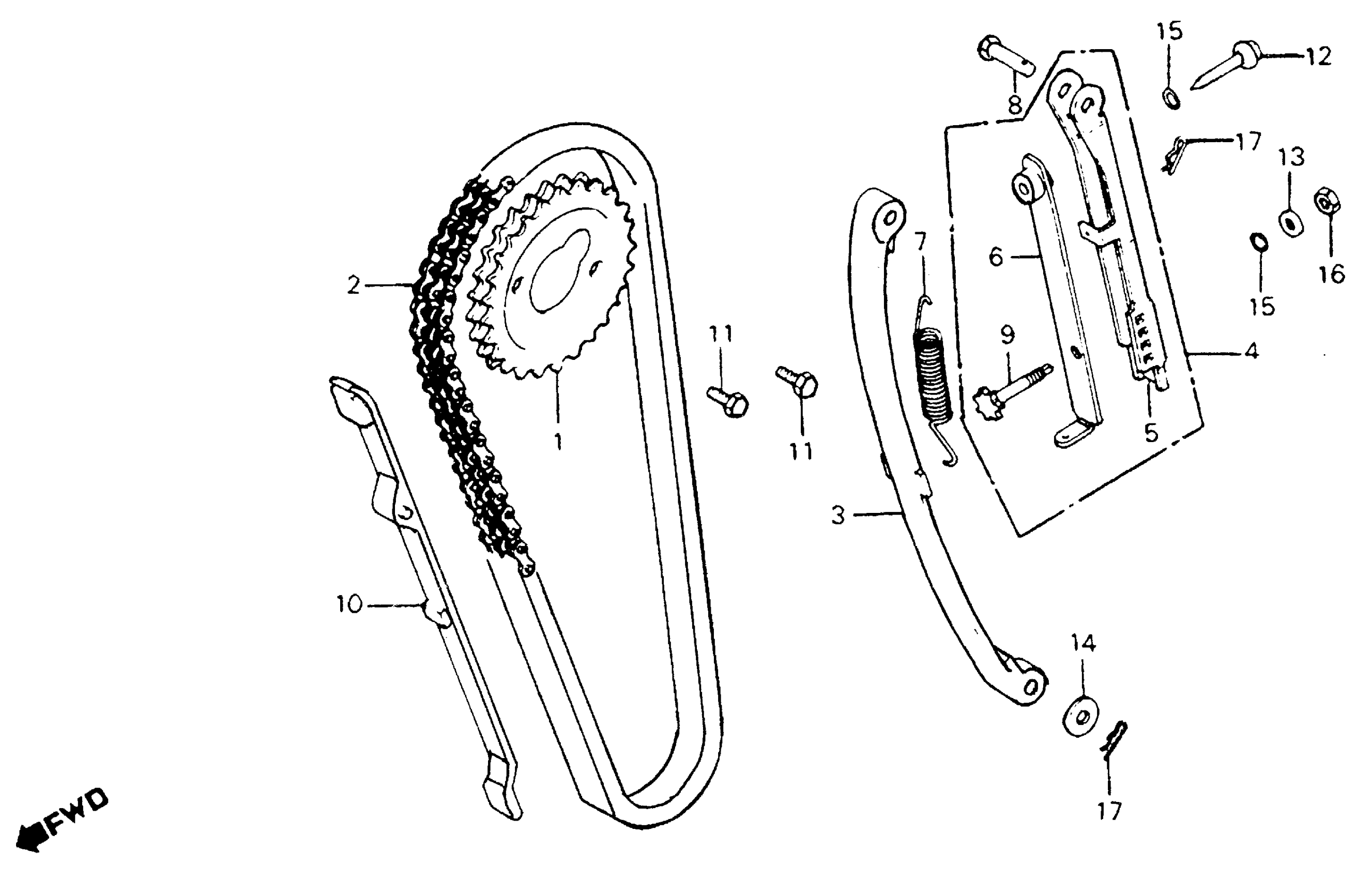

Honda CM200TA (82) TWINSTAR, JPN, VIN# JH2MC010-CM200001 TO JH2MC010-CM204491 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (38T)

14321-399-000

Unavailable

CHAIN, CAM (DID25T-2-94L) (DAIDO)

14401-399-003

Unavailable

TENSIONER, CAM CHAIN This part replaces 14500-464-003.

14500-464-013

Unavailable

TENSIONER, CAM CHAIN

14500-464-013

Unavailable

BASE ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)

14510-399-010

Unavailable

BASE, CAM CHAIN TENSIONER

14511-399-310

Unavailable

PLATE B, CAM CHAIN TENSIONER

14513-399-300

Unavailable

SPRING, CAM CHAIN TENSIONER This part replaces 14515-399-000.

14515-402-730

Unavailable

SPRING, CAM CHAIN TENSIONER

14515-402-730

Unavailable

PIN, CAM CHAIN TENSIONER (NOT AVAILABLE)

14518-413-000

Unavailable

ADJUSTER, CAM CHAIN TENSIONER

14538-399-300

Unavailable

GUIDE, CAM CHAIN

14550-399-000

Unavailable

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.61

BOLT, SPECIAL (6MM) This part replaces 90125-399-000.

90125-KB4-670

$4.61

WASHER, SEALING (6MM)

90442-035-000

$2.21

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

O-RING (5.8X1.9)

91305-323-000

$2.92

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

PIN, LOCK (6MM)

94251-06000

$1.49
