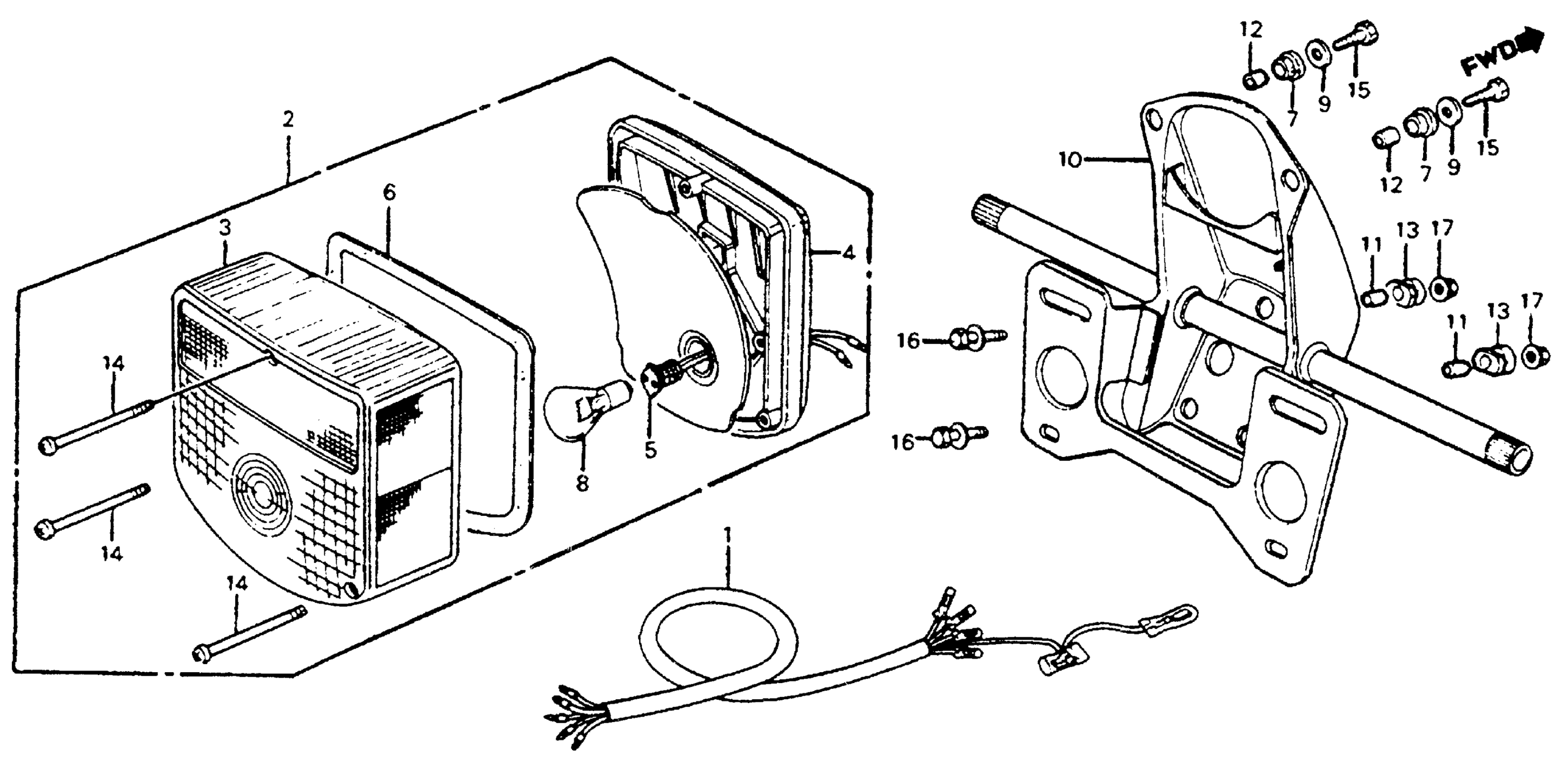

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 TAILLIGHT Diagram

#

Description
Price

1

SUB-WIRE HARNESS This part replaces 32200-464-000.

32200-465-700

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-126-721

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

SOCKET, TAILLIGHT

33703-126-721

Unavailable

5

CABLE, TAILLIGHT

33708-147-003

Unavailable

5

CABLE, TAILLIGHT This part replaces 33708-371-601.

33708-147-003

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

8

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

9

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

10

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-465-670ZA

Unavailable

11

COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)

84706-307-000

Unavailable

12

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

13

RUBBER, FENDER

84905-333-000

$4.22

14

SCREW, TAPPING (4X60)

90147-147-671

$2.70

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

BOLT-WASHER (6X25)

93404-06025-00

$1.49

16

BOLT-WASHER (6X25) This part replaces 93494-06025-00.

93404-06025-00

$1.49

17

NUT, FLANGE (6MM)

94050-06000

$1.49
