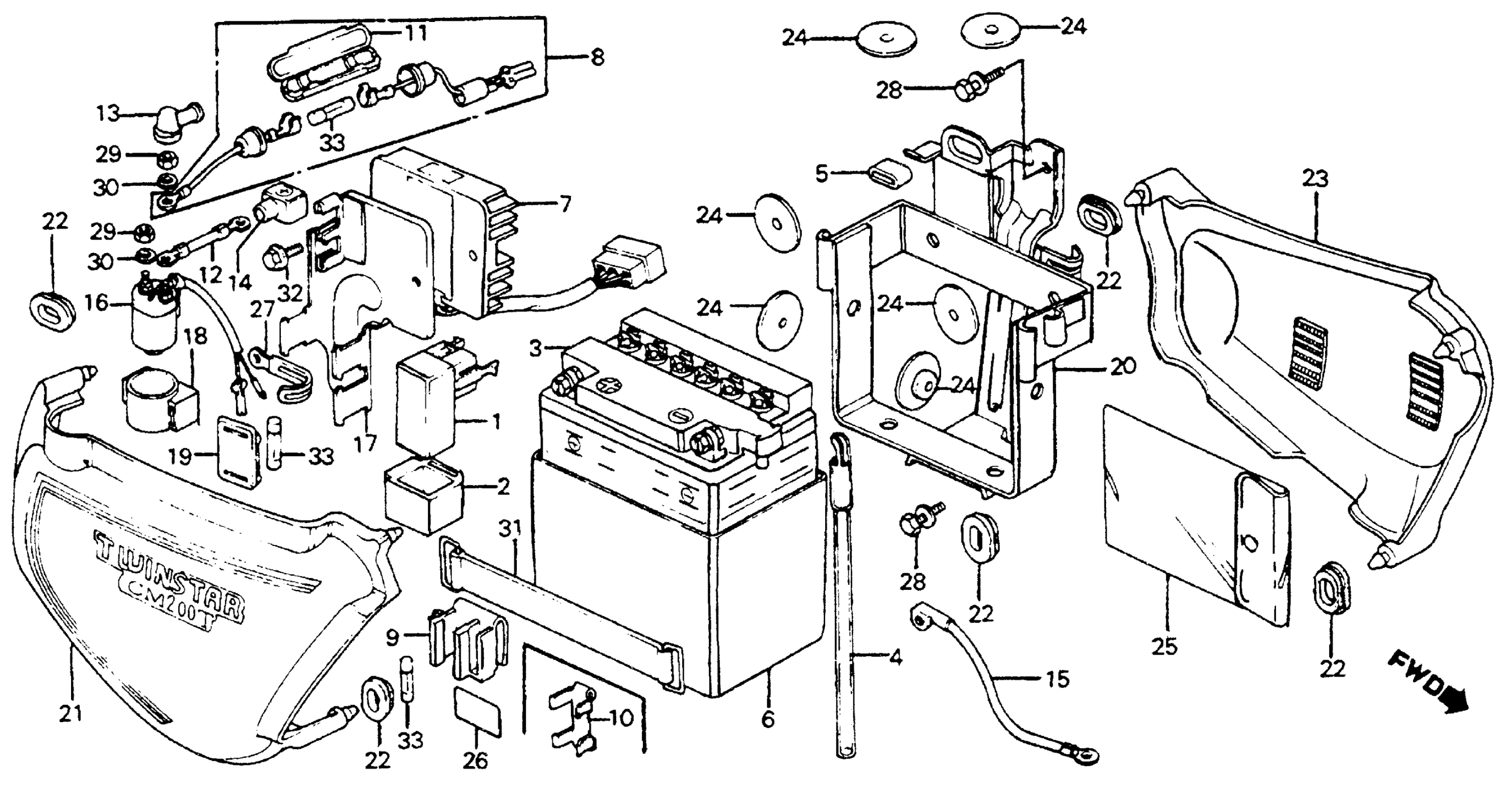

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 SIDE COVER + BATTERY Diagram

#

Description
Price

3

BATTERY ASSY. This part replaces 31500-419-670.

31500-419-671

Unavailable

3

BATTERY ASSY.

31500-419-671

Unavailable

6

BOX, BATTERY MOUNT (NOT AVAILABLE)

31511-402-000

Unavailable

7

RECTIFIER ASSY., REGULATOR This part replaces 31600-402-701.

31600-402-702

Unavailable

7

RECTIFIER ASSY., REGULATOR

31600-402-702

Unavailable

8

SUB-WIRE HARNESS, MAGNETIC (NOT AVAILABLE)

32101-402-700

Unavailable

10

HOLDER, FUSE

32113-361-000

Unavailable

11

CASE, FUSE (20A) (NOT AVAILABLE)

32120-402-000

Unavailable

12

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-303-000.

32401-319-010

Unavailable

12

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-319-000.

32401-319-010

Unavailable

12

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-319-010

Unavailable

13

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

13

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

14

COVER, BATTERY

32412-402-700

Unavailable

15

CABLE, BATTERY GROUND

32601-402-000

Unavailable

16

SWITCH ASSY., STARTER MAGNETIC

35850-402-007

Unavailable

17

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE)

35851-402-700

Unavailable

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

18

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

19

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

20

BOX, BATTERY (NOT AVAILABLE)

50325-402-000

Unavailable

21

COVER, R. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE) COVER, R. SIDE *G102CU*

83500-465-670ZA

Unavailable

21

COVER, R. SIDE *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

83500-465-670ZB

Unavailable

22

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

23

COVER, L. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE) COVER, L. SIDE *G102CU*

83600-465-670ZA

Unavailable

23

COVER, L. SIDE *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

83600-465-670ZB

Unavailable

24

RUBBER, BATTERY BOX

83618-323-000

$2.47

25

BAG, OWNER'S MANUAL

83642-355-000

$26.87

26

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-465-670

Unavailable

28

BOLT-WASHER (6X12)

93401-06012-00

$1.55

28

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

28

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

29

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

29

NUT, HEX. (6MM)

94002-06080-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

30

WASHER, SPRING (6MM)

94111-06800

$1.49

31

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

31

BAND F, BATTERY This part replaces 95012-17000.

95012-17001

$7.23

31

BAND F, BATTERY

95012-17001

$7.23

32

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

32

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

32

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

33

FUSE A (20A)

98200-12000

$1.49
