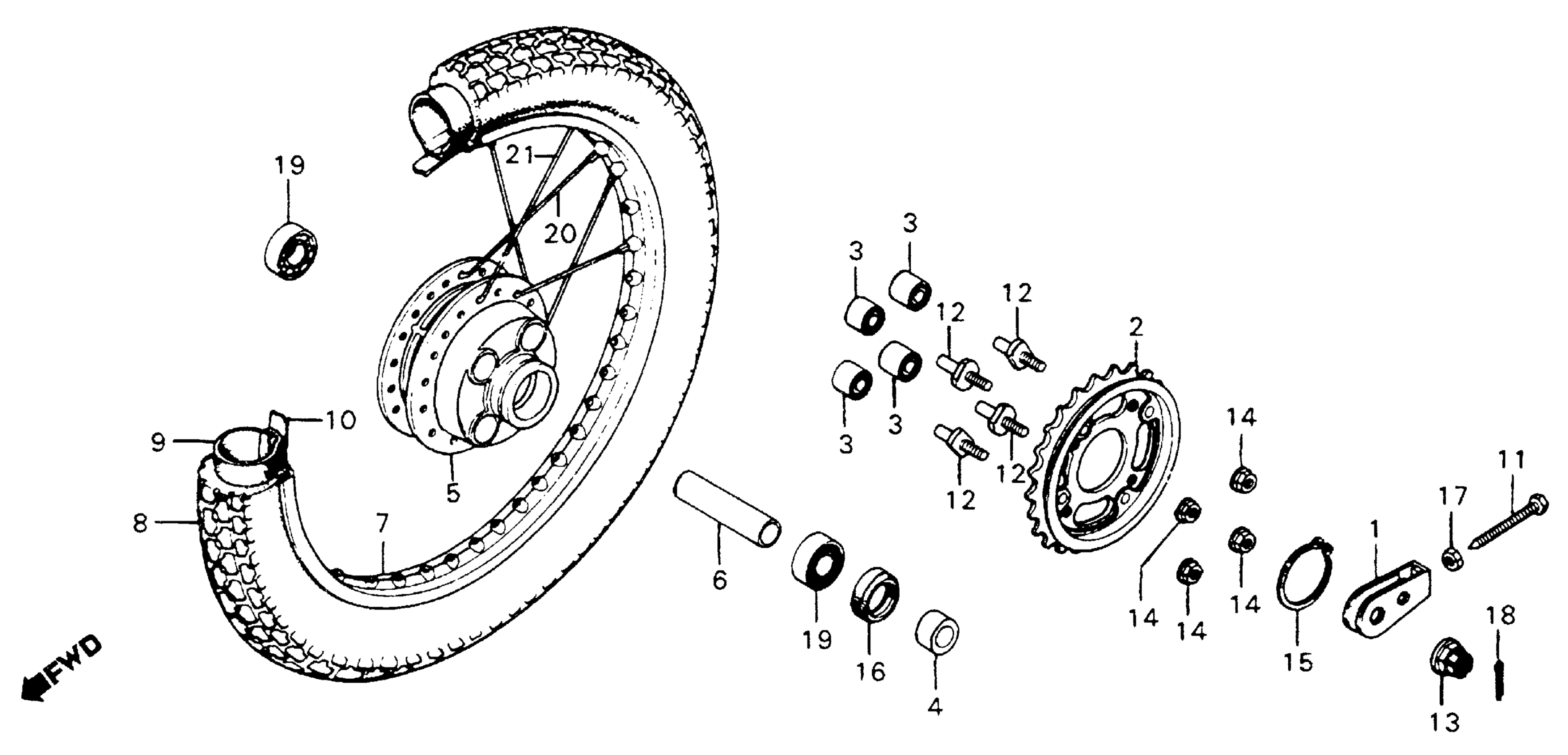

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-399-750

$9.99

2

SPROCKET COMP. (35T) This part replaces 41200-419-000.

41200-419-505

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

4

COLLAR, RR. WHEEL SIDE

42305-397-910

$17.93

5

HUB, RR. WHEEL

42601-424-701

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

7

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE)

42701-419-671

Unavailable

8

TIRE, RR. (3.50-16) (BS)

42711-419-671

Unavailable

8

TIRE, RR. (3.50-16) (BS) This part replaces 42711-419-672.

42711-419-671

Unavailable

9

TUBE, TIRE (3.50-16) (INOUE) This part replaces 42712-419-003.

42712-419-005

Unavailable

9

TUBE, TIRE (3.50-16) (INOUE)

42712-419-005

Unavailable

10

FLAP, FR. TUBE (16) (INOUE)

44713-116-671

$7.61

10

FLAP, FR. TIRE (BS)

44713-118-003

$7.20

11

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

12

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

13

NUT, AXLE (14MM)

90305-401-680

$11.65

14

NUT, FLANGE (10MM)

90308-382-670

$4.07

15

CIRCLIP (58MM)

90664-216-000

$5.55

16

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49

19

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

19

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

20

SPOKE SET B (9X137) | Use from Frame SN 2020797

97285-52114-P0

Unavailable

20

SPOKE B (9X138) | Use up to Frame SN 2020796

97285-52116-10

Unavailable

21

SPOKE SET B (9X136.5) | Use from Frame SN 2020797

97631-52113-P0

Unavailable

21

SPOKE B (9X137.5) | Use up to Frame SN 2020796

97631-52115-10

Unavailable
