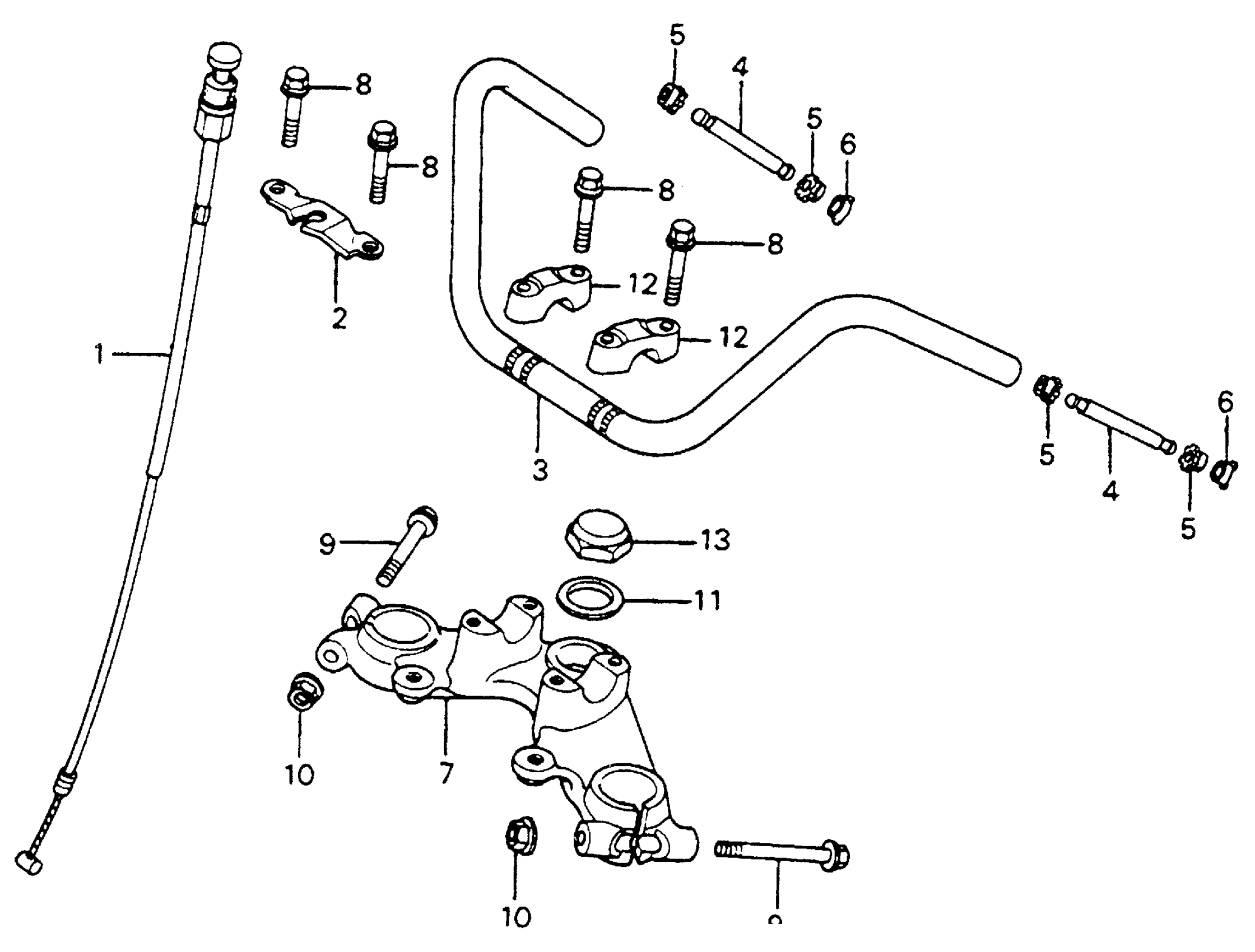

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 HANDLEBAR + TOP BRIDGE Diagram

CABLE, CHOKE (NOT AVAILABLE)

17950-465-670

Unavailable

BRACKET, CHOKE (NOT AVAILABLE)

17966-465-000

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-424-700

Unavailable

WEIGHT, HANDLE | Use from Frame SN 2004398

53106-415-000

Unavailable

RUBBER, HANDLE WEIGHT | Use from Frame SN 2004398

53107-415-000

Unavailable

RING, HANDLE WEIGHT SNAP | Use from Frame SN 2004398

53108-MK4-000

Unavailable

RING, HANDLE WEIGHT SNAP | Use from Frame SN 2004398 This part replaces 53108-415-004.

53108-MK4-000

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-402-700

Unavailable

BOLT, FLANGE (8X36)

90111-362-000

$4.80

BOLT, FLANGE (7X54)

90155-369-000

$6.01

NUT, FLANGE (7MM)

90355-369-000

$4.94

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

WASHER, STEERING STEM

90503-051-870

$2.84

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

NUT, STEERING STEM | Use up to Frame SN 2003478 This part replaces 95020-11100.

90304-159-000

$7.02

NUT, STEERING STEM

90304-159-000

$7.02
