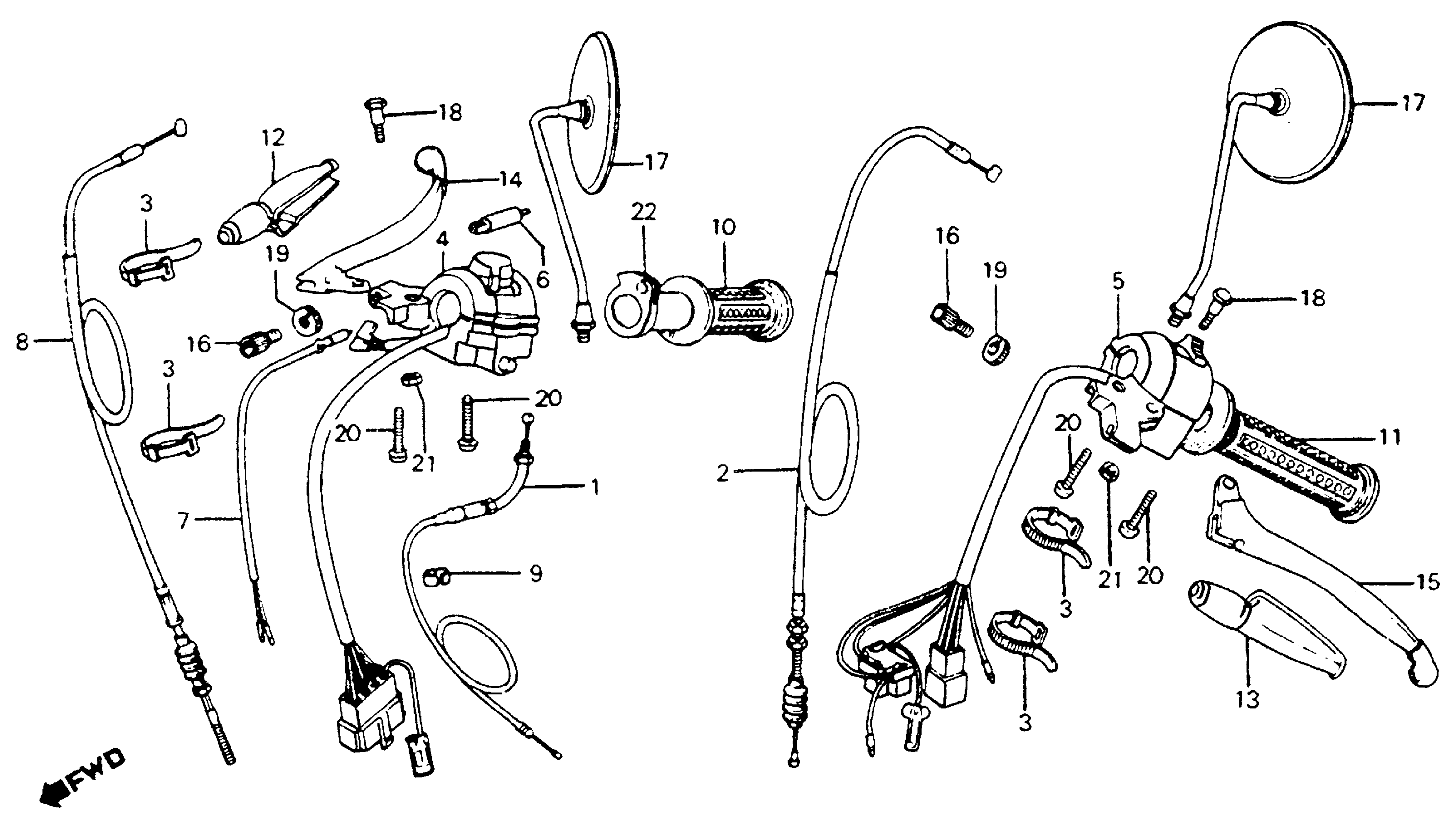

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-465-000

Unavailable

2

CABLE, CLUTCH

22870-419-670

Unavailable

2

CABLE, CLUTCH This part replaces 22870-424-700.

22870-419-670

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35150-465-670

Unavailable

5

SW.ASSY.,WINKER This part replaces 35200-424-700.

35200-424-P00

Unavailable

7

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP SWITCH, FR. STOP

35340-329-003

$17.46

7

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

8

CABLE, FR. BRAKE | Use up to Frame SN 2015322 This part replaces 45450-KB4-000.

45450-424-701

$28.44

8

CABLE, FR. BRAKE | Use up to Frame SN 2015322 This part replaces 45450-424-700.

45450-424-701

$28.44

8

CABLE, FR. BRAKE | Use up to Frame SN 2015322

45450-424-701

$28.44

8

CABLE, FR. BRAKE

45450-424-701

$28.44

9

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

9

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

10

GRIP, R. HANDLEBAR

53165-419-670

Unavailable

11

GRIP, L. HANDLEBAR

53166-419-670

Unavailable

12

COVER, R. HANDLEBAR LEVER

53171-402-700

$9.96

13

COVER, L. HANDLEBAR LEVER

53172-402-700

$7.41

14

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

15

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

15

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

15

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

16

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

17

MIRROR, R.

88110-447-000

Unavailable

18

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

19

NUT, FIXING

90321-315-670

$7.31

19

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

20

SCREW, PAN (5X25)

93500-05025-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

PIPE A, THROTTLE GRIP

95014-51100

$17.62
