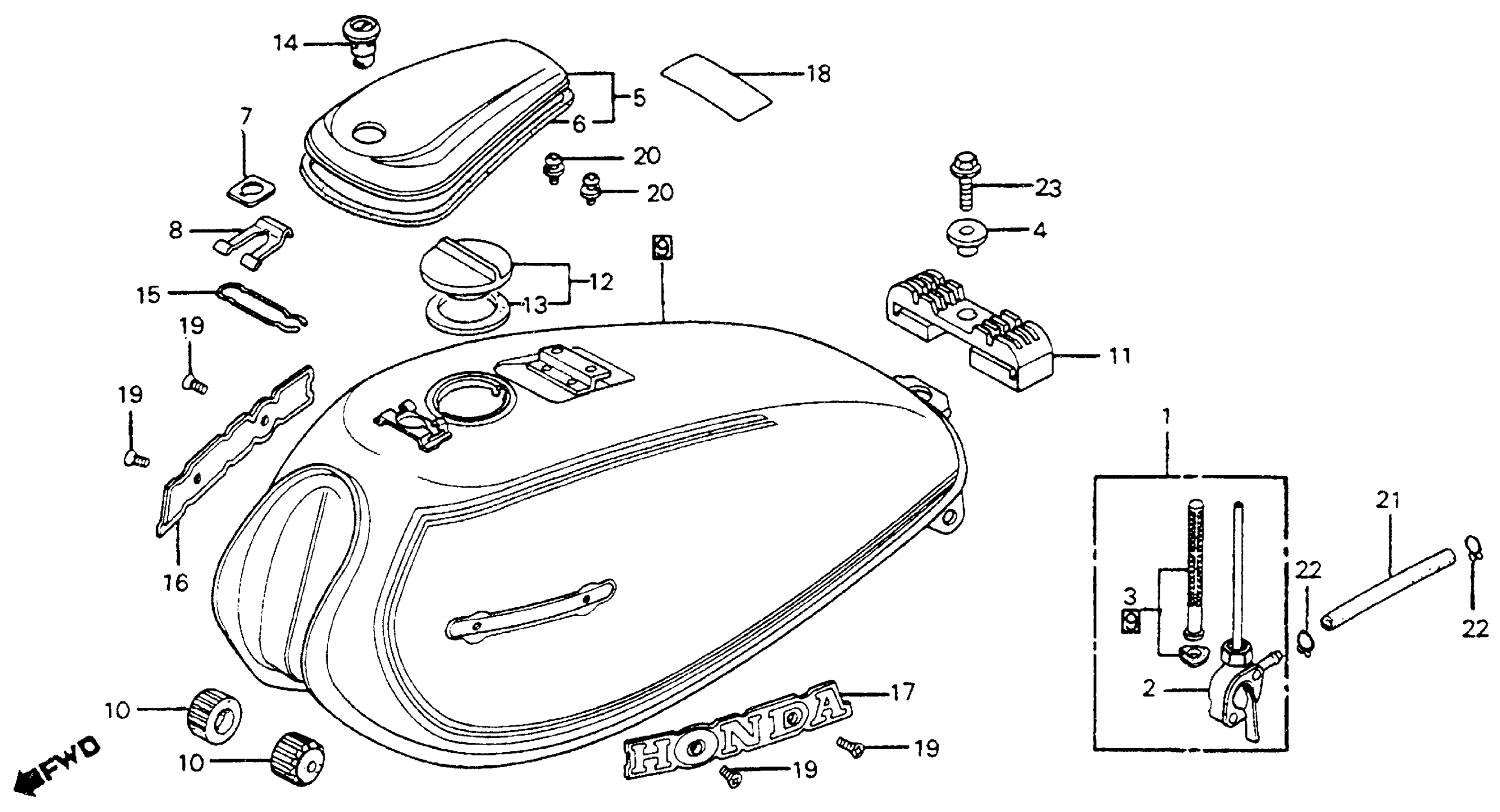

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 FUEL TANK 80-81 Diagram

#

Description
Price

1

PETCOCK ASSY. | Use up to Frame SN 2014862 This part replaces 16950-377-701.

16950-KCP-J01

$59.98

1

PETCOCK ASSY. This part replaces 16950-377-702.

16950-KCP-J01

$59.98

1

PETCOCK ASSY. This part replaces 16950-377-703.

16950-KCP-J01

$59.98

2

BODY, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 2014862 This part replaces 16951-377-701.

16951-377-703

Unavailable

2

BODY, PETCOCK (HONDA KIKAKI) This part replaces 16951-377-702.

16951-377-703

Unavailable

2

BODY, PETCOCK (HONDA KIKAKI)

16951-377-703

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-377-701.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

4

COLLAR, FUEL TANK MOUNT

17508-357-000

Unavailable

5

LID, FUEL TANK *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE) LID, FUEL TANK *R8CS*

17511-419-770ZH

Unavailable

5

LID, FUEL TANK *R8CS* (CANDY PRESTO RED)

17511-419-770ZJ

Unavailable

6

GASKET, FUEL TANK LID (NOT AVAILABLE)

17518-399-000

Unavailable

7

SPACER, FUEL TANK LID (NOT AVAILABLE)

17525-413-870

Unavailable

8

SPRING, LOCK SET

37221-390-000

Unavailable

9

TANK SET, FUEL *R8CS* (CANDY PRESTO RED) TANK SET, FUEL *G102CU*

17540-465-670ZA

Unavailable

9

TANK SET, FUEL *G102CU* (CANDY HOLLY GREEN) TANK SET, FUEL *R8CS*

17540-465-670ZB

Unavailable

9

TANK SET, FUEL *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE) TANK SET, FUEL *G102CU*

17540-465-671ZA

Unavailable

9

TANK SET, FUEL *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

17540-465-671ZB

Unavailable

10

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

10

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

11

RUBBER, RR. FUEL TANK

17613-419-000

Unavailable

12

CAP, FUEL TANK This part replaces 17620-399-000.

17620-399-010

Unavailable

12

CAP, FUEL TANK

17620-399-010

Unavailable

13

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

13

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

14

LOCK, FILLER LID (TYPE1) (NOT AVAILABLE)

37220-414-781

Unavailable

15

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

16

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-419-000

Unavailable

17

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-419-000

Unavailable

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

19

SCREW, OVAL (3X6)

93700-03006-0G

$1.49

20

SCREW-WASHER (4X6)

93892-04006-00

$1.49

21

BULK HOSE, FUEL (4.5X3000) (4.5X120)

95001-45003-60M

$36.67

22

CLIP, TUBE (B8)

95002-02080

$1.80

23

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

23

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
