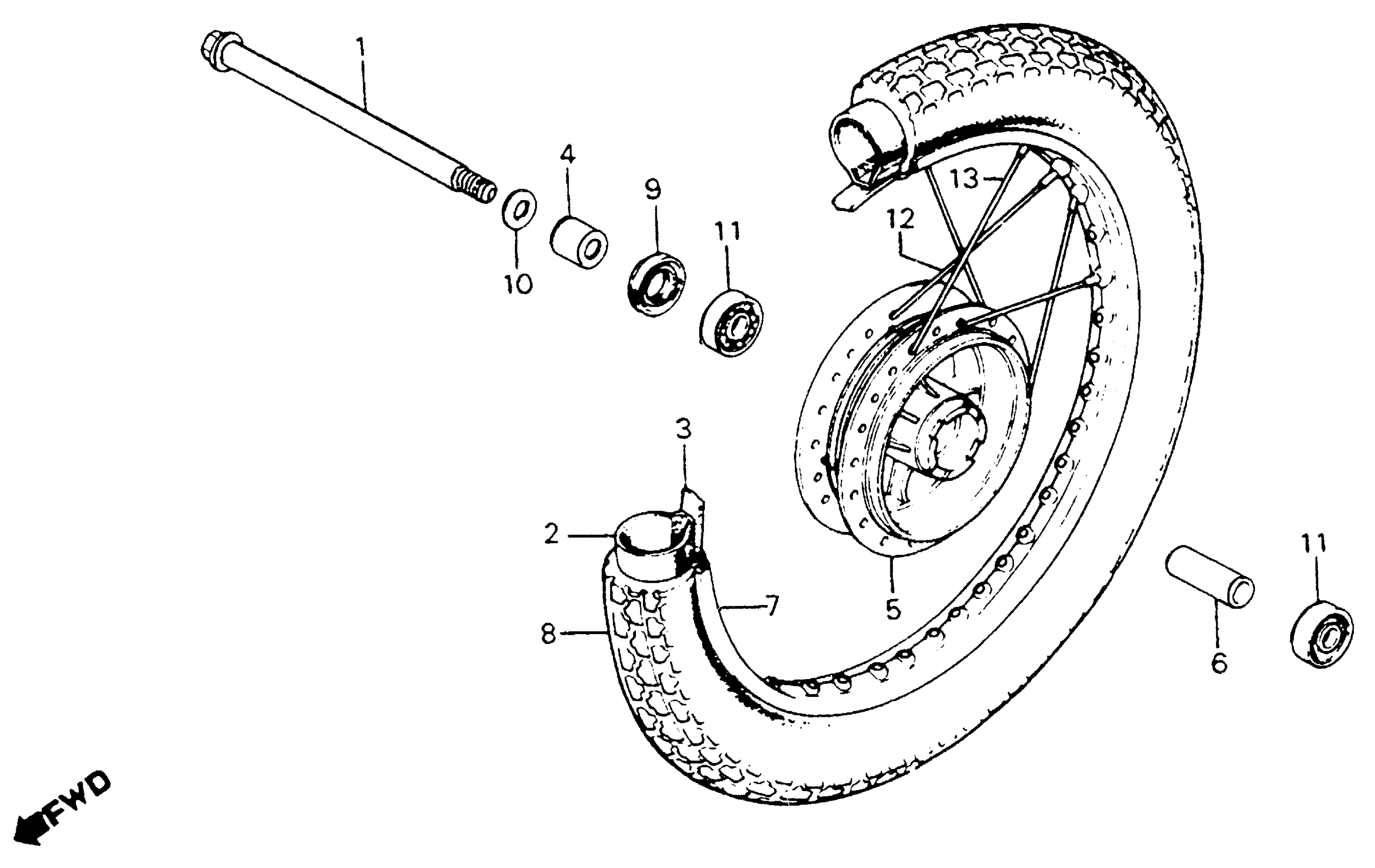

Honda CM200TA (80) TWINSTAR, JPN, VIN# MC01-2000028 TO MC01-2022424 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (USED AS FR. FOR THIS BLOCK)

42301-401-680

Unavailable

2

TUBE, TIRE (2.75-17) (INOUE) This part replaces 0Y400-03310.

42712-102-761

Unavailable

2

TUBE, TIRE (2.75-17) (INOUE) This part replaces 08400-03310.

42712-102-761

Unavailable

2

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

2

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

2

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-303-003.

42712-102-761

Unavailable

3

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

3

FLAP, TIRE (17) (BS)

44713-200-003

Unavailable

4

COLLAR, FR. WHEEL SIDE

44312-402-000

$13.11

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-402-701

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-230-000

$9.90

7

RIM, FR. WHEEL This part replaces 44701-419-671.

44701-419-672

Unavailable

8

TIRE, FR. (3.00-17) (BS)

44711-419-671

Unavailable

8

TIRE, FR. (3.00-17) (BS) This part replaces 44711-419-672.

44711-419-671

Unavailable

9

OIL SEAL (26X42X7)

91252-230-003

$10.56

10

WASHER, FLAT (14MM)

94102-14000

$1.49

11

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

11

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

12

SPOKE SET A (10X148) (NOT AVAILABLE) SPOKE A (10X149) | Use from Frame SN 2020797

97230-41136-P0

Unavailable

12

SPOKE A (10X149) | Use up to Frame SN 2020796

97230-41138-10

Unavailable

13

SPOKE SET A (10X147.5) (NOT AVAILABLE) SPOKE A (10X148.5) | Use from Frame SN 2020797

97716-41135-P0

$2.15

13

SPOKE A (10X148.5) (NOT AVAILABLE) | Use up to Frame SN 2020796

97716-41137-10

Unavailable
