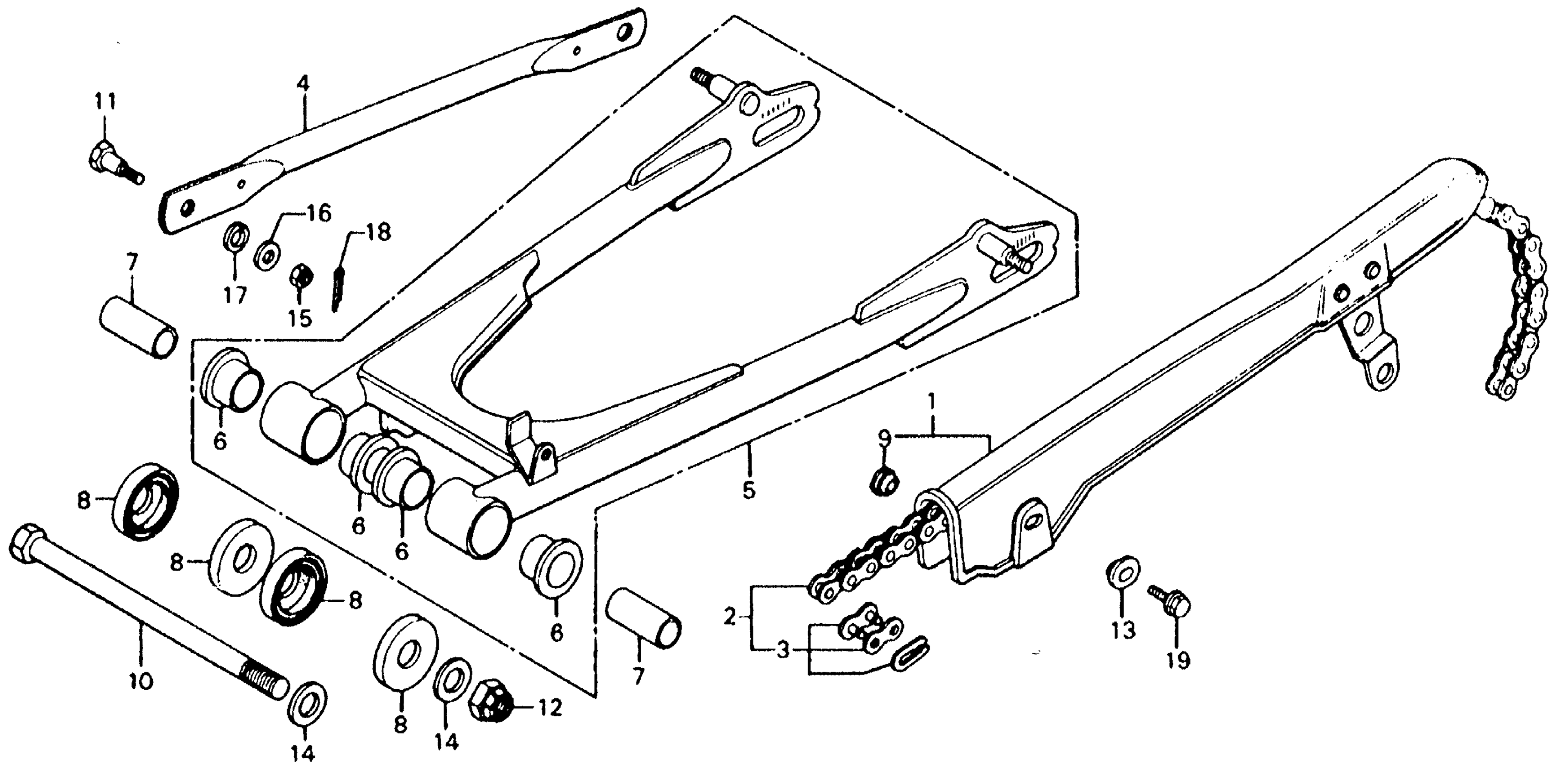

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-399-000

Unavailable

2

CHAIN, DRIVE (428HD-112) (DAIDO) (NOT AVAILABLE) This part replaces 40530-418-711.

40530-464-003

Unavailable

2

CHAIN, DRIVE (428HD-112) (DAIDO) (NOT AVAILABLE)

40530-464-003

Unavailable

3

MASTER LINK (DAIDO)

40531-418-711

$7.10

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-360-000

Unavailable

5

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-399-600ZA

Unavailable

6

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$19.38

6

BUSH, SWINGARM

52109-KC1-003

$19.38

7

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52121-354-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

GROMMET, SWITCH HOLE (10MM)

66892-567-680

Unavailable

10

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-402-000

Unavailable

11

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

12

NUT, LOCK (14MM)

90354-268-000

$6.78

13

WASHER (6X9)

90513-323-000

$1.84

14

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-10000

$1.49

18

PIN, COTTER (2.0X15)

94201-20150

$1.49

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
