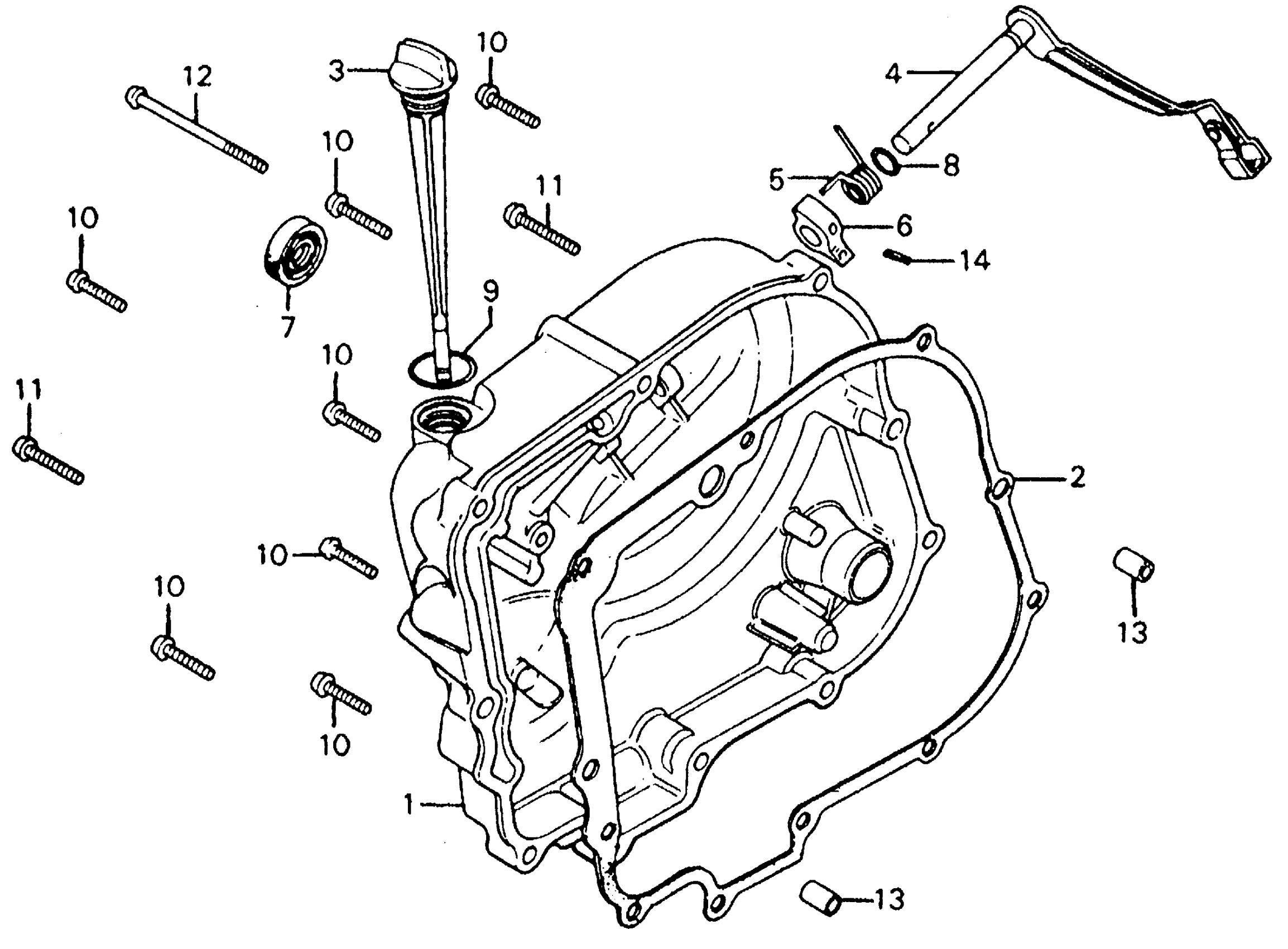

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-402-000

Unavailable

2

GASKET, R. This part replaces 11393-KBG-771.

11393-KBG-773

$20.77

2

GASKET, R. This part replaces 11393-KB4-306.

11393-KBG-773

$20.77

2

GASKET, R. This part replaces 11393-KB4-670.

11393-KBG-773

$20.77

2

GASKET, R. This part replaces 11393-KC2-760.

11393-KBG-773

$20.77

2

GASKET, R. This part replaces 11393-399-000.

11393-KBG-773

$20.77

3

DIPSTICK, OIL This part replaces 15650-399-000.

15650-471-000

Unavailable

3

DIPSTICK, OIL

15650-471-000

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22810-399-000

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22816-399-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-399-000

$11.52

7

OIL SEAL (18X29X7)

91204-286-003

$4.31

8

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

8

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

8

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

9

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

9

O-RING (18X3)

91307-035-000

$2.92

10

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

10

SCREW, PAN (6X28)

93500-06028-0A

$1.49

11

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

11

SCREW, PAN (6X35)

93500-06035-0A

$1.49

12

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

12

SCREW, PAN (6X70)

93500-06070-0A

$1.49

13

PIN A, DOWEL (8X14)

94301-08140

$2.25

14

PIN, SPRING (4X16) | Use up to Engine SN 2109636

94305-40162

$2.03

14

PIN, SPRING (4X18) | Use from Engine SN 2109637

94305-40182

$1.49
