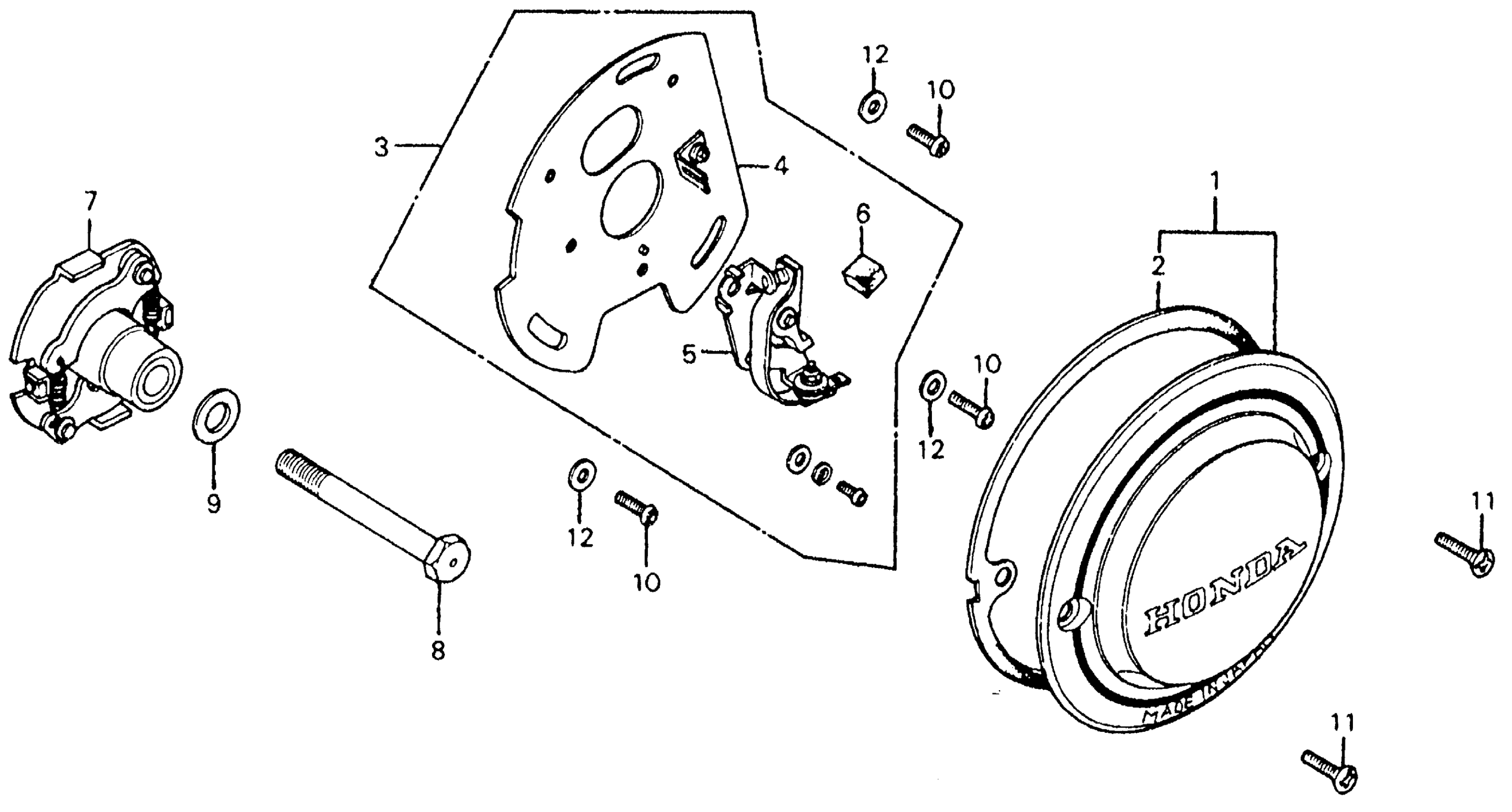

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 POINTS + ADVANCER Diagram

#

Description

Price

1

COVER, ALTERNATOR (NOT AVAILABLE)

11430-402-000

Unavailable

2

GASKET This part replaces 11432-402-300.

11432-402-306

Unavailable

3

POINTS ASSY. (TOYO) (NOT AVAILABLE)

30200-402-004

Unavailable

4

PLATE, POINTS BASE (NOT AVAILABLE)

30201-402-000

Unavailable

5

POINTS, L. CYLINDER

30202-399-000

$27.89

6

FELT, OIL (NOT AVAILABLE)

30205-399-004

Unavailable

7

ADVANCER ASSY., SPARK

30220-402-014

Unavailable

8

BOLT, ROTOR SETTING (NOT AVAILABLE)

90123-402-000

Unavailable

9

WASHER (10MM)

90410-KR0-000

$2.67

9

WASHER (10MM) This part replaces 90426-122-000.

90410-KR0-000

$2.67

10

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

10

SCREW, PAN (5X12)

93500-05012-0A

$1.49

11

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

12

WASHER, PLAIN (5MM)

94101-05000

$1.49
