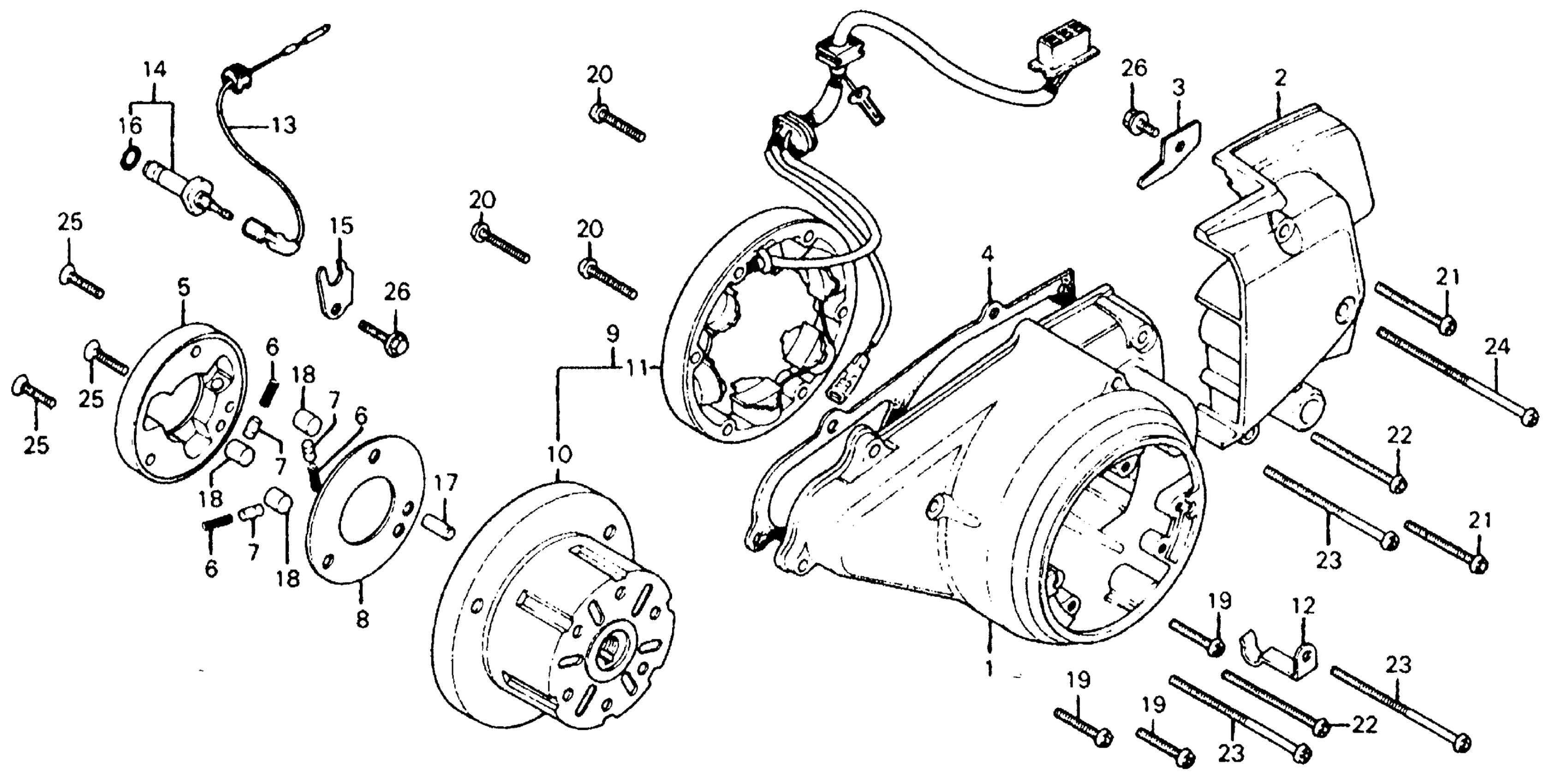

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-402-000

Unavailable

2

COVER, L. RR. CRANKCASE

11361-418-000

Unavailable

3

GUIDE, DRIVE CHAIN (NOT AVAILABLE)

11365-399-000

Unavailable

4

GASKET, L. SIDE SPACER This part replaces 11395-402-000.

11395-402-010

Unavailable

4

GASKET, L. SIDE SPACER

11395-402-010

Unavailable

5

CLUTCH, STARTER (OUTER)

28120-201-040

$87.06

6

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

8

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

9

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-418-005

Unavailable

10

ROTOR (HITACHI) (NOT AVAILABLE)

31110-418-005

Unavailable

11

STATOR (HITACHI) (NOT AVAILABLE)

31120-418-005

Unavailable

12

CLIP, STARTER MOTOR CABLE (NOT AVAILABLE)

32911-402-000

Unavailable

13

SUB-WIRE, NEUTRAL SWITCH (NOT AVAILABLE)

32975-399-000

Unavailable

14

CONTACT ASSY., NEUTRAL SWITCH (DAIICHI) (NOT AVAILABLE)

35750-350-005

Unavailable

15

PLATE, NEUTRAL SWITCH SETTING

35752-KEN-620

$5.64

15

PLATE, NEUTRAL SWITCH SETTING This part replaces 35752-399-000.

35752-KEN-620

$5.64

16

O-RING (7X1.6)

37551-001-000

Unavailable

17

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

17

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

18

ROLLER (10.2X9.5)

91101-253-020

$3.98

19

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

19

SCREW, PAN (6X22)

93500-06022-0A

$1.49

20

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

20

SCREW, PAN (6X28)

93500-06028-0A

$1.49

21

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

21

SCREW, PAN (6X40)

93500-06040-0A

$1.49

22

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

22

SCREW, PAN (6X50)

93500-06050-0A

$1.49

23

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

23

SCREW, PAN (6X80)

93500-06080-0A

$1.49

24

SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)

93500-06090

Unavailable

25

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

25

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
