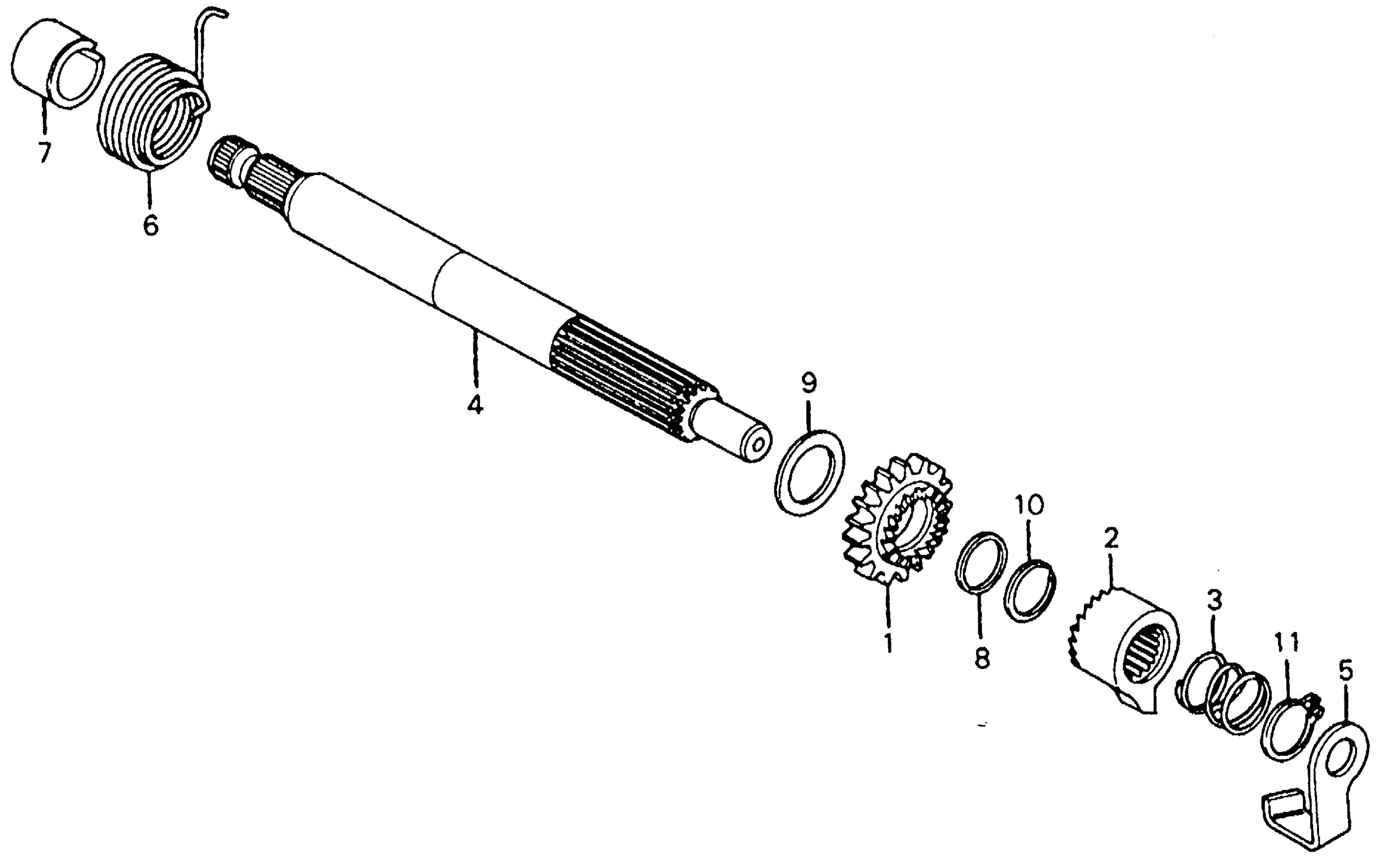

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 KICK STARTER SPINDLE Diagram

#

Description

Price

1

PINION, KICK STARTER (NOT AVAILABLE)

28211-402-000

Unavailable

2

RATCHET, STARTER DRIVE (NOT AVAILABLE)

28221-402-010

Unavailable

3

SPRING, RATCHET

28223-149-000

Unavailable

4

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-402-010

Unavailable

5

PLATE, RATCHET GUIDE

28259-399-000

Unavailable

6

SPRING, KICK STARTER (CHUO HATSUJO) This part replaces 28281-149-000.

28281-149-003

$9.43

6

SPRING, KICK STARTER (CHUO HATSUJO)

28281-149-003

$9.43

7

COLLAR, KICK STARTER (NOT AVAILABLE)

28282-402-000

Unavailable

8

WASHER (18MM)

90401-149-000

$2.28

9

WASHER, THRUST (18MM)

90452-701-000

$2.13

10

CIRCLIP (OUTER) (18MM)

90601-149-000

$2.09

11

CIRCLIP (OUTER) (18MM)

94510-18000

$1.19
