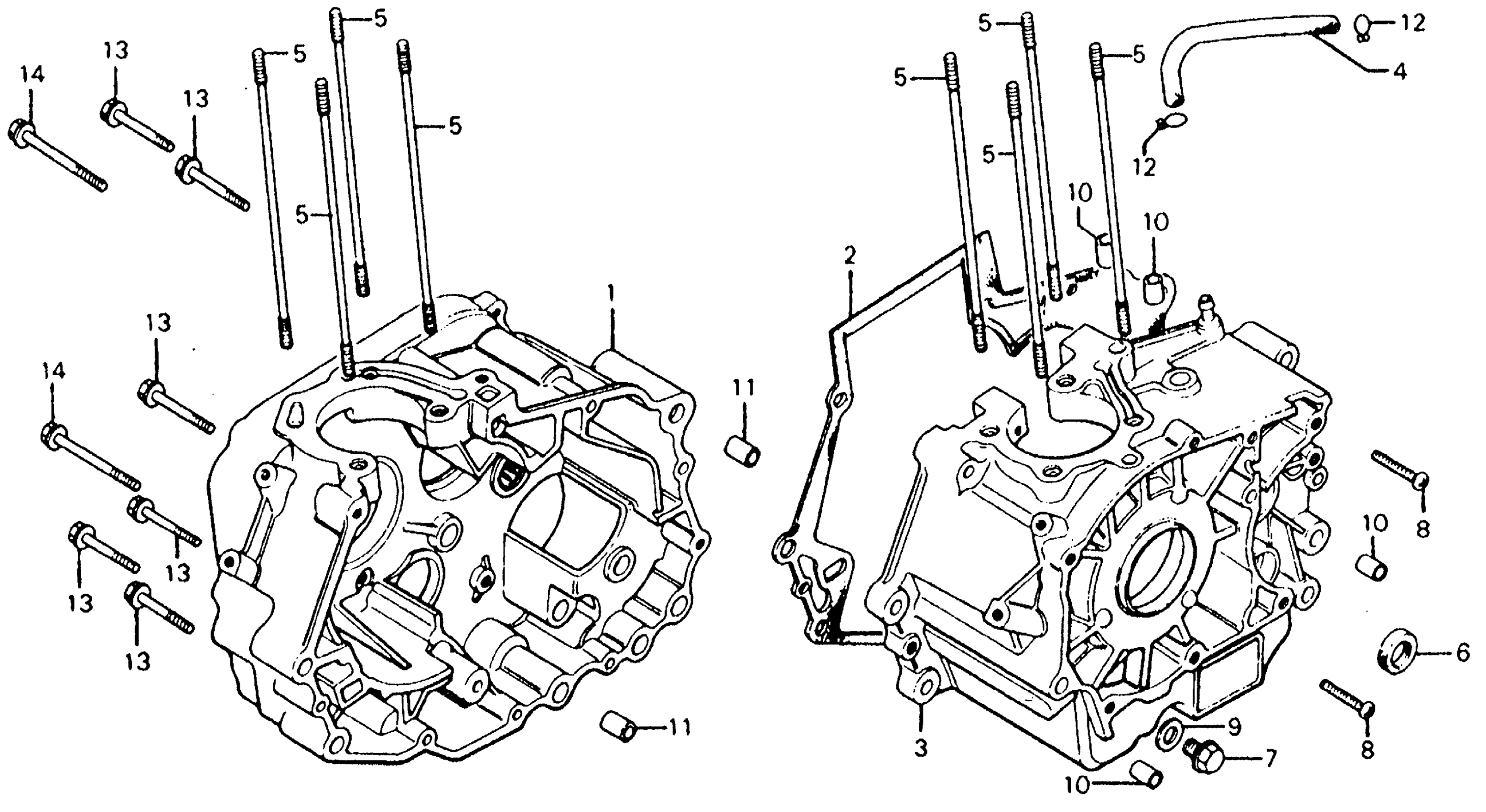

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-418-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KBG-771.

11191-KBG-773

$21.32

2

GASKET, CRANKCASE This part replaces 11191-KB4-670.

11191-KBG-773

$21.32

2

GASKET, CRANKCASE This part replaces 11191-399-000.

11191-KBG-773

$21.32

2

GASKET, CRANKCASE This part replaces 11191-399-306.

11191-KBG-773

$21.32

3

CRANKCASE, L. (NOT AVAILABLE)

11200-418-000

Unavailable

4

TUBE, BREATHER (NOT AVAILABLE)

15761-419-000

Unavailable

5

BOLT, CYLINDER STUD (NOT AVAILABLE) This part replaces 90031-399-000.

90031-464-000

Unavailable

6

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$3.77

6

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$3.77

6

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$3.77

7

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

8

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.29

8

SCREW, PAN (6X40)

93500-06040-0A

$1.29

9

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

10

PIN A, DOWEL (8X14)

94301-08140

$2.04

11

PIN A, DOWEL (12X20)

94301-12200

$2.25

12

CLIP, TUBE (B12)

95002-02120

Unavailable

13

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.71

13

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

14

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.38

14

BOLT, FLANGE (6X65)

95701-06065-00

$1.38
