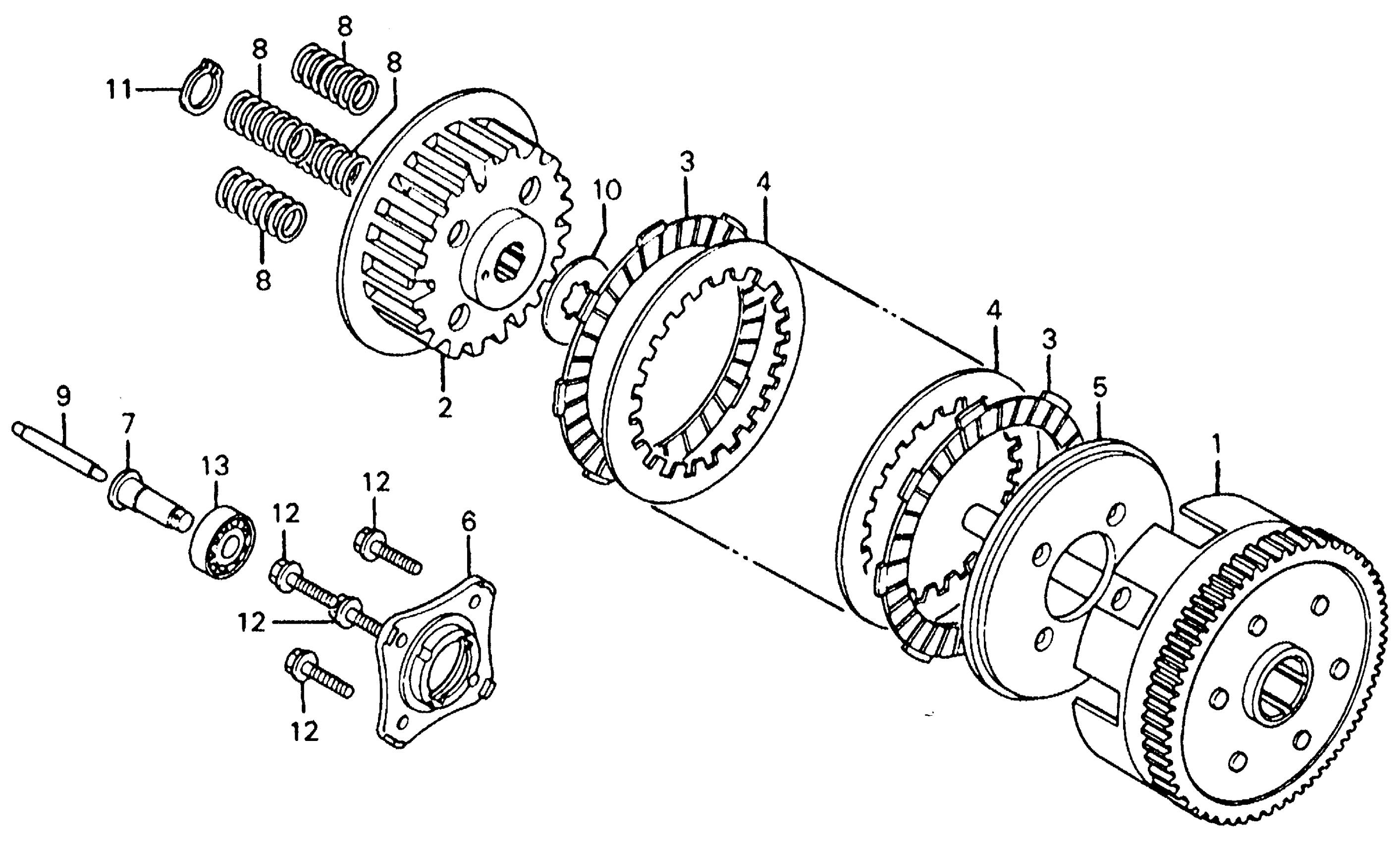

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-399-000

Unavailable

2

CENTER, CLUTCH

22121-KCS-650

$34.94

2

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$34.94

2

CENTER, CLUTCH

22121-399-000

Unavailable

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION

22201-166-000

$15.68

4

PLATE, CLUTCH

22311-KN4-680

$5.88

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$5.88

5

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$27.75

5

PLATE, CLUTCH PRESSURE

22350-107-010

$27.75

6

PLATE, CLUTCH LIFTER

22361-107-000

$15.76

7

PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)

22366-399-000

Unavailable

8

SPRING, CLUTCH

22401-356-000

Unavailable

8

SPRING, CLUTCH This part replaces 22401-418-000.

22401-356-000

Unavailable

9

ROD, CLUTCH LIFTER

22850-355-000

Unavailable

10

WASHER B, SPLINE (20MM)

90461-107-000

$4.38

11

CIRCLIP (OUTER) (20MM)

94510-20000

$1.20

12

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

12

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

13

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$7.14

13

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
