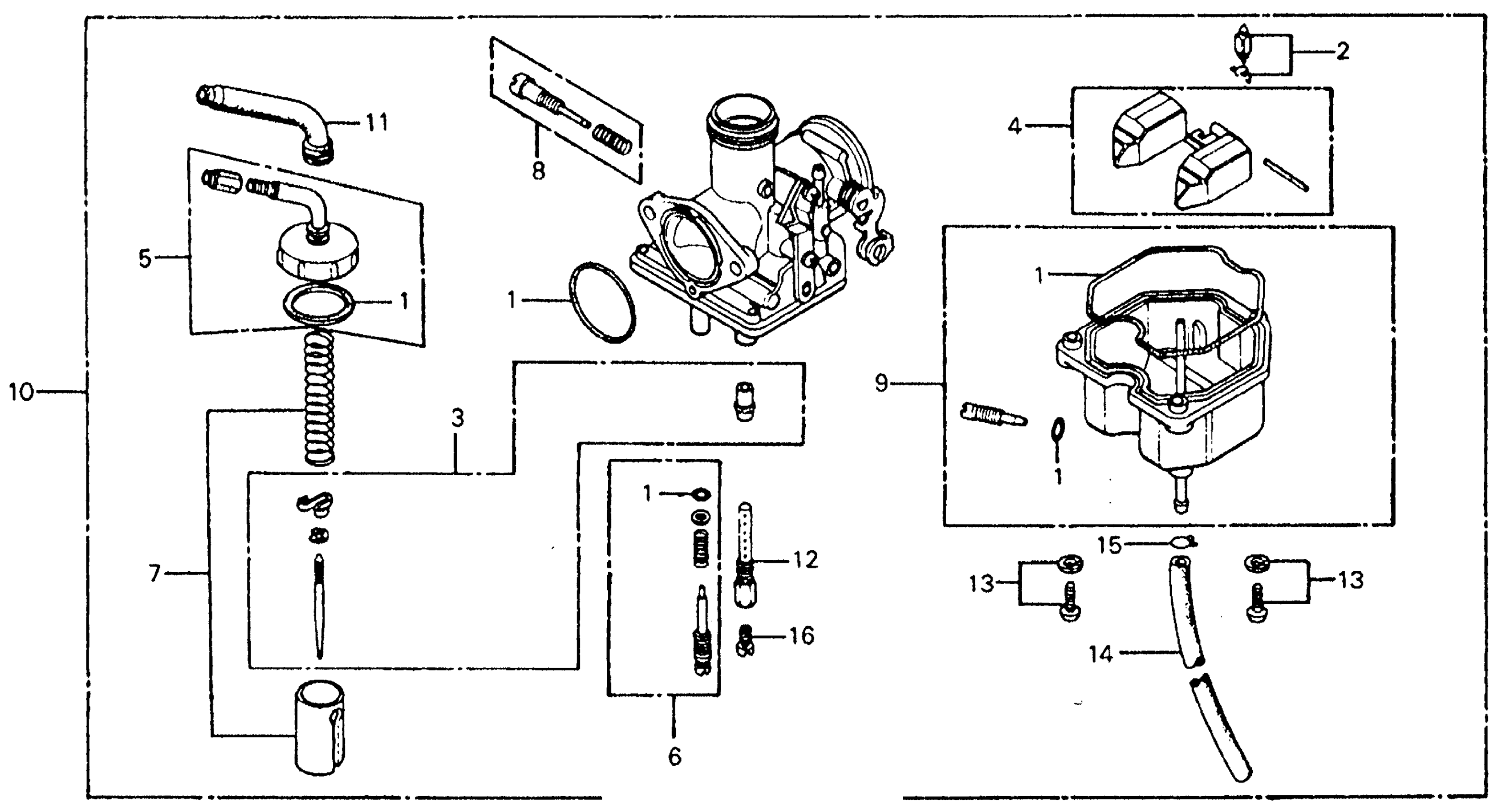

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$21.05

1

GASKET SET

16010-439-305

$21.05

2

VALVE SET, FLOAT This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-393-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-419-004

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET This part replaces 16014-418-004.

16014-943-801

Unavailable

5

TOP SET

16014-943-801

Unavailable

5

TOP SET This part replaces 16014-418-014.

16014-943-801

Unavailable

5

TOP SET

16014-464-004

Unavailable

5

TOP SET This part replaces 16014-943-003.

16014-943-801

Unavailable

6

SCREW SET A

16016-410-601

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-418-004.

16022-437-722

Unavailable

7

VALVE SET, THROTTLE

16022-437-722

Unavailable

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

9

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

9

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

9

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-419-034

Unavailable

11

CAP, RUBBER

16118-418-004

Unavailable

12

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-419-004

Unavailable

13

SCREW-WASHER (4X16)

93892-04016-08

$1.49

14

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

15

CLIP, TUBE (B7)

95002-02070

$1.80

16

JET, MAIN (#105)

99101-GHB-1050

$6.40

16

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40
