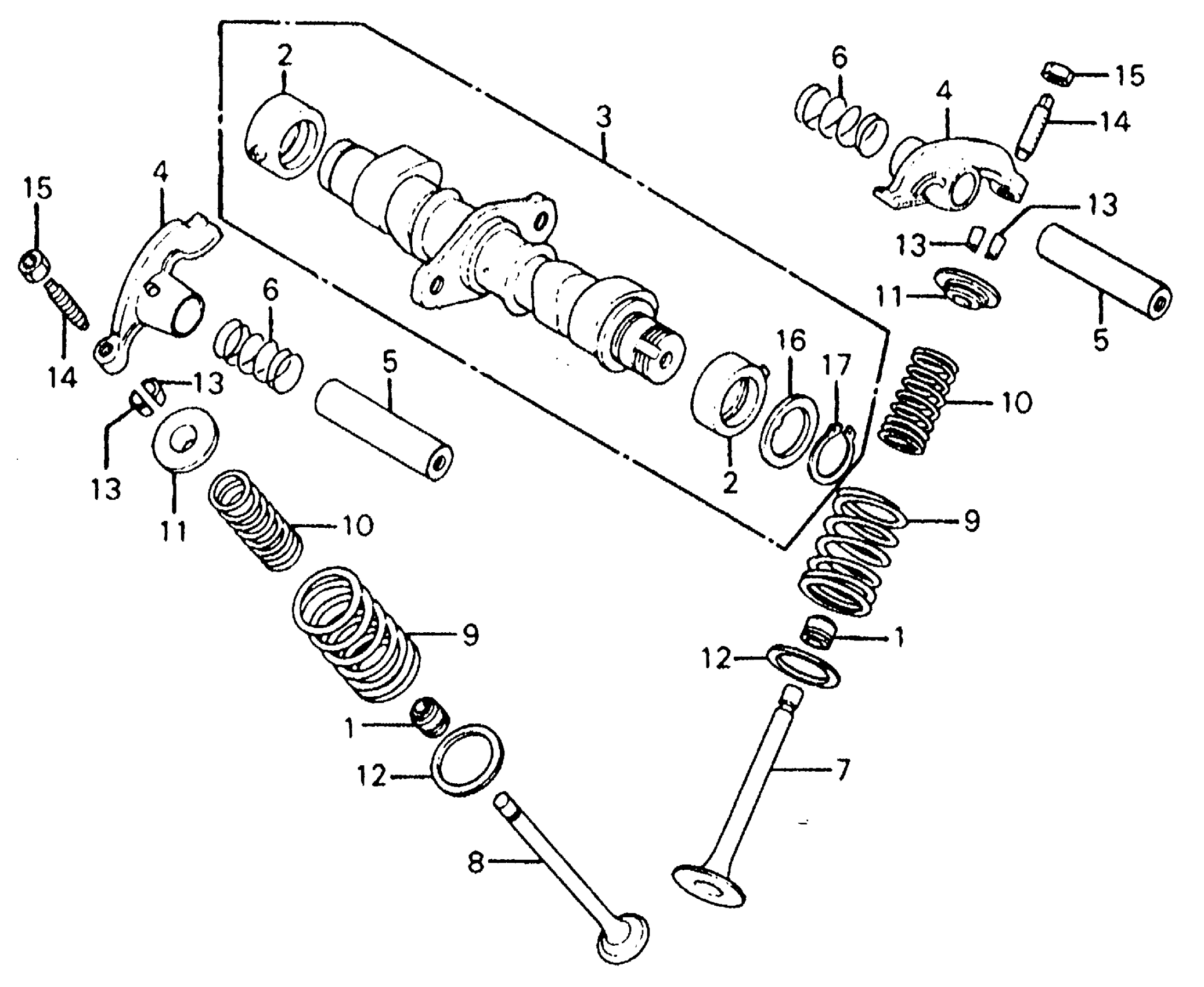

Honda CM185TA (79) TWINSTAR, JPN, VIN# CM185T-2100011 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$11.37

2

BUSH, CAMSHAFT

12234-399-010

$37.34

3

CAMSHAFT (NOT AVAILABLE)

14100-419-305

Unavailable

4

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$41.58

4

ARM, VALVE ROCKER

14431-116-010

$41.58

5

SHAFT, VALVE ROCKER ARM

14451-399-000

$15.36

6

SPRING, ROCKER ARM SIDE

14461-KC2-680

$3.85

6

SPRING, ROCKER ARM SIDE This part replaces 14461-399-000.

14461-KC2-680

$3.85

7

VALVE, IN.

14711-399-000

Unavailable

8

VALVE, EX. This part replaces 14721-116-000.

14721-176-000

$77.90

8

VALVE, EX.

14721-176-000

$77.90

9

SPRING, VALVE (OUTER) (NIPPON HATSUJO) (NOT AVAILABLE)

14751-399-005

Unavailable

10

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-399-005

$8.93

11

RETAINER, VALVE SPRING

14771-107-020

$7.99

12

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

13

COTTER, VALVE (SANKO)

14781-107-003

$2.55

13

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

14

SCREW, TAPPET ADJ.

90012-333-000

$2.75

15

NUT, TAPPET ADJ.

90206-001-000

$1.66

16

WASHER (20MM)

90402-399-000

$4.00

17

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49
