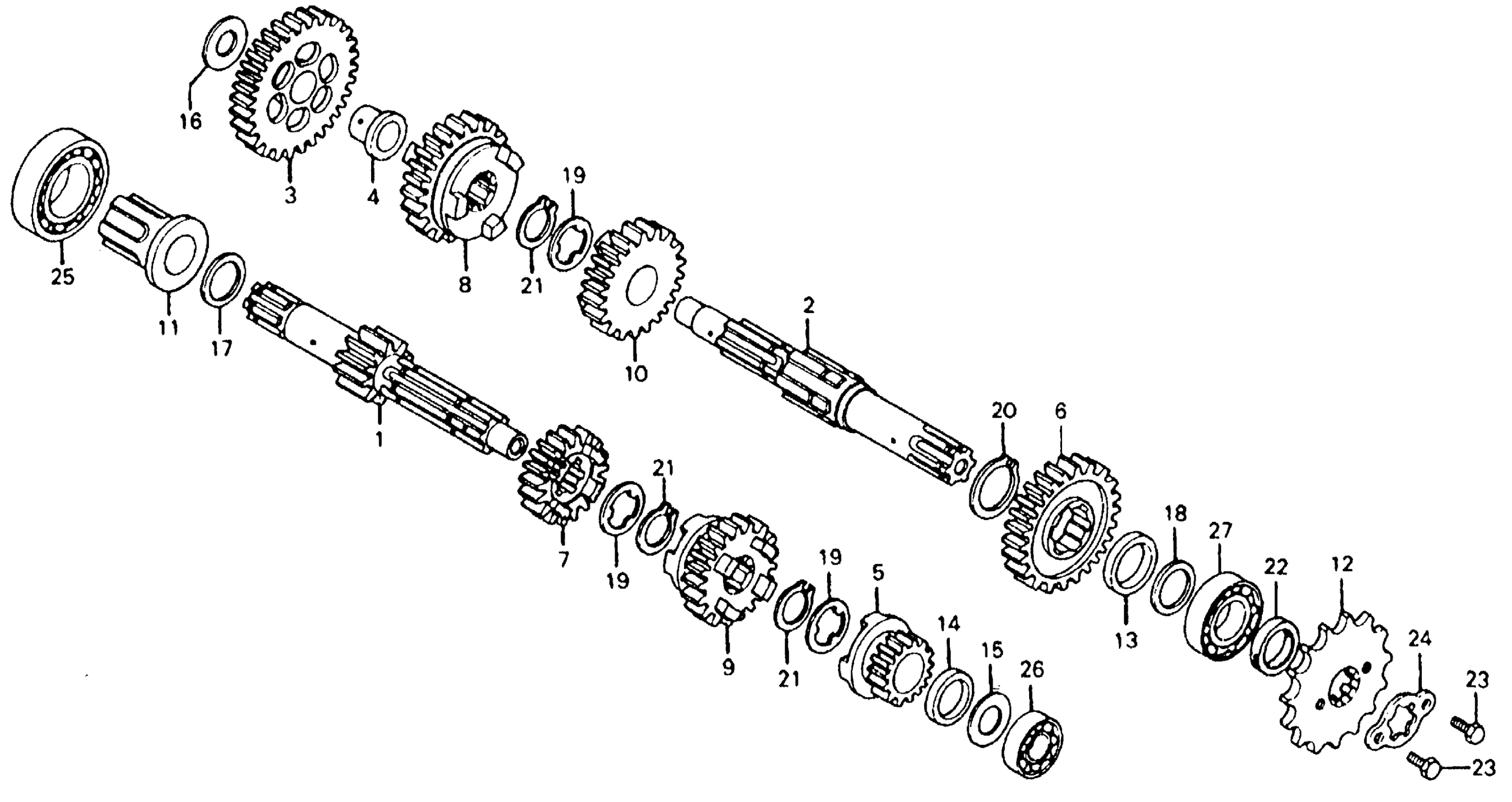

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23211-402-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-402-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23426-402-010

Unavailable

4

BUSH (16.5MM)

23427-402-010

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-397-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

23451-397-000

Unavailable

7

GEAR, MAINSHAFT THIRD (22T)

23461-KCS-650

Unavailable

7

GEAR, MAINSHAFT THIRD (22T) This part replaces 23461-397-000.

23461-KCS-650

Unavailable

7

GEAR, MAINSHAFT THIRD (22T) This part replaces 23461-397-010.

23461-KCS-650

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T)

23471-KCS-650

$69.38

8

GEAR, COUNTERSHAFT THIRD (28T) This part replaces 23471-397-000.

23471-KCS-650

$69.38

8

GEAR, COUNTERSHAFT THIRD (28T) This part replaces 23471-397-010.

23471-KCS-650

$69.38

9

GEAR, MAINSHAFT FOURTH (25T)

23481-402-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (25T)

23491-KCS-650

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (25T) This part replaces 23491-397-000.

23491-KCS-650

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (25T) This part replaces 23491-419-000.

23491-KCS-650

Unavailable

11

COLLAR, MAINSHAFT LOW GEAR SIDE (NOT AVAILABLE)

23520-402-000

Unavailable

12

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

12

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

12

SPROCKET, DRIVE (15T) This part replaces 23801-330-000.

23801-KC6-000

Unavailable

13

COLLAR A, GEAR (NOT AVAILABLE)

23911-397-000

Unavailable

14

COLLAR B, GEAR (NOT AVAILABLE)

23912-397-000

Unavailable

15

WASHER, THRUST (15MM)

90451-107-000

$1.49

16

WASHER, THRUST (15MM)

90451-365-000

$3.08

17

WASHER A, THRUST (20MM)

90453-107-000

$2.25

18

WASHER, THRUST (20MM)

90454-107-000

$1.80

19

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

20

CIRCLIP (25MM)

90601-107-000

$3.74

21

SET-RING (20MM)

90605-200-000

$2.92

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

22

OIL SEAL (20X34X7)

91201-030-015

Unavailable

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

23

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

24

PLATE B, FIXING

95014-92100

$1.49

25

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

25

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

26

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

26

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable

27

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
