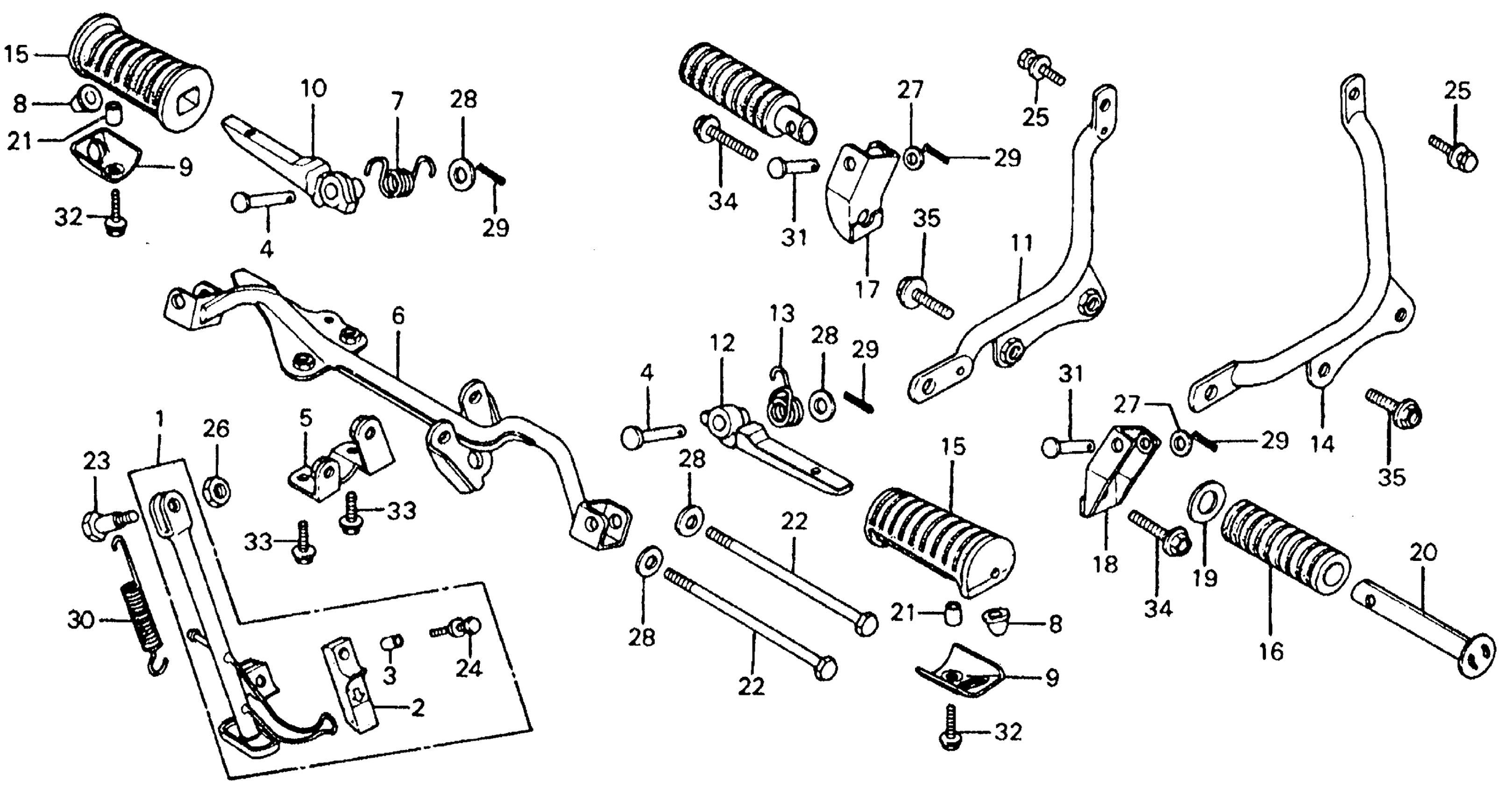

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 STEP + STAND Diagram

#

Description
Price

1

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-419-670

Unavailable

2

RUBBER, STAND

50548-356-700

$10.50

3

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

4

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

4

PIN, STEP BAR JOINT

50603-033-010

$3.30

5

STAY, STEP HANGER *NH1* (BLACK) (NOT AVAILABLE)

50612-402-000ZA

Unavailable

6

BAR, STEP (NOT AVAILABLE)

50615-419-670

Unavailable

7

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

7

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

8

SLIDER, FOOTPEG (NOT AVAILABLE) | Use up to Frame SN 2051354 This part replaces 50618-405-000.

50618-431-670

Unavailable

8

SLIDER, FOOTPEG (NOT AVAILABLE)

50618-431-670

Unavailable

9

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-405-000.

50619-MB9-000

Unavailable

10

ARM, R. STEP

50632-405-000

$43.11

11

PIPE, R. PILLION STEP *NH1* (BLACK) (NOT AVAILABLE)

50636-419-000ZA

Unavailable

12

ARM, L. STEP (NOT AVAILABLE)

50642-405-000

Unavailable

13

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

13

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

14

PIPE, L. PILLION STEP *NH1* (BLACK) (NOT AVAILABLE)

50646-419-000ZA

Unavailable

15

RUBBER, STEP

50661-405-000

Unavailable

16

RUBBER, PILLION FOOTPEG

50710-405-000

Unavailable

17

BRACKET, R. PILLION STEP (NOT AVAILABLE)

50711-399-010

Unavailable

18

BRACKET, L. PILLION STEP (NOT AVAILABLE)

50712-399-010

Unavailable

19

WASHER, PILLION FOOTPEG

50712-405-000

$3.26

20

BAR, PILLION FOOTPEG

50715-405-000

$27.17

21

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

22

BOLT, HEX. (8X132)

90085-292-000

$7.16

23

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

24

BOLT-WASHER (6X28)

93401-06028-00

$1.49

24

BOLT-WASHER (6X28) This part replaces 93481-06028-00.

93401-06028-00

$1.49

25

BOLT-WASHER (8X20) This part replaces 93481-08020-00.

93401-08020-00

$1.49

26

NUT, HEX. (10MM)

94030-10000

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

SPRING A, SIDE STAND | Use up to Frame SN 2051300

95014-72102

$2.84

30

SPRING D, SIDE STAND | Use from Frame SN 2051301

95014-72402

$2.92

31

PIN B, PILLION FOOTPEG

95015-82000

$2.41

32

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

32

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

33

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

33

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

34

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

34

BOLT, FLANGE (10X20)

95701-10020-00

$2.23

35

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

35

BOLT, FLANGE (10X25)

95701-10025-00

$2.19
