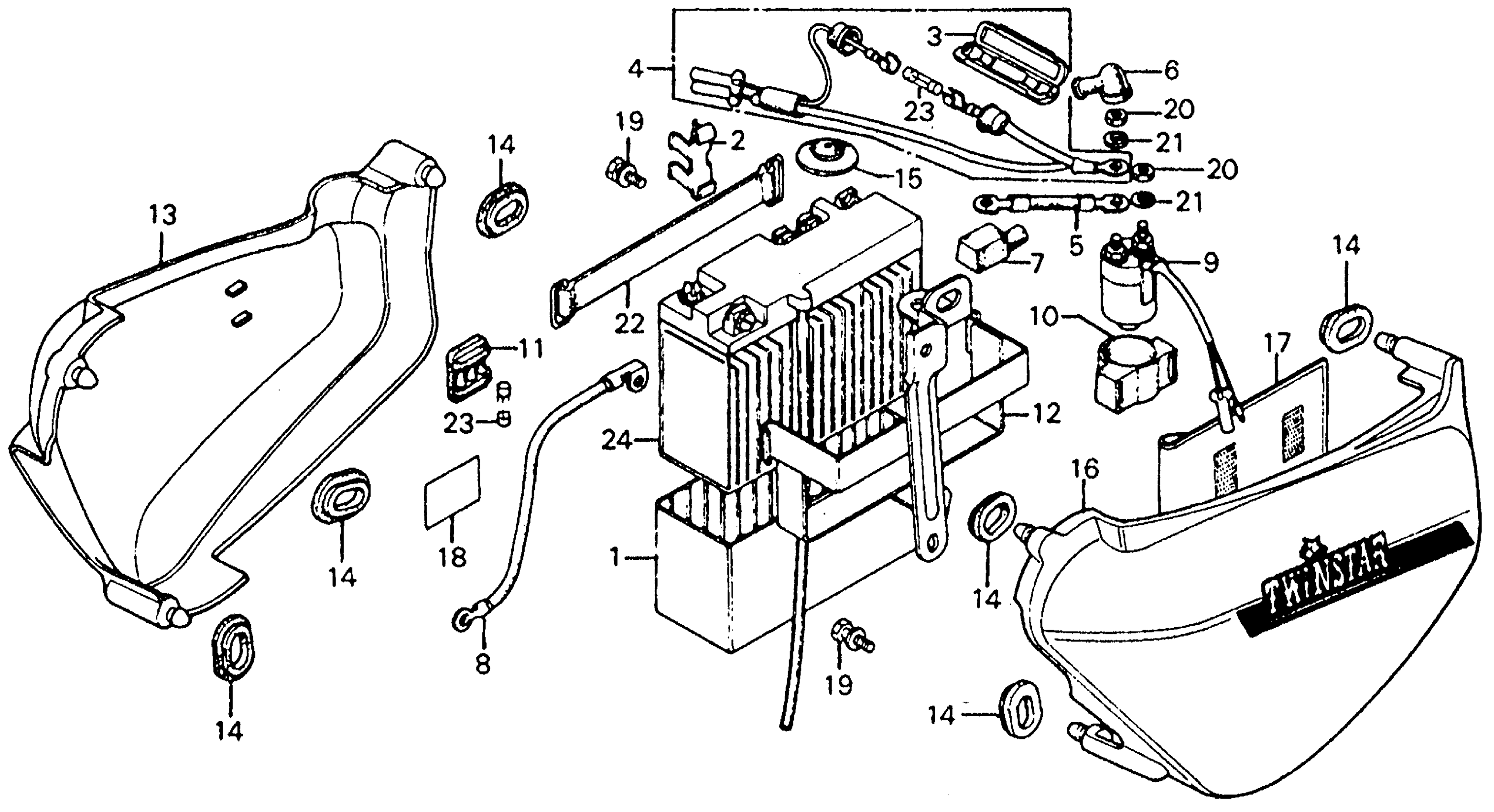

Honda CM185TA (78) TWINSTAR, JPN, VIN# CM185T-2000014 SIDE COVER + BATTERY Diagram

#

Description
Price

1

BOX, BATTERY MOUNT (NOT AVAILABLE)

31511-402-000

Unavailable

2

HOLDER, FUSE

32113-361-000

Unavailable

3

CASE, FUSE (20A) (NOT AVAILABLE)

32120-402-000

Unavailable

4

SUB-WIRE HARNESS, MAGNETIC SWITCH (NOT AVAILABLE)

32211-402-000

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-303-000.

32401-319-010

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-319-000.

32401-319-010

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-319-010

Unavailable

6

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

6

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

7

COVER, BATTERY (NOT AVAILABLE)

32412-402-000

Unavailable

8

CABLE, BATTERY GROUND

32601-402-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-402-007

Unavailable

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

11

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

12

BOX, BATTERY (NOT AVAILABLE)

50325-402-000

Unavailable

13

COVER ASSY., R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83540-419-305ZA

Unavailable

13

COVER ASSY., R. SIDE *PB7C* (CANDY SWORD BLUE) (NOT AVAILABLE)

83540-419-305ZB

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

15

RUBBER, BATTERY BOX

83618-323-000

$2.47

16

COVER ASSY., L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83640-419-305ZA

Unavailable

16

COVER ASSY., L. SIDE *PB7C* (CANDY SWORD BLUE) (NOT AVAILABLE)

83640-419-305ZB

Unavailable

17

BAG, OWNER'S MANUAL

83642-355-000

$26.87

18

MARK, BATTERY CAUTION

87506-419-670

Unavailable

19

BOLT-WASHER (6X12)

93401-06012-00

$1.55

19

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

19

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

20

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

20

NUT, HEX. (6MM)

94002-06080-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

21

WASHER, SPRING (6MM)

94111-06800

$1.49

22

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

22

BAND F, BATTERY This part replaces 95012-17000.

95012-17001

$7.23

22

BAND F, BATTERY

95012-17001

$7.23

23

FUSE A (20A)

98200-12000

$1.49

24

BATTERY (6N12A-2D) This part replaces 31500-402-405.

31500-402-505

Unavailable

24

BATTERY (6N12A-2D)

31500-402-505

Unavailable

24

BATTERY (6N12A-2D) This part replaces 98203-65240.

31500-402-505

Unavailable
